Needle Roller And Cage Assemblies K15X20X13

Needle Roller And Cage Assemblies K15X20X13

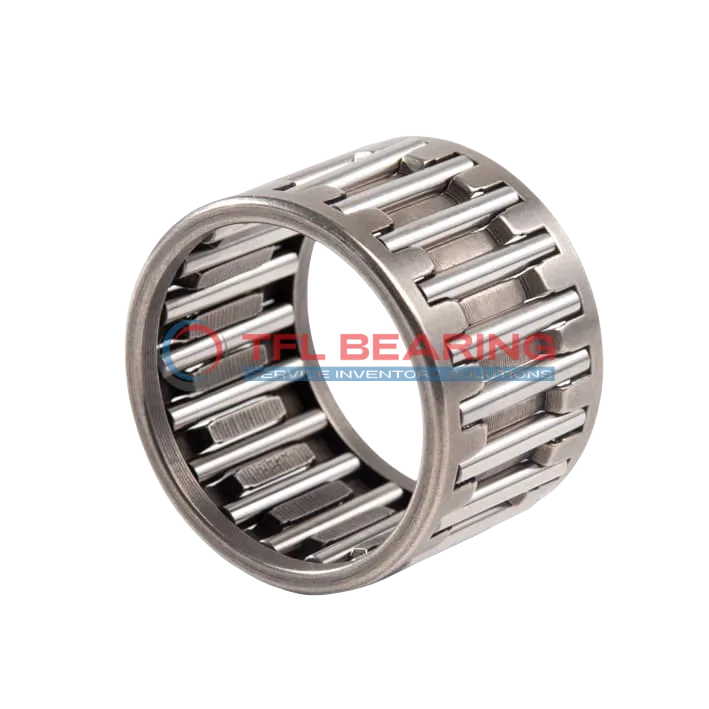

The K15X20X13 is a compact needle roller and cage assembly with a 15mm bore and 20mm outer diameter, crafted from sturdy steel. It handles radial loads up to 2228 lbf and spins smoothly at speeds up to 23900 RPM.
Its single-row design with a steel cage ensures durability and efficient load distribution. The lightweight construction, at just 7g, makes it easy to handle and install.
This assembly is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like gearboxes, transmissions, or small machinery where space is limited but performance is key.
Operating in temperatures from -30°C to 110°C, it’s versatile for various environments. Compliant with RoHS standards, it’s a safe and practical choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K15X20X13
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 15 mm
  • Outer Dia 20 mm
  • Width 13 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2228 lbf
  • Static Radial Load 2588 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 23900 rpm
  • Weight 7 g

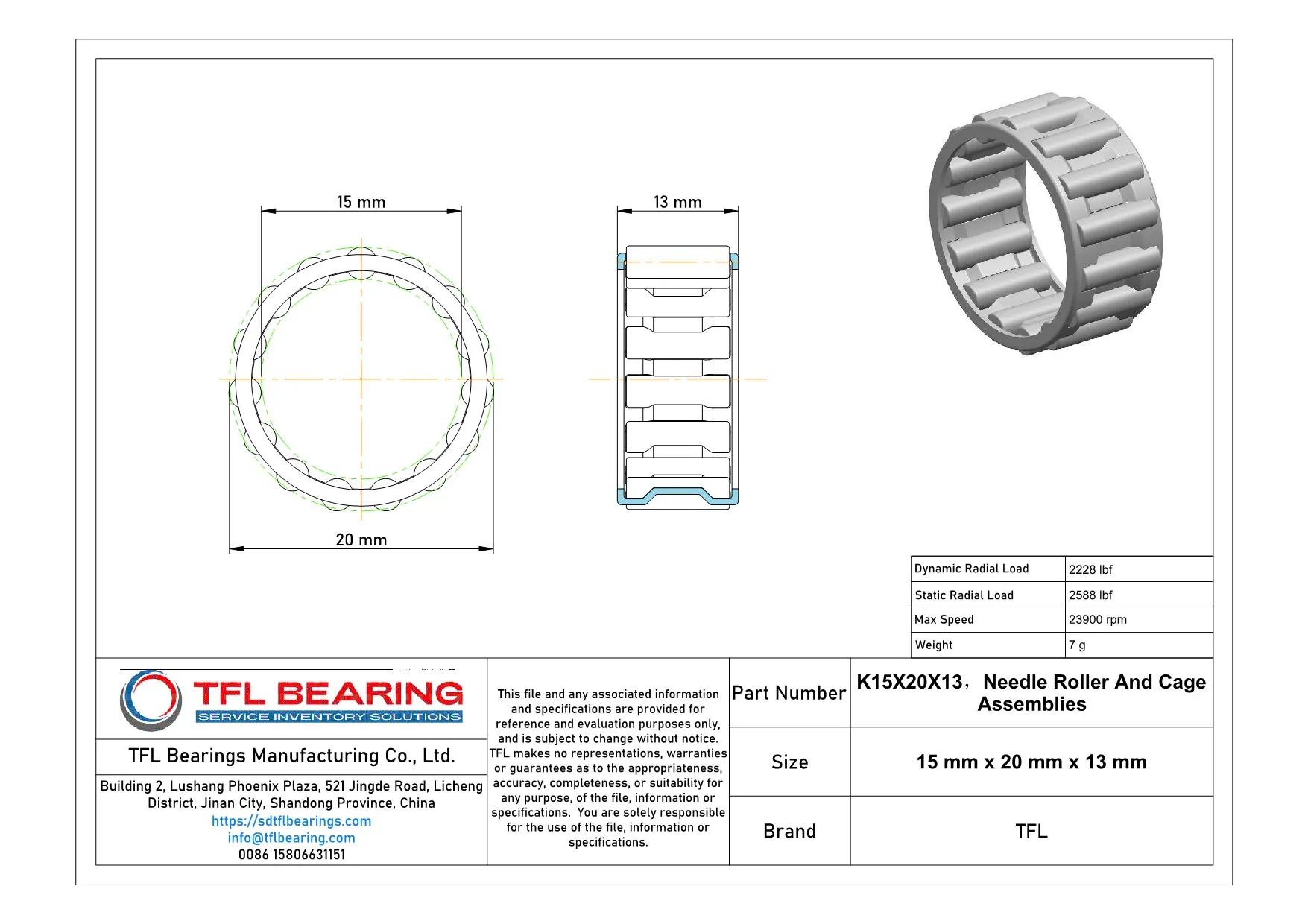

Needle Roller And Cage Assemblies K15X20X13 dimension drawing
Download DWG Download PDF

Features

Why Choose K15X20X13 Bearing for Precision Tasks?
K15X20X13 Bearing features a steel cage and needles, ensuring precise alignment and smooth operation.
Its dynamic radial load capacity of 2228 lbf makes it suitable for high-performance applications.
The compact design with a width of 13 mm allows for easy integration into tight spaces.
With a maximum speed of 23,900 rpm, it delivers reliable performance in high-speed scenarios.
K15X20X13 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its lightweight construction at just 7 grams reduces overall system weight without compromising durability.

Application

Key Fields for K15X20X13 Bearing
K15X20X13 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K15X20X13 Bearing fits well in transmission systems and steering mechanisms, providing smooth operation at high speeds. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K15X20X13 Bearing supports precise movements in robotic arms and conveyor belts. The high-speed capability ensures reliable performance in continuous operation.
Medical devices like surgical tools benefit from K15X20X13 Bearing’s precision and low weight. Its steel needles and cage offer consistent performance in critical applications.
In consumer electronics, K15X20X13 Bearing is found in printers and small motors, where its compact size and efficiency are key advantages. The lightweight design also helps reduce overall device weight.
