Needle Roller And Cage Assemblies K15X18X17-TV

Needle Roller And Cage Assemblies K15X18X17-TV

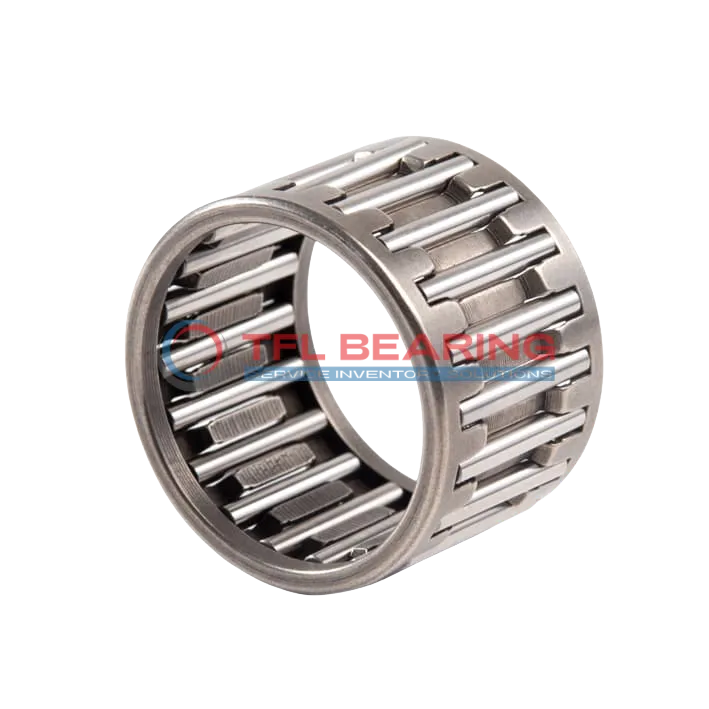

The K15X18X17-TV is a compact needle roller and cage assembly with a 15mm bore and 18mm outer diameter, made from sturdy steel needles and a durable PA66 cage. It handles radial loads up to 1800 lbf and spins smoothly at speeds up to 24600 RPM.
Its single-row design ensures easy installation and reliable performance in tight spaces. The lightweight construction, at just 4.6g, makes it ideal for applications where weight matters.
This assembly is interchangeable with INA bearings, offering a practical replacement option. Suitable for use in gearboxes, small engines, or industrial machinery where high-speed rotation is needed.
It operates well in temperatures from -30°C to 110°C and meets RoHS standards for safety and environmental compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K15X18X17-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 15 mm
  • Outer Dia 18 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 1800 lbf
  • Static Radial Load 2722 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 24600 rpm
  • Weight 4.6 g
Needle Roller And Cage Assemblies K15X18X17-TV dimension drawing
Download DWG Download PDF

Features

How Does K15X18X17-TV Bearing Achieve High-Speed Performance?
K15X18X17-TV Bearing features a lightweight PA66 cage, reducing inertia for smoother high-speed operation.
Its steel needle rollers provide strong radial load capacity, handling up to 1800 lbf dynamic loads.
The compact design ensures efficient space usage while maintaining durability in demanding conditions.
With a maximum speed of 24,600 rpm, it suits applications requiring precision and reliability.
K15X18X17-TV Bearing operates within a wide temperature range, from -30° to 110°C.
Its compliant materials meet RoHS standards, ensuring environmental safety.

Application

Industrial Uses of K15X18X17-TV Bearing
K15X18X17-TV Bearing is commonly used in compact industrial gearboxes, where its needle roller design provides efficient load distribution. The PA66 cage ensures smooth operation even at high speeds.
Where Is K15X18X17-TV Bearing Used?
In automotive transmissions, K15X18X17-TV Bearing handles radial loads with ease, thanks to its steel needle rollers. Its lightweight design also helps reduce overall vehicle weight.
Perfect Fit for Automation: K15X18X17-TV Bearing
K15X18X17-TV Bearing works well in robotic arms, offering precise movement and durability. The metric sizing makes it easy to integrate into various automated systems.
Medical vs Industrial: Where K15X18X17-TV Bearing Excels
While K15X18X17-TV Bearing is versatile, it shines in industrial pumps due to its high-speed capability. The temperature range also makes it suitable for demanding environments.
