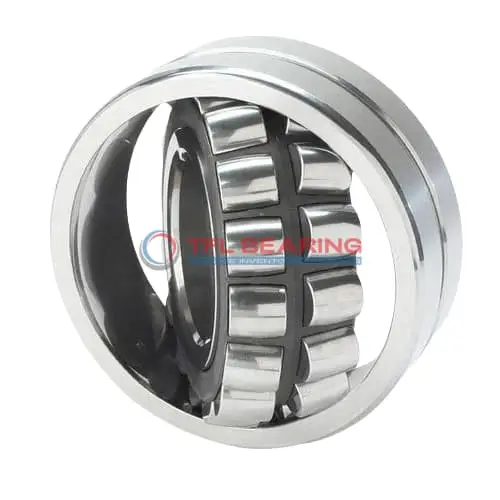

23024-2RS5/VT143 Double Row Spherical Roller Bearing

23024-2RS5/VT143 Double Row Spherical Roller Bearing

The 23024-2RS5/VT143 is a double-row spherical roller bearing with a 120mm bore and 180mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 82505 lbf and operates smoothly at speeds up to 1400 RPM.

Its double-seal design keeps contaminants out while retaining lubrication, ideal for dusty or wet environments. The steel cage ensures durability, and the spherical rollers accommodate slight misalignments.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads and misalignment are common. It works in temperatures from -30°C to 200°C.

Weighing 4.2kg, it’s built for long service life with proper lubrication. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23024-2RS5/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 180 x 46 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 46 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 132 mm
  • Shoulder/Recess Dia Of Outer Ring 168 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 82505 lbf
  • Static Radial Load 112404 lbf
  • Max Speed 1400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 4.2 kg
  • Price （US$） US$163.71

Features

How Does 23024-2RS5/VT143 Bearing Handle Combined Loads?

23024-2RS5/VT143 Bearing features a double-row spherical roller design, ideal for handling both radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 82505 lbf.
The double-sealed design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 1400 rpm, it offers reliable performance in demanding applications.

What Makes 23024-2RS5/VT143 Bearing Suitable for High-Temperature Applications?

23024-2RS5/VT143 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its chrome steel rollers and rings maintain structural integrity under thermal stress.
The steel cage ensures stable roller alignment, even in extreme conditions.
This design makes it a dependable choice for high-temperature industrial applications.

Engineered for Precision: 23024-2RS5/VT143 Bearing

23024-2RS5/VT143 Bearing is crafted with precise tolerances, ensuring smooth and accurate operation.
The double-sealed construction keeps lubrication in and contaminants out, enhancing performance.
Its spherical roller design accommodates misalignment, reducing wear and tear.
With a static radial load capacity of 112404 lbf, it excels in heavy-duty applications.

Steel vs Ceramic Bearings: Strengths of 23024-2RS5/VT143 Bearing

23024-2RS5/VT143 Bearing uses chrome steel for both rollers and rings, offering excellent strength and durability.
The steel cage provides reliable support, ensuring consistent performance under heavy loads.
Unlike ceramic bearings, it is more cost-effective while maintaining high performance.
Its double-sealed design further enhances longevity in challenging environments.

Application

Industrial Uses of 23024-2RS5/VT143 Bearing
23024-2RS5/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The double seals help keep contaminants out, extending service life in harsh environments.

In automotive applications, 23024-2RS5/VT143 Bearing supports large components such as truck axles, providing reliable performance under heavy radial loads. Its chrome steel construction ensures durability even in high-stress conditions.

For wind turbines, 23024-2RS5/VT143 Bearing’s spherical roller design accommodates misalignment, making it ideal for the dynamic loads encountered in rotor shafts. The wide temperature range also suits outdoor installations.

In mining equipment, 23024-2RS5/VT143 Bearing’s high dynamic load capacity makes it a dependable choice for conveyor systems. The lubrication groove ensures smooth operation even under continuous use.
