TS (Single Row Tapered Roller Bearings) (Imperial) 42350-42585

TS (Single Row Tapered Roller Bearings) (Imperial) 42350-42585

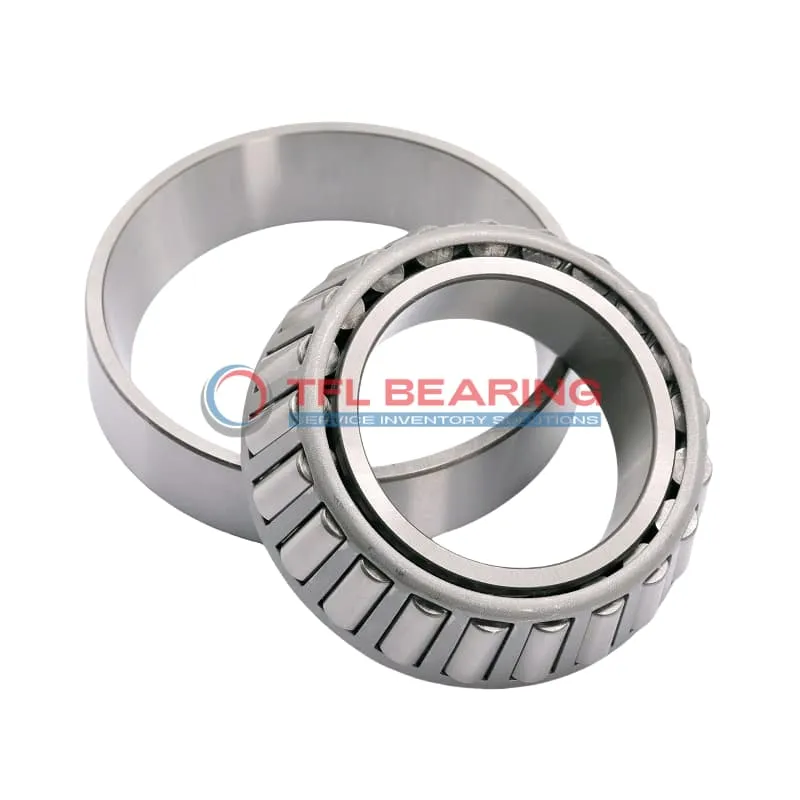

The 42350-42585 is a single-row tapered roller bearing with a 3.5″ bore and 5.8437″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 43400 lbf radially and 9480 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where robust performance is needed.

Weighing 4.3 lb, it’s built to last while maintaining precision. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 42350-42585
  • Brand TFL
  • Interchangeable Timken
  • Size 3.5" x 5.8437" x 1.1251"
  • Bore Dia 3.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.8437"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1406"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1251"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.56"
  • Cone Backface Backing Diameter 4.09"
  • Cup Frontface Backing Diameter 5.67"
  • Cup Backface Backing Diameter 5.24"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location 0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 42350
  • Cup Part Number 42585
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 42000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 43400 lbf
  • Static Radial Load 54300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9480 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.3 lb

Features

Performance Features of 42350-42585 Bearing

42350-42585 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 43400 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

42350-42585 Bearing’s standard radial clearance allows for smooth operation and easy installation.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 42350-42585 Bearing
This tapered roller bearing is commonly used in heavy machinery like construction equipment and mining drills, where its robust design handles combined radial and thrust loads effortlessly. The chrome steel construction ensures durability even in demanding environments.

Where Is 42350-42585 Bearing Used?
You’ll often find 42350-42585 Bearing in automotive axles and gearboxes, thanks to its precise inch sizing and reliable performance. Its open design simplifies lubrication, making maintenance straightforward for mechanics.

Built for Heavy-Duty Use: 42350-42585 Bearing
In agricultural machinery, 42350-42585 Bearing supports high loads in tractors and harvesters, where its tapered rollers distribute stress evenly. The steel cage adds extra strength for long-lasting operation.

Automotive vs Aerospace: Applications of 42350-42585 Bearing
While 42350-42585 Bearing excels in truck wheel hubs, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance across both industries.

Key Fields for 42350-42585 Bearing
Railway applications benefit from 42350-42585 Bearing’s ability to handle vibration and heavy loads. Its standard radial clearance options make it adaptable to various railcar designs.
