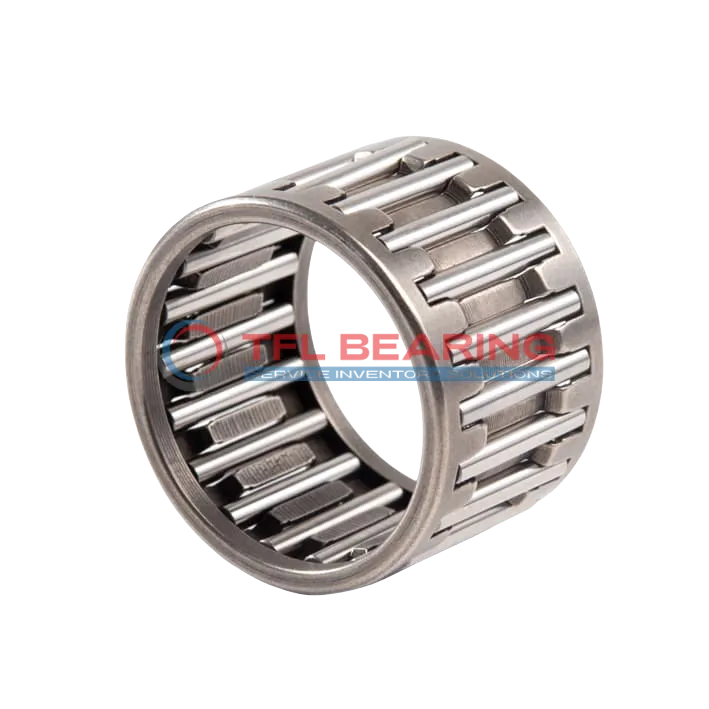

Needle Roller And Cage Assemblies K12X16X13-TV

Needle Roller And Cage Assemblies K12X16X13-TV

The K12X16X13-TV is a compact needle roller and cage assembly, measuring 12mm in bore, 16mm in outer diameter, and 13mm in width. Made from durable steel needles and a PA66 cage, it’s built to handle radial loads up to 1800 lbf.
This single-row design spins smoothly at speeds up to 26500 RPM, making it ideal for high-speed applications. Its lightweight construction, at just 3.6g, ensures minimal added bulk.
The assembly works reliably in temperatures from -30°C to 110°C and is RoHS compliant. Interchangeable with INA bearings, it’s a practical choice for replacements.
Perfect for use in gearboxes, transmissions, or small machinery where space is limited but performance is key. Its simple design allows for easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K12X16X13-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Outer Dia 16 mm
  • Width 13 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 1800 lbf
  • Static Radial Load 2115 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 26500 rpm
  • Weight 3.6 g

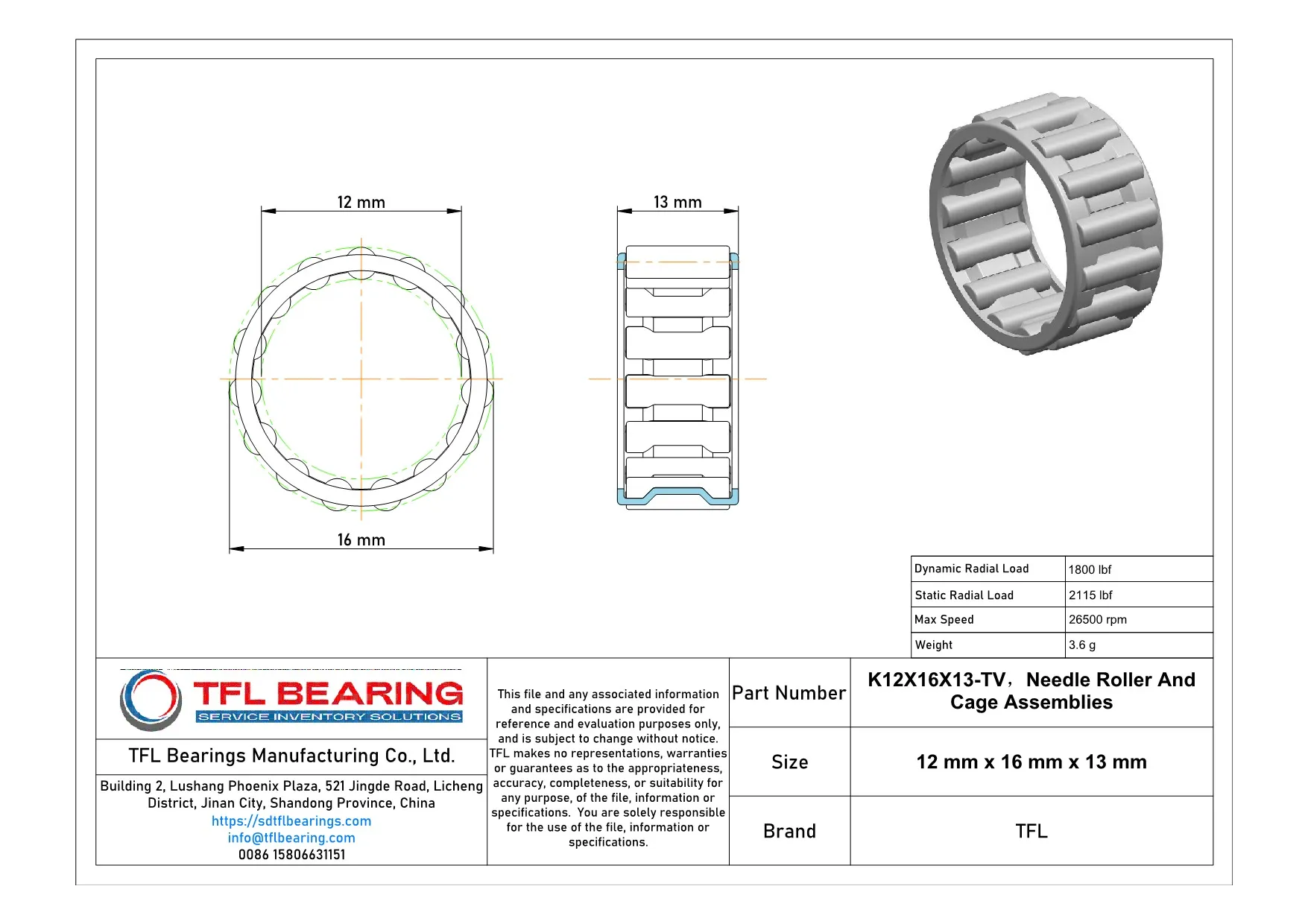

Needle Roller And Cage Assemblies K12X16X13-TV dimension drawing
Download DWG Download PDF

Features

How Does K12X16X13-TV Bearing Achieve High-Speed Performance?
K12X16X13-TV Bearing features a lightweight PA66 cage, ensuring smooth operation at speeds up to 26,500 rpm.
The steel needle rollers provide excellent radial load capacity, handling up to 1800 lbf dynamic load.
Its compact design with 12 mm bore and 16 mm outer diameter makes it ideal for space-constrained applications.
The temperature range of -30° to 110°C allows reliable performance in various environments.
With a static radial load capacity of 2115 lbf, K12X16X13-TV Bearing offers durability under heavy loads.
The single-row construction ensures stability and reduces friction during high-speed rotation.

Application

Key Fields for K12X16X13-TV Bearing
K12X16X13-TV Bearing is commonly used in automotive transmissions, where its compact design and high load capacity make it ideal for tight spaces. The steel needles ensure durability even under continuous operation.
In industrial machinery, K12X16X13-TV Bearing excels in applications like printing presses and textile equipment. Its PA66 cage provides smooth rotation and reduces friction, enhancing efficiency.
For small electric motors, K12X16X13-TV Bearing offers reliable performance due to its lightweight construction and high-speed capability. The metric dimensions make it easy to integrate into various motor designs.
What Makes K12X16X13-TV Bearing a Preferred Choice?
K12X16X13-TV Bearing is a go-to option for power tools, where its ability to handle radial loads ensures long-lasting performance. The temperature range also makes it suitable for demanding environments.
In medical devices like dental handpieces, K12X16X13-TV Bearing’s precision and smooth operation are key. Its compliance with RoHS standards ensures safety in sensitive applications.
