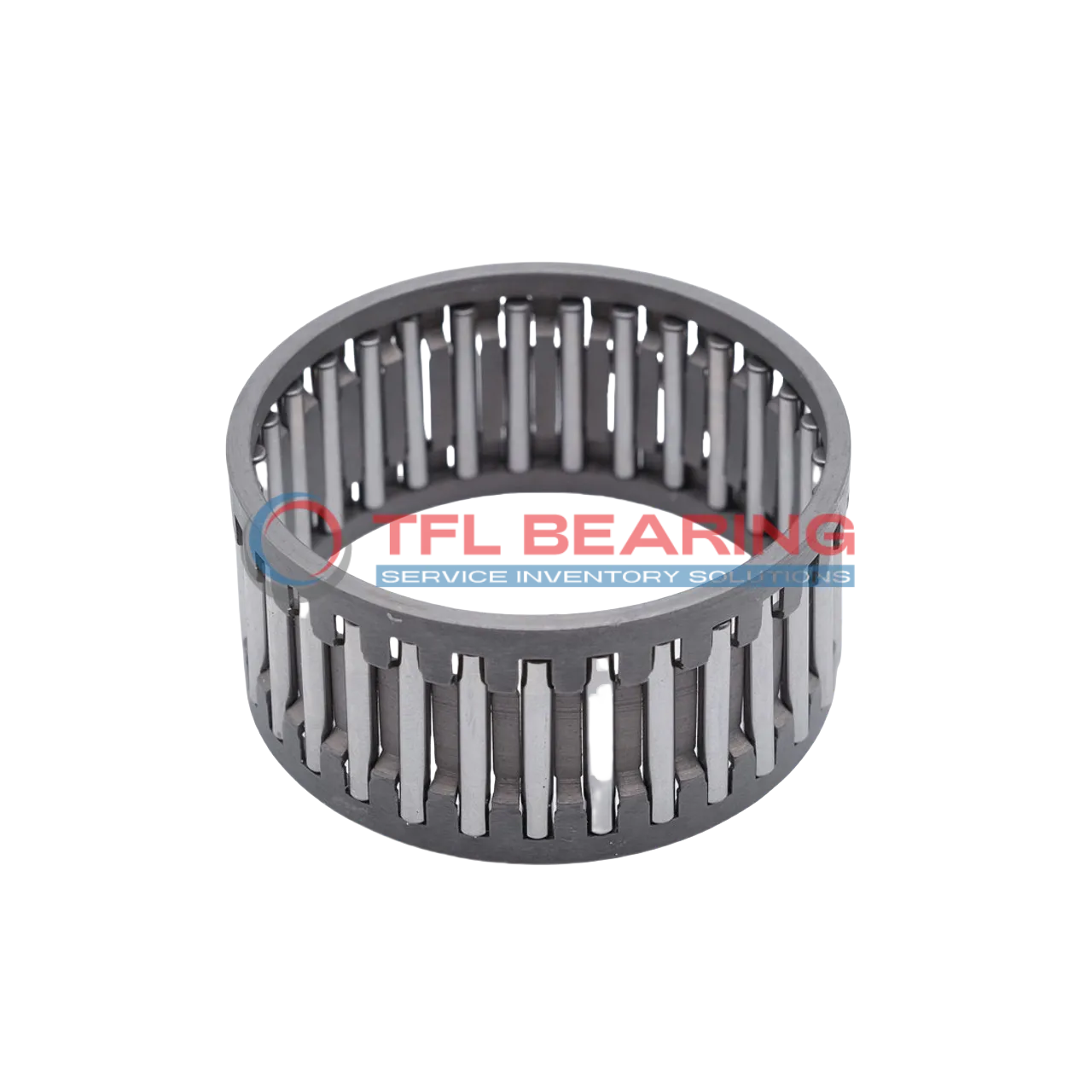

Needle Roller And Cage Assemblies C485424

Needle Roller And Cage Assemblies C485424

The C485424 is a needle roller and cage assembly with a 3-inch bore and 3.375-inch outer diameter, built from sturdy steel. It handles radial loads up to 21150 lbf and operates smoothly at speeds up to 6100 RPM.
Its single-row design and steel cage provide reliable performance, even in demanding conditions. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like transmissions or industrial equipment where high radial loads are common.
Weighing just 216g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number C485424
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 3"
  • Outer Dia 3.375"
  • Width 1.5"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series C Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 21150 lbf
  • Static Radial Load 49275 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 6100 rpm
  • Weight 216 g

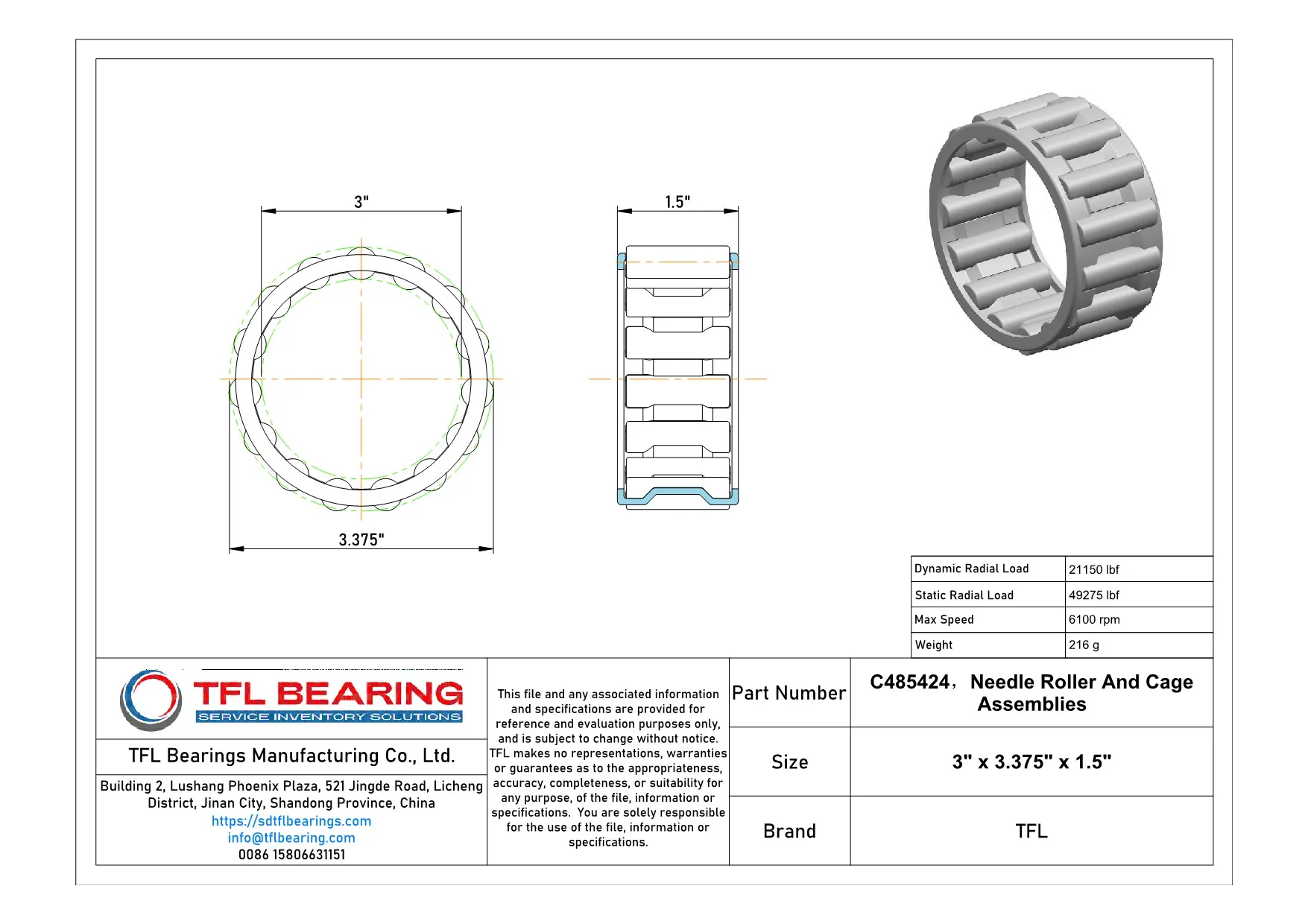

Needle Roller And Cage Assemblies C485424 dimension drawing
Download DWG Download PDF

Features

How Does C485424 Bearing Handle Heavy Loads?
C485424 Bearing features steel needles and cage, offering robust resistance to high radial loads.
Its dynamic radial load capacity reaches 21150 lbf, making it suitable for demanding industrial applications.
The single-row construction ensures stability and efficient load distribution.
With a maximum speed of 6100 rpm, it delivers reliable performance under various operating conditions.
C485424 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
Its compact design and steel components contribute to durability and long service life.

Application

Industrial Uses of C485424 Bearing
C485424 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity handles demanding conditions. The steel cage and needle rollers ensure durability even in rugged environments.
Where Is C485424 Bearing Used?
You’ll often find C485424 Bearing in automotive transmissions, where its compact design and high-speed capability improve efficiency. Its inch sizing makes it a straightforward fit for many North American vehicle models.
Built for Heavy-Duty Use: C485424 Bearing
In conveyor systems, C485424 Bearing provides reliable performance under continuous operation. The single-row construction simplifies installation, while the steel components resist wear over time.
Automotive vs Industrial: Applications of C485424 Bearing
C485424 Bearing works well in both automotive and industrial settings, from gearboxes to printing presses. Its temperature range and RoHS compliance make it versatile for various applications.
Perfect Fit for Automation: C485424 Bearing
For robotic arms and assembly line equipment, C485424 Bearing offers smooth motion and precise alignment. The high dynamic load rating ensures consistent performance in repetitive tasks.
