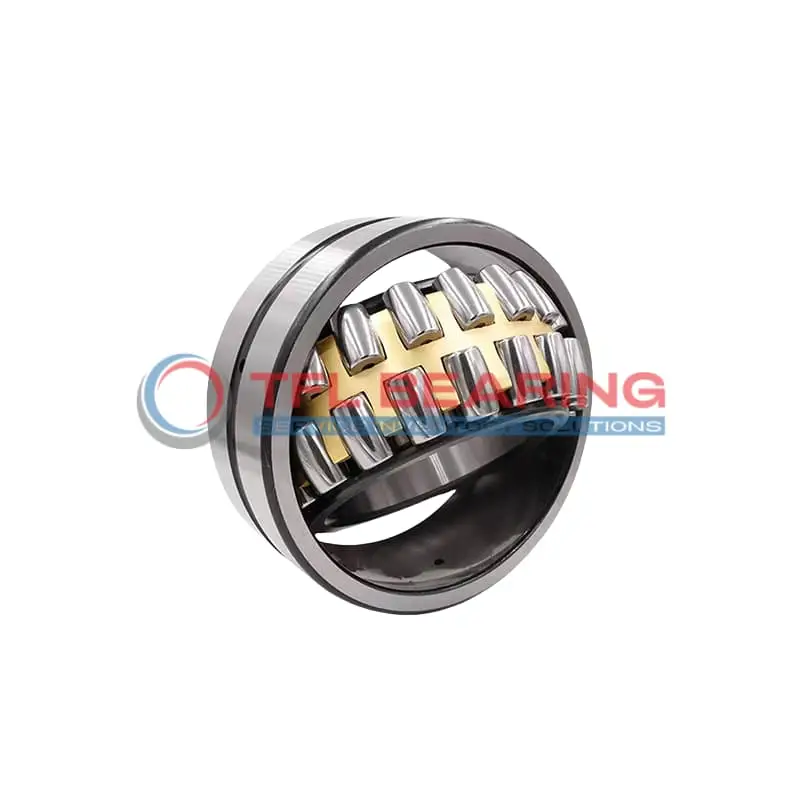

23164 CA C08 W509 Double Row Spherical Roller Bearing

23164 CA C08 W509 Double Row Spherical Roller Bearing

The 23164 CA C08 W509 is a double-row spherical roller bearing with a 320mm bore and 540mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 821227 lbf and runs smoothly at speeds up to 1100 RPM.

Its brass cage and spherical rollers ensure durability, while the open design allows easy lubrication through the 12mm holes. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

With a radial clearance of CN and P5 precision, it offers reliable performance in heavy-duty applications. Ideal for industrial machinery like gearboxes or crushers where high radial loads are common.

Weighing 165kg, it’s designed for robust use. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23164 CA C08 W509
  • Brand TFL
  • Interchangeable SKF
  • Size 320 x 540 x 176 mm
  • Bore Dia 320 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 176 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 386 mm
  • Shoulder/Recess Dia Of Outer Ring 465 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 821227 lbf
  • Static Radial Load 1236449 lbf
  • Max Speed 1100 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 165 kg
  • Price （US$） US$3,181.68

Features

Performance Features of 23164 CA C08 W509 Bearing

23164 CA C08 W509 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 821227 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller movement, reducing friction and extending operational life.
With a maximum speed of 1100 rpm, it maintains performance under demanding conditions.

23164 CA C08 W509 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
The lubrication groove and hole design facilitate efficient maintenance, ensuring long-term reliability.

Application

Industrial Uses of 23164 CA C08 W509 Bearing
23164 CA C08 W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23164 CA C08 W509 Bearing supports the main shaft, offering reliability in harsh weather conditions. Its large bore size and metric measurements make it ideal for European turbine designs.

For mining equipment, 23164 CA C08 W509 Bearing’s spherical rollers accommodate misalignment, reducing wear in uneven terrains. The chrome steel construction provides long-lasting performance in dusty environments.

Where Is 23164 CA C08 W509 Bearing Used?
You’ll find 23164 CA C08 W509 Bearing in paper mills, where it supports large rollers under constant load. Its high dynamic radial load capacity ensures minimal downtime.

In steel plants, 23164 CA C08 W509 Bearing handles the heavy loads of rolling mills. The open seal design allows for easy lubrication, keeping operations running smoothly.

Built for Heavy-Duty Use: 23164 CA C08 W509 Bearing
23164 CA C08 W509 Bearing is a go-to choice for construction equipment like cranes, where its robust design withstands extreme loads. The temperature range suits both hot and cold sites.

In marine applications, 23164 CA C08 W509 Bearing’s corrosion-resistant materials perform well in salty environments. The lubrication groove ensures consistent performance even in remote locations.

Automotive vs Aerospace: Applications of 23164 CA C08 W509 Bearing
In large trucks, 23164 CA C08 W509 Bearing supports axles, handling heavy loads over long distances. Its durability reduces maintenance needs for fleet operators.

For aerospace ground equipment, 23164 CA C08 W509 Bearing’s precision ensures smooth operation in aircraft loaders. The high static radial load capacity adds an extra layer of safety.
