NA48290SW Single Cones (Imperial)

Brand: TFL Bearing Interchangeable: Timken NA48290SW Inch Open
Part number: NA48290SW
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia5"
Bore Dia Tolerance+0.001" to 0
Cone Width1.8437"
Cone Width Tolerance+0.003" to -0.01
Cone Frontface Backing Diameter0"
Cone Backface Backing Diameter5.55"
Performance
Dynamic Radial Load60,200 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90)15,600 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90)8,160 lbf
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementInch
TypeCones
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionSingle Row
Seal TypeOpen
Series48200
Cone Backface ToClear Radius0.14"
Cage Cone Frontface Clearance-0.04"
Cage Cone Backface Clearance0.22"
Effective Center Location-0.37"
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Material
Ring MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

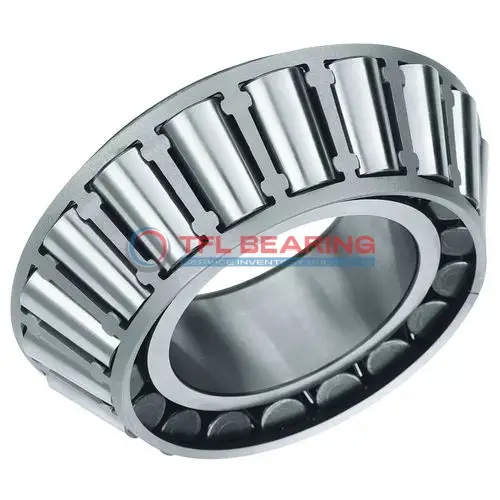

Product photo
NA48290SW Single Cones (Imperial)

Description

The NA48290SW is a single-row tapered roller bearing cone with a 5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 60,200 lbf and thrust loads up to 8,160 lbf.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone width is 1.8437 inches, with a standard radial clearance option (also available in C3/C4/C5).

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy-duty equipment where combined loads are common.

It operates well in temperatures from -30°C to 110°C and meets RoHS and REACH standards for safe use. The ABEC-1 rating ensures decent precision for general applications.

Features

How Is NA48290SW Bearing Engineered for Reliability?

NA48290SW Bearing features chrome steel construction, ensuring strength and durability under combined loads.
Its tapered roller design efficiently handles dynamic radial loads up to 60,200 lbf for long-lasting performance.

The steel cage maintains proper roller alignment, reducing friction and wear during operation.
With a temperature range of -30° to 110°C, NA48290SW Bearing performs reliably in various conditions.

Standard radial clearance options allow flexibility for different application requirements.
This bearing is interchangeable with Timken models, offering convenience and compatibility.

Application

Industrial Uses of NA48290SW Bearing
NA48290SW Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is NA48290SW Bearing Used?
You’ll often find NA48290SW Bearing in industrial gearboxes and large conveyor systems, thanks to its ability to manage both radial and thrust loads. Its open seal type makes it easy to maintain in dusty or high-load environments.

Built for Heavy-Duty Use: NA48290SW Bearing
NA48290SW Bearing excels in applications like agricultural machinery and railroad axles, where reliability under heavy loads is key. The steel cage adds extra strength, making it a solid choice for long-term use.

Automotive vs Aerospace: Applications of NA48290SW Bearing
In automotive settings, NA48290SW Bearing supports large truck axles and drivetrains, while in aerospace, it’s used in landing gear systems. Its inch sizing makes it versatile for various industrial standards.

Perfect Fit for Automation: NA48290SW Bearing
NA48290SW Bearing works well in automated production lines, particularly in robotic arms and heavy-duty actuators. Its standard radial clearance ensures smooth operation in repetitive motion tasks.
