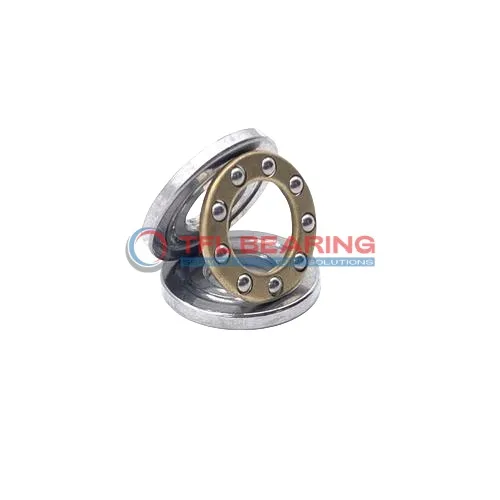

Miniature Thrust Ball Bearings F7-15M

Miniature Thrust Ball Bearings F7-15M

The F7-15M is a compact thrust ball bearing measuring 7mm by 15mm by 5mm, crafted from sturdy chrome steel for reliable performance. It supports thrust loads up to 495 lbf and operates smoothly at speeds up to 3600 RPM.

Its grooved raceway design ensures stable movement, while the brass cage adds durability. The open seal type makes lubrication straightforward, keeping maintenance simple.

This bearing is ideal for small machinery or precision tools where space is limited but performance is key. It works well in temperatures from -30°C to 110°C.

Weighing just 6.5g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F7-15M
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Outer Dia Shaft Washer 14.8 mm
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 8
  • Ball Dia 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Washers Type grooved raceway
  • For Load Direction Thrust
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 495 lbf
  • Static Thrust Load 450 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3600 rpm
  • Weight 6.5 g
  • Price（$） 1.65
Miniature Thrust Ball Bearings F7-15M dimension drawing
Download DWG Download PDF

Features

How Is F7-15M Bearing Engineered for Reliability?

F7-15M Bearing features chrome steel rings and balls, ensuring strong resistance to wear and tear.
The grooved raceway design enhances load distribution, improving performance under thrust loads.

With a dynamic thrust load capacity of 495 lbf, it handles demanding applications effectively.
The brass cage maintains ball alignment, reducing friction and extending operational life.

F7-15M Bearing operates smoothly within a temperature range of -30° to 110°C.
Its compact size of 7 mm×15 mm×5 mm makes it ideal for precision instruments.

The open design simplifies lubrication, ensuring consistent performance over time.
Weighing just 6.5 g, it offers a balance of durability and lightweight construction.

Application

Key Fields for F7-15M Bearing
F7-15M Bearing is commonly used in small industrial equipment like precision instruments and compact machinery, where its miniature size and grooved raceway design handle axial loads efficiently. The open seal type allows for easy lubrication, ensuring smooth operation in tight spaces.

In automotive applications, F7-15M Bearing fits well in components such as gear shift mechanisms and small electric motors. Its chrome steel construction provides durability, while the brass cage offers stability under frequent use.

For medical devices, F7-15M Bearing is suitable for delicate equipment like dental tools or diagnostic devices. The precise tolerances and lightweight design make it ideal for applications requiring accuracy and reliability.

In consumer electronics, F7-15M Bearing can be found in gadgets like miniature fans or small printers. Its compact dimensions and thrust load capacity ensure quiet and efficient performance in everyday devices.
