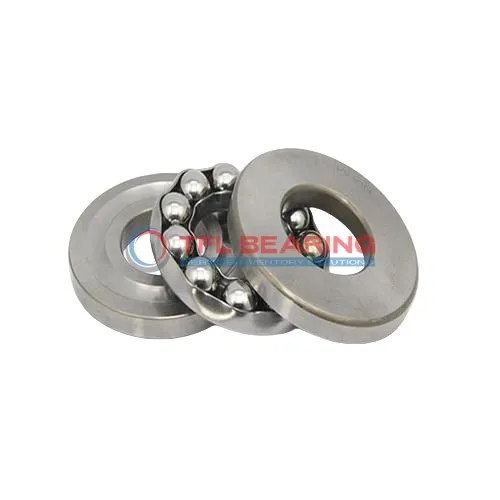

Metric Single Direction Thrust Ball Bearing 511/600 F

The 511/600 F is a large single-direction thrust ball bearing with a 600mm bore and 710mm outer diameter, crafted from tough 52100 chrome steel. It manages heavy thrust loads up to 149175 lbf and operates at speeds up to 700 RPM.

Its open design simplifies maintenance, and the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suited for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.

Weighing 65kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 511/600 F
Brand TFL
Interchangeable SKF
System of Measurement Metric
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Bore Dia 600 mm
Bore Dia Tolerance -0.05mm to 0
Outer Dia 710 mm
Outer Dia Tolerance -0.075mm to 0
Outer Dia Shaft Washer 706 mm
Width 85 mm
Width Tolerance +0.06mm to -0.6mm
Inner Dia Housing Washer 604 mm
Chamfer Dimension 3 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Stainless Steel
Dynamic Thrust Load 149175 lbf
Static Thrust Load 1080000 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 700 rpm
Weight 65 kg

Metric Single Direction Thrust Ball Bearing 511/600 F dimension drawing

Download DWG Download PDF

Features

Why Choose 511/600 F Bearing for Precision Tasks?

511/600 F Bearing is crafted with 52100 chrome steel rings and balls, ensuring high precision and durability.
Its dynamic thrust load capacity of 149175 lbf makes it suitable for heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 700 rpm, it delivers reliable performance in demanding conditions.

511/600 F Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design simplifies installation and maintenance, saving time and effort.

Application

Industrial Uses of 511/600 F Bearing
511/600 F Bearing is commonly used in heavy machinery, such as large presses and hydraulic systems, where its high thrust load capacity is essential. The open design allows for easy lubrication, ensuring long service life in demanding conditions.

In wind turbine applications, 511/600 F Bearing handles axial loads efficiently, supporting the rotor shaft with reliable performance. Its chrome steel construction provides excellent durability even in harsh outdoor environments.

For industrial conveyor systems, 511/600 F Bearing ensures smooth operation under heavy loads, reducing downtime. The stainless steel cage adds extra resistance to wear, making it a cost-effective choice for continuous use.

Where Is 511/600 F Bearing Used?
You’ll find 511/600 F Bearing in large-scale equipment like mining drills, where its robust design handles extreme axial forces. The metric sizing ensures compatibility with international machinery standards.

In marine applications, 511/600 F Bearing supports propeller shafts, offering reliable performance in corrosive environments. The wide temperature range makes it suitable for both cold and warm operating conditions.

Built for Heavy-Duty Use: 511/600 F Bearing
511/600 F Bearing excels in steel mills, where it manages high thrust loads in rolling mills and other heavy equipment. The chrome steel rings and balls provide consistent performance under intense pressure.

For construction machinery like cranes, 511/600 F Bearing ensures stability and smooth operation. Its large bore diameter makes it ideal for heavy-duty shafts, reducing stress and wear over time.

Automotive vs Aerospace: Applications of 511/600 F Bearing
In automotive testing rigs, 511/600 F Bearing handles high axial loads during durability tests. Its precision engineering ensures accurate results under repetitive stress.

For aerospace ground equipment, 511/600 F Bearing supports heavy components like landing gear testers. The stainless steel cage prevents corrosion, even in humid or salty environments.
