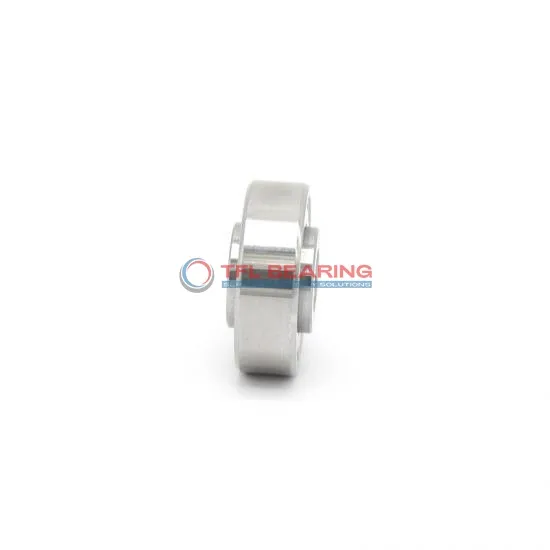

Miniature Ball Bearings with Extended Inner Ring SRW1

Miniature Ball Bearings with Extended Inner Ring SRW1

The SRW1 is a miniature ball bearing with an extended inner ring, measuring just 0.05556″ in bore diameter and 0.1875″ in outer diameter. Made entirely of stainless steel, it offers good resistance to wear and corrosion.

This single-row bearing handles radial loads up to 40 lbf and can spin at speeds up to 81,000 RPM. Its open design requires regular lubrication for smooth operation.

The extended inner ring makes installation easier, while the ABEC1 tolerance ensures reliable performance. It works in temperatures from -86°F to 230°F.

Ideal for small precision devices like dental tools or miniature motors where space is limited. Weighing only 0.19g, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SRW1
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 0.05556"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.1875"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.0781"
  • Width Tolerance -0.005" to 0"
  • External Diameter On Inner Ring 0.093"
  • Inner Ring Width 0.1094"
  • Ball Qty 7
  • Ball Dia 0.0394"
  • Radial Clearance 0.00008" to 0.0005"
  • System of Measurement Inch
  • Seal Type Open
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 40 lbf
  • Static Radial Load 11 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 81000 rpm
  • Weight 0.19 g
  • Price（$） 17.82
Miniature Ball Bearings with Extended Inner Ring SRW1 dimension drawing
Download DWG Download PDF

Features

Why Choose SRW1 Bearing for Precision Tasks?

SRW1 Bearing features a stainless steel construction, ensuring durability and resistance to corrosion.
Its extended inner ring design provides better stability and ease of installation in compact spaces.

With a dynamic radial load capacity of 40 lbf, SRW1 Bearing handles precise radial loads efficiently.
The ABEC1 tolerance class ensures consistent performance in applications requiring high accuracy.

SRW1 Bearing operates smoothly at speeds up to 81,000 rpm, making it ideal for high-speed devices.
Its open design allows for easy lubrication, maintaining optimal performance over time.

The miniature size of SRW1 Bearing makes it perfect for applications where space is limited.
Despite its small dimensions, it delivers reliable performance across a wide temperature range.

Application

Common Applications of SRW1 Bearing
SRW1 Bearing is commonly used in small electric motors, where its compact size and extended inner ring help with easy mounting. The stainless steel construction ensures it performs well in environments where corrosion resistance is needed.

Where Is SRW1 Bearing Used?
You’ll often find SRW1 Bearing in precision instruments like dental drills or optical devices, thanks to its smooth operation and low friction. Its ABEC1 tolerance makes it suitable for applications where moderate precision is sufficient.

Ideal for Precision: SRW1 Bearing
SRW1 Bearing works well in miniature machinery, such as model trains or small robotics, due to its lightweight design. The open seal allows for easy lubrication, extending its lifespan in high-speed scenarios.

Automotive vs Aerospace: Applications of SRW1 Bearing
In automotive settings, SRW1 Bearing fits well in dashboard instruments or small actuators. For aerospace, its lightweight and durability make it suitable for compact control systems or sensor mechanisms.

Practical Applications of SRW1 Bearing
SRW1 Bearing is a good fit for consumer electronics like small fans or handheld gadgets, where space is limited. The stainless steel balls and rings ensure reliable performance even with frequent use.
