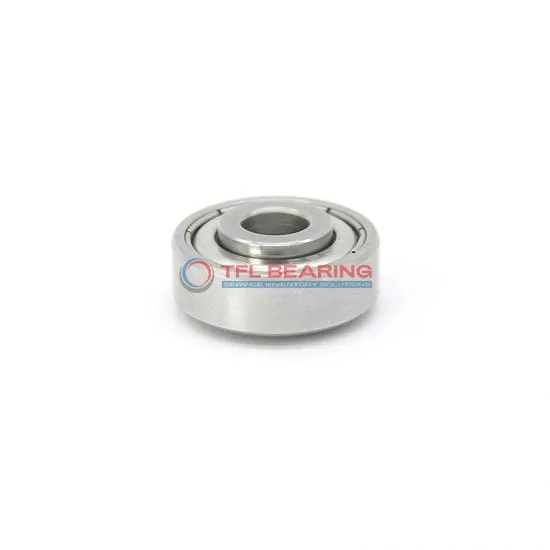

Miniature Ball Bearings with Extended Inner Ring SRW133zz

Miniature Ball Bearings with Extended Inner Ring SRW133zz

The SRW133zz is a compact stainless steel ball bearing with an extended inner ring, measuring just 0.09375″ in bore diameter and 0.1875″ in outer diameter. Its shielded design helps keep out dust while maintaining smooth rotation at speeds up to 72,000 RPM.

Made entirely from stainless steel, it resists corrosion and handles radial loads up to 25 lbf. The extended inner ring makes it easier to install in tight spaces or where precise alignment is needed.

With a temperature range of -86°F to 230°F, it’s suitable for various environments. The bearing requires lubrication for optimal performance. Ideal for small devices like dental tools or precision instruments where space is limited.

Weighing only 0.15g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a reliable choice for sensitive applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SRW133zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 0.09375"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.1875"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.0937"
  • Width Tolerance -0.005" to 0"
  • External Diameter On Inner Ring 0.118"
  • Inner Ring Width 0.125 "
  • Ball Qty 10
  • Ball Dia 0.0236"
  • Radial Clearance 0.00008" to 0.0005"
  • System of Measurement Inch
  • Seal Type Shielded
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 25 lbf
  • Static Radial Load 9 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 72000 rpm
  • Weight 0.15 g
  • Price（$） 3.834
Miniature Ball Bearings with Extended Inner Ring SRW133zz dimension drawing
Download DWG Download PDF

Features

Why Choose SRW133zz Bearing for Precision Tasks?

SRW133zz Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its extended inner ring design allows for easier handling and mounting in compact spaces.

The shielded design protects against dust and debris, maintaining smooth operation.
With a maximum speed of 72,000 rpm, it is ideal for high-speed applications.

SRW133zz Bearing’s ABEC1 tolerance ensures reliable performance in precision instruments.
The stainless steel cage and balls enhance durability and reduce maintenance needs.

Its dynamic radial load capacity of 25 lbf makes it suitable for various radial load applications.
The temperature range of -86 to 230 °F ensures performance in diverse environments.

Application

Where Is SRW133zz Bearing Used?
SRW133zz Bearing is commonly seen in small electric motors, where its compact size and shielded design help keep dust and debris out. The extended inner ring makes it easier to install in tight spaces, like those found in drone motors.

In consumer electronics, SRW133zz Bearing ensures smooth rotation in devices like cooling fans and hard drives. Its stainless steel construction offers good resistance to corrosion, which is handy in humid environments.

For hobbyist projects, SRW133zz Bearing works well in model trains and RC cars due to its lightweight design. The ABEC1 tolerance provides decent precision for these applications without breaking the bank.

Medical devices like dental tools often use SRW133zz Bearing for its reliable performance at high speeds. The shielded design also helps maintain cleanliness in sensitive environments.

In automation equipment, SRW133zz Bearing supports small conveyor belts and sorting mechanisms. Its low friction and smooth operation help maintain consistent performance over time.
