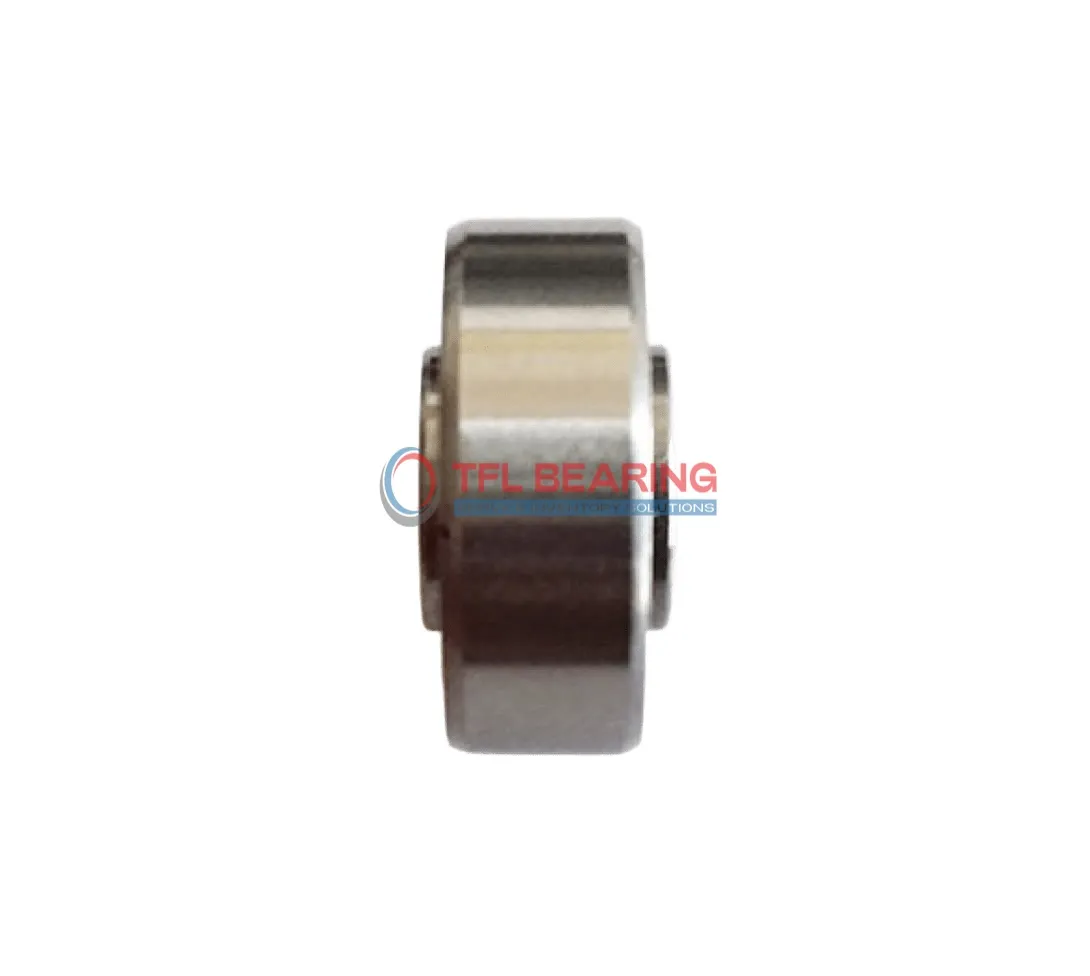

Miniature Ball Bearings with Extended Inner Ring RW1810

Miniature Ball Bearings with Extended Inner Ring RW1810

The RW1810 is a miniature ball bearing with an extended inner ring, measuring 0.3125″ in bore diameter and 0.5″ in outer diameter. Made from chrome steel, it’s lightweight at just 1.72g and handles radial loads up to 104 lbf.

Its open design and stainless steel cage allow for smooth operation at speeds up to 40,000 RPM. The extended inner ring makes it easier to install and align in tight spaces.

This bearing is suitable for applications like small motors or precision instruments where space is limited. It operates in temperatures from -86°F to 230°F and requires regular lubrication.

Compliant with RoHS and REACH standards, it’s a reliable choice for both industrial and hobbyist use. The ABEC1 tolerance ensures decent precision for most general-purpose needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RW1810
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 0.3125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.5"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1562"
  • Width Tolerance -0.005" to 0"
  • External Diameter On Inner Ring 0.362"
  • Inner Ring Width 0.1875"
  • Ball Qty 12
  • Ball Dia 0.0472"
  • Radial Clearance 0.00008" to 0.0005"
  • System of Measurement Inch
  • Seal Type Open
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 104 lbf
  • Static Radial Load 50 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 1.72 g
  • Price（$） 3.195
Miniature Ball Bearings with Extended Inner Ring RW1810 dimension drawing
Download DWG Download PDF

Features

Performance Features of RW1810 Bearing

RW1810 Bearing is crafted with chrome steel rings and balls, offering reliable radial load capacity up to 104 lbf.
Its extended inner ring design provides easier mounting and better alignment in compact spaces.

The stainless steel cage ensures smooth operation, even at high speeds of 40,000 rpm.
With a temperature range of -86 to 230 °F, it performs well in various environments.

RW1810 Bearing’s ABEC1 tolerance class guarantees consistent precision for miniature applications.
The open seal design allows for easy lubrication, maintaining optimal performance over time.

Application

Common Applications of RW1810 Bearing
RW1810 Bearing is commonly used in small electric motors, where its compact size and extended inner ring help with easy mounting and alignment. The open design allows for straightforward lubrication, ensuring smooth operation in high-speed applications.

Where Is RW1810 Bearing Used?
You’ll often find RW1810 Bearing in precision instruments like dental drills or optical devices, thanks to its reliable radial load handling. Its chrome steel construction ensures durability even in demanding environments.

Ideal for Precision: RW1810 Bearing
RW1810 Bearing works well in hobbyist projects, such as model trains or RC cars, where its lightweight design and high-speed capability are appreciated. The stainless steel cage adds extra resistance to wear over time.

Automotive vs Aerospace: Applications of RW1810 Bearing
In automotive applications, RW1810 Bearing fits well in small gearboxes or sensors, while in aerospace, it’s used in navigation systems due to its precise tolerances. The inch sizing makes it versatile for various equipment standards.

Practical Applications of RW1810 Bearing
RW1810 Bearing is a go-to choice for small conveyor systems in packaging machines, where its dynamic load capacity ensures reliable performance. The ABEC1 tolerance class makes it suitable for general industrial use.
