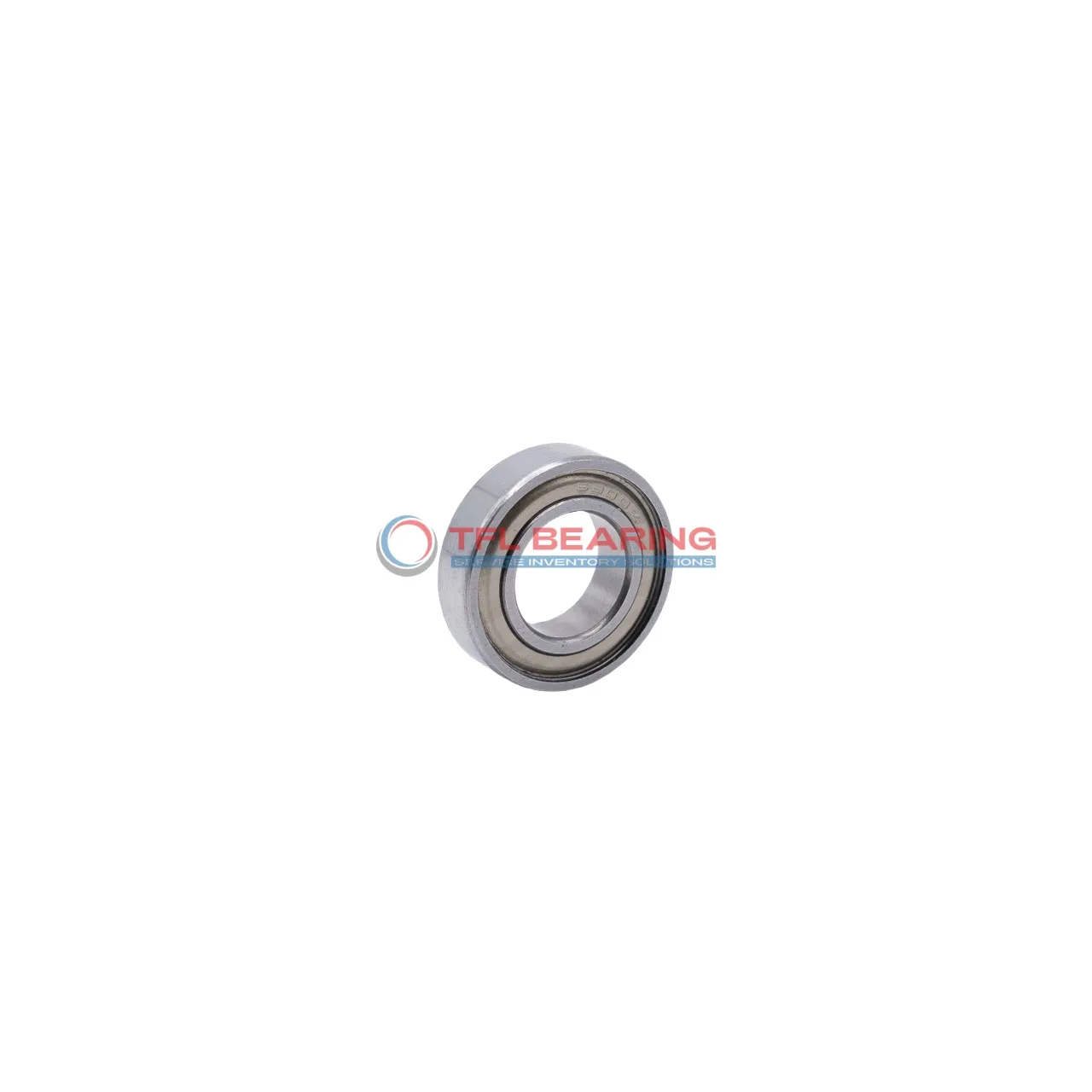

Metric Size Standard Miniature Ball Bearings S695zz

Metric Size Standard Miniature Ball Bearings S695zz

The S695zz is a compact miniature ball bearing with a 5mm bore and 13mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 185 lbf and spins smoothly at speeds up to 38,700 RPM.

Shielded on both sides, it keeps dust out while maintaining easy access for lubrication. The stainless steel cage and balls ensure long-lasting performance in various conditions.

With a slim width of just 4mm, it fits neatly into tight spaces. Ideal for small devices like precision instruments or miniature motors where space is limited.

Weighing only 2.31g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s suitable for use in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S695zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 8
  • Ball Dia 2.0000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 185 lbf
  • Static Radial Load 70 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 38700 rpm
  • Weight 2.31 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings S695zz dimension drawing
Download DWG Download PDF

Features

Why Choose S695zz Bearing for Precision Tasks?

S695zz Bearing features stainless steel construction, ensuring corrosion resistance and durability.
Its shielded design protects against dust and debris, maintaining smooth operation.

With a dynamic radial load capacity of 185 lbf, it handles demanding radial applications effortlessly.
The ABEC1 tolerance class ensures reliable precision for miniature equipment.

S695zz Bearing operates at speeds up to 38,700 rpm, balancing performance and longevity.
Its compact 5 mm×13 mm×4 mm size makes it ideal for space-constrained applications.

The stainless steel cage and balls reduce wear, extending the bearing’s service life.
Suitable for temperatures from -30° to 110°C, it performs well in varied environments.

Application

Common Applications of S695zz Bearing
S695zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and shielded design. The stainless steel construction ensures it performs well in humid or corrosive environments.

How Does S695zz Bearing Improve Performance?
In automation systems, S695zz Bearing reduces friction in robotic arms, allowing for smoother and more precise movements. Its ABEC1 tolerance ensures reliable performance without unnecessary complexity.

Built for Heavy-Duty Use: S695zz Bearing
S695zz Bearing handles radial loads efficiently in conveyor systems, making it a dependable choice for light industrial applications. The shielded design keeps contaminants out, extending its service life.

Medical vs Industrial: Where S695zz Bearing Excels
S695zz Bearing is suitable for medical devices like dental tools, where its small size and smooth operation are beneficial. In industrial settings, it’s often used in measuring instruments due to its precision.

Perfect Fit for Automation: S695zz Bearing
S695zz Bearing works well in 3D printers, ensuring quiet and accurate movement of print heads. The stainless steel materials also make it resistant to wear in high-use scenarios.
