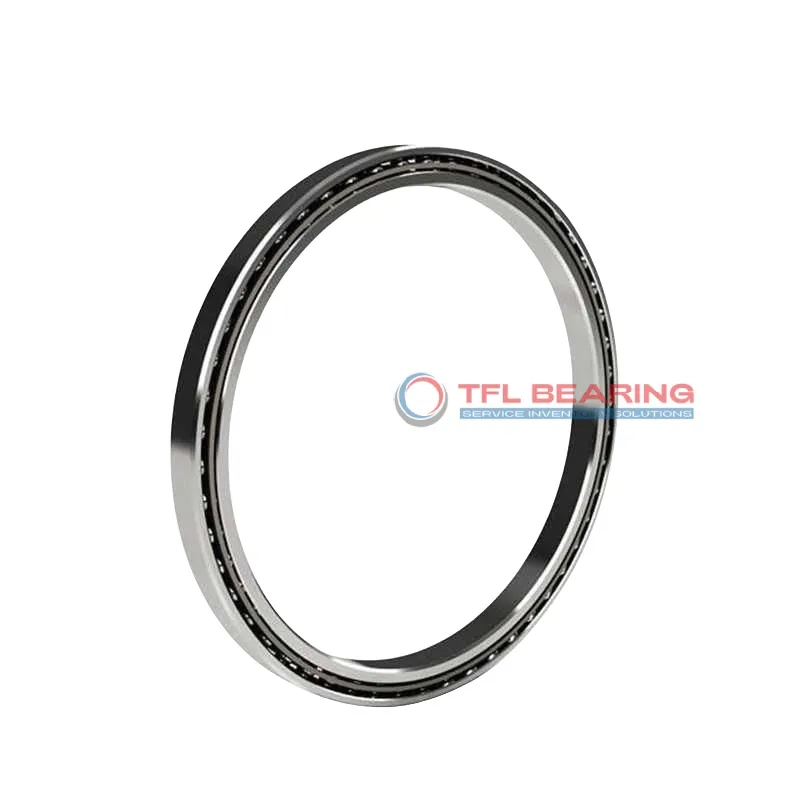

Constant Section (CS) Bearings JA050CP0

Constant Section (CS) Bearings JA050CP0

The JA050CP0 is a slim, sealed ball bearing with a 5-inch bore and 5.5-inch outer diameter, crafted from durable chrome steel. Its compact 0.25-inch width makes it ideal for space-constrained applications while handling radial loads up to 648 lbf.

The brass cage ensures smooth operation, and the sealed design keeps contaminants out, reducing maintenance needs. It operates reliably in temperatures from -30°C to 110°C, suitable for various industrial environments.

This bearing is interchangeable with KAYDON models, offering a practical replacement option. Perfect for use in robotics or precision machinery where a thin, sealed bearing is required.

Weighing just 0.23 lbs, it’s lightweight yet robust. Compliant with RoHS standards, it’s a safe and reliable choice for your needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JA050CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.5"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.148"
  • Internal Diameter On Outer Ring (Small Side Face) 5.356"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 648 lbf
  • Static Radial Load 1590 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1394 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.23 lbs
  • price（$） 123.82
Constant Section (CS) Bearings JA050CP0 dimension drawing
Download DWG Download PDF

Features

How Does JA050CP0 Bearing Reduce Friction?

JA050CP0 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its brass cage maintains proper ball alignment, enhancing efficiency and reducing wear.
The bearing’s ABEC-1 tolerance class ensures consistent performance in radial load applications.
With a dynamic radial load capacity of 648 lbf, it offers reliable performance in various conditions.

Application

Industrial Uses of JA050CP0 Bearing
JA050CP0 Bearing works well in robotics, especially for compact joints where space is limited. Its thin section design fits neatly without compromising on load capacity.

In medical imaging devices, JA050CP0 Bearing offers smooth rotation thanks to its sealed construction. The brass cage helps reduce friction, ensuring quiet operation.

For precision instruments like optical alignment tools, JA050CP0 Bearing provides reliable performance. The ABEC-1 tolerance ensures consistent accuracy in sensitive applications.

Where Is JA050CP0 Bearing Used?
You’ll often find JA050CP0 Bearing in aerospace components like satellite mechanisms. Its lightweight design and radial load handling make it ideal for such demanding environments.

In industrial automation, JA050CP0 Bearing supports conveyor belt rollers efficiently. The chrome steel rings add durability, even in continuous operation.

Built for Heavy-Duty Use: JA050CP0 Bearing
JA050CP0 Bearing handles radial loads effortlessly in packaging machinery. Its sealed design keeps contaminants out, extending service life.

The bearing also suits semiconductor manufacturing equipment, where precision is key. The inch sizing ensures compatibility with many North American machines.

Automotive vs Aerospace: Applications of JA050CP0 Bearing
In automotive steering systems, JA050CP0 Bearing aids smooth motion control. Its compact size fits well in tight spaces under the dashboard.

For aerospace actuators, the bearing’s lightweight build reduces overall system weight. The brass cage further enhances performance in high-vibration scenarios.
