Metric Size Standard Miniature Ball Bearings S608zz

Metric Size Standard Miniature Ball Bearings S608zz

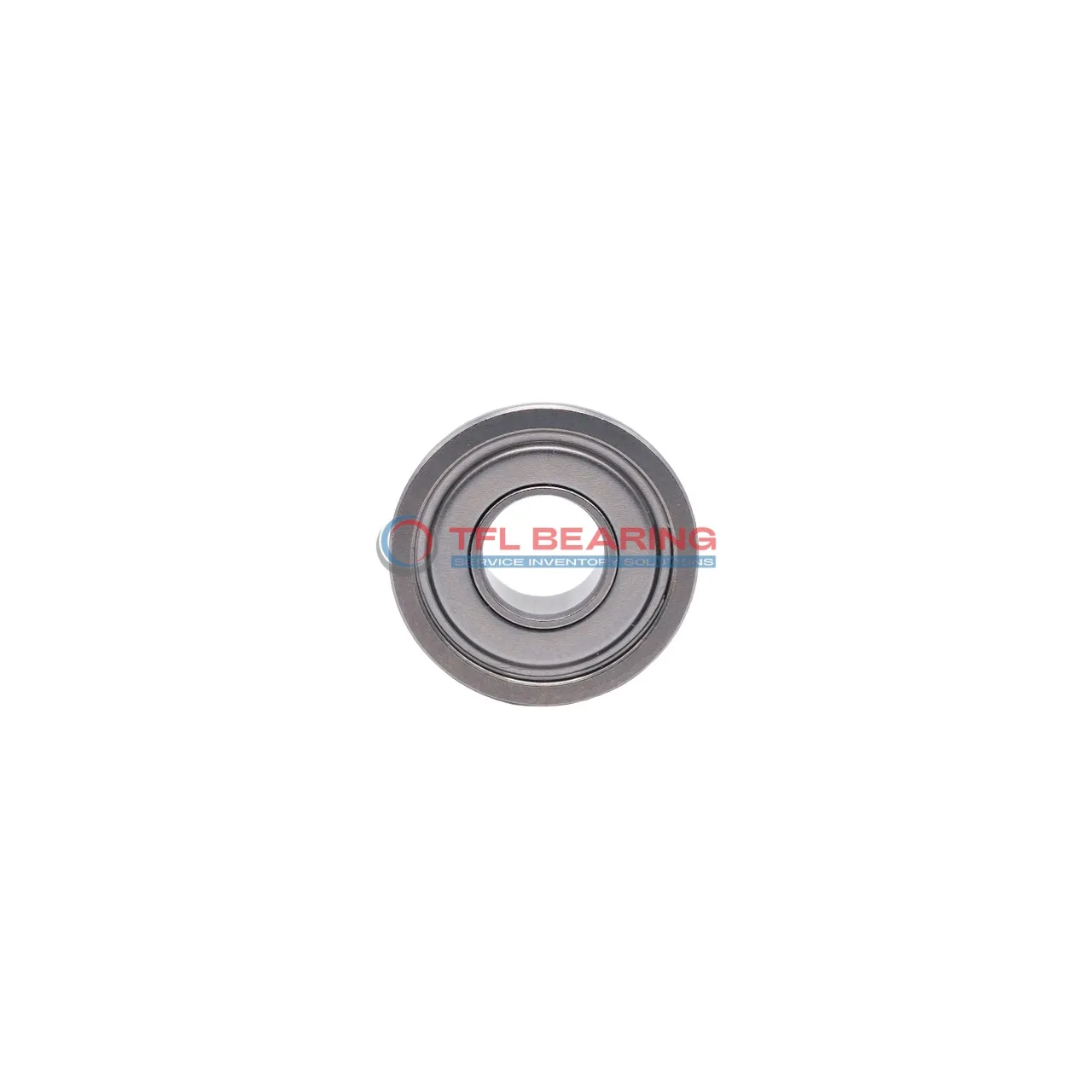

The S608zz is a compact miniature ball bearing with an 8mm bore and 22mm outer diameter, crafted entirely from stainless steel for durability. Its shielded design keeps dust out while allowing smooth rotation at speeds up to 30,600 RPM.

With a dynamic radial load capacity of 567 lbf, this single-row bearing handles moderate stresses efficiently. The ABEC1 tolerance ensures reliable performance for everyday applications.

Its small 7mm width and lightweight 12.9g design make it ideal for tight spaces like small motors or precision instruments. The stainless steel construction resists corrosion in temperatures from -30°C to 110°C.

Requiring lubrication for optimal performance, this bearing suits devices needing quiet operation, such as dental tools or camera mechanisms. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S608zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 7
  • Ball Dia 3.9690 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 567 lbf
  • Static Radial Load 223 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 30600 rpm
  • Weight 12.9 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings S608zz dimension drawing
Download DWG Download PDF

Features

How Does S608zz Bearing Reduce Friction?

S608zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.

The ABEC1 tolerance class ensures consistent performance, ideal for precision applications.
With a maximum speed of 30,600 rpm, it balances efficiency and durability.

S608zz Bearing’s radial clearance of 0.002mm to 0.013mm enhances its smooth rolling motion.
The stainless steel cage keeps the balls aligned, reducing wear and extending service life.

Application

Common Applications of S608zz Bearing
S608zz Bearing is widely used in small electric motors, such as those found in household appliances or cooling fans. Its shielded design helps keep out dust while maintaining smooth rotation.

In robotics, S608zz Bearing provides reliable support for lightweight joints and pivots, thanks to its stainless steel construction. The compact size makes it ideal for precision movements in automated systems.

For office equipment like printers, S608zz Bearing ensures quiet operation and long service life. The ABEC1 tolerance offers consistent performance for everyday use.

DIY enthusiasts often choose S608zz Bearing for projects requiring small, durable bearings. Its metric sizing simplifies compatibility with European-designed components.

Medical devices benefit from S608zz Bearing’s corrosion-resistant materials in low-torque applications. The shielded design also helps maintain cleanliness in sensitive environments.
