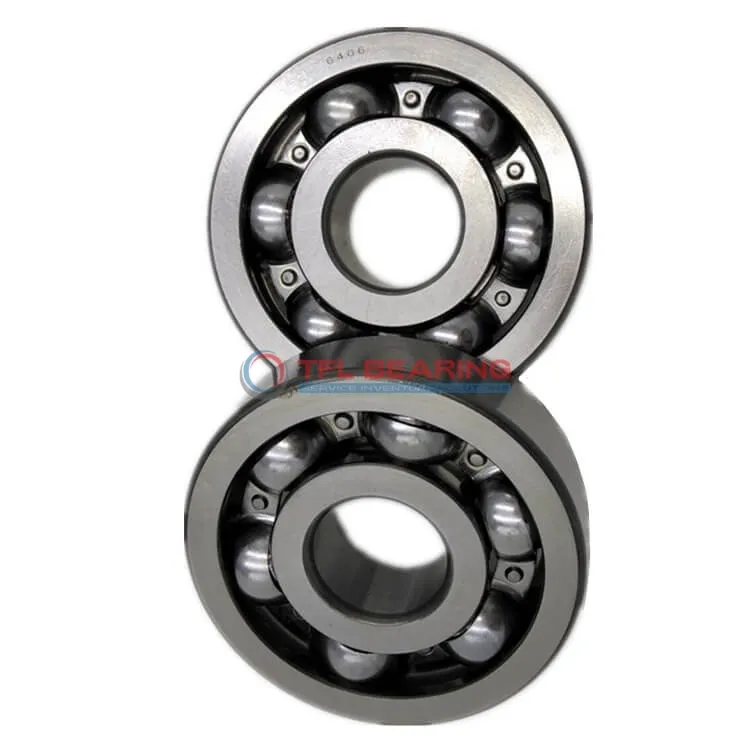

Single Row Deep Groove Ball Bearings 6206/C2

Single Row Deep Groove Ball Bearings 6206/C2

The 6206/C2 is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 199g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206/C2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 3.618
Single Row Deep Groove Ball Bearings 6206/C2 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6206/C2 Bearing

6206/C2 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4384 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 11,000 rpm, it balances durability and efficiency.

Application

Common Applications of 6206/C2 Bearing
In industrial settings, 6206/C2 Bearing is widely used in electric motors and pumps, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6206/C2 Bearing Used?
You’ll often find 6206/C2 Bearing in automotive applications like alternators and wheel hubs, thanks to its reliable performance under radial loads. Its metric sizing makes it a versatile fit for various vehicle models.

Ideal for Precision: 6206/C2 Bearing
For medical devices such as centrifuges, 6206/C2 Bearing offers consistent performance due to its chrome steel construction. The C2 clearance provides optimal fit for precision instruments.

Automotive vs Industrial: Applications of 6206/C2 Bearing
In automotive systems, 6206/C2 Bearing handles radial loads in components like transmissions, while in industrial gearboxes, it ensures durability. Its temperature range suits both environments well.

Practical Applications of 6206/C2 Bearing
In household appliances like washing machines, 6206/C2 Bearing reduces noise and vibration. The chrome steel balls and cage provide long-lasting performance even with frequent use.
