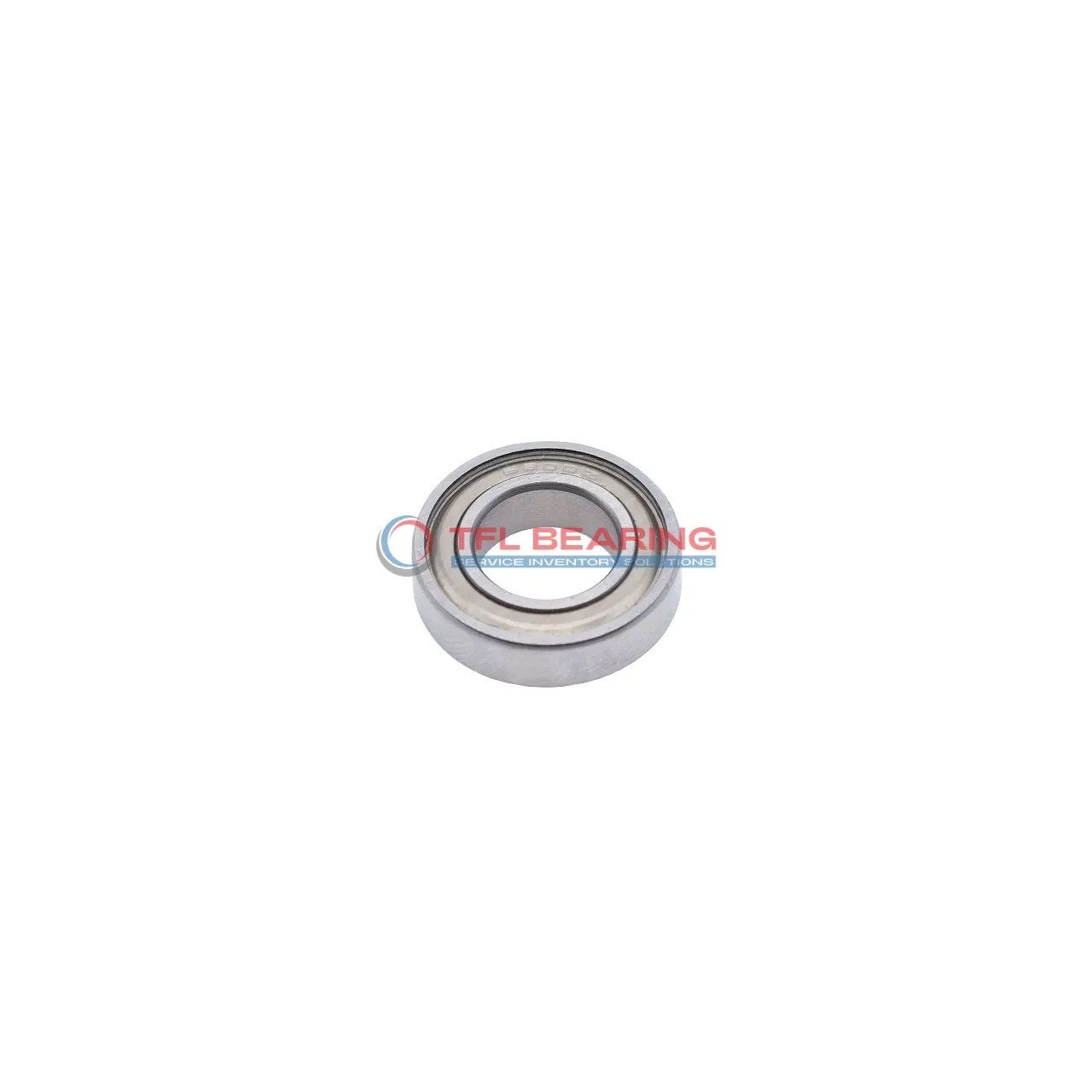

Metric Size Standard Miniature Ball Bearings 605zz

Metric Size Standard Miniature Ball Bearings 605zz

The 605zz is a compact metric ball bearing with a 5mm bore and 14mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 254 lbf and spins smoothly at speeds up to 40,000 RPM.

Its shielded design keeps dust out while the stainless steel cage ensures durability. The bearing operates well in temperatures from -30°C to 110°C and requires lubrication for optimal performance.

Weighing just 3.75g, it’s lightweight yet robust for its size. Ideal for small applications like electric motors, fans, or precision instruments where space is limited.

Compliant with RoHS and REACH standards, it’s a reliable choice for both industrial and hobbyist projects. The ABEC1 tolerance ensures consistent performance for everyday use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 605zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 7
  • Ball Dia 2.3810 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 254 lbf
  • Static Radial Load 91 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 3.75 g
  • Price（$） 1.035
Metric Size Standard Miniature Ball Bearings 605zz dimension drawing
Download DWG Download PDF

Features

Why Choose 605zz Bearing for Precision Tasks?

605zz Bearing is crafted with chrome steel rings and balls, ensuring precise radial load handling.
Its shielded design protects against contaminants while maintaining smooth operation.

With a dynamic radial load capacity of 254 lbf, it performs reliably in compact applications.
The stainless steel cage ensures ball alignment, reducing friction and wear.

Operating at up to 40,000 rpm, 605zz Bearing balances speed and durability.
Its ABEC1 tolerance class guarantees consistent performance for precision tasks.

Application

Common Applications of 605zz Bearing
605zz Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its compact size and shielded design help keep dust out while maintaining smooth rotation.

Where Is 605zz Bearing Used?
You’ll often spot 605zz Bearing in office equipment like printers and scanners, where its low noise and reliable performance are key. The shielded seals also make it suitable for environments where contamination needs to be minimised.

Built for Versatility: 605zz Bearing
605zz Bearing works well in hobbyist projects, including RC cars and drones, thanks to its lightweight design and high-speed capability. The chrome steel construction ensures it can handle frequent use without wearing out quickly.

Light-Duty vs High-Speed: Performance of 605zz Bearing
In light-duty applications like small conveyor systems, 605zz Bearing offers consistent performance with minimal maintenance. For high-speed uses, such as dental handpieces, its ABEC1 tolerance ensures precision and durability.

Perfect Fit for Automation: 605zz Bearing
605zz Bearing is a go-to choice for automated machinery, particularly in pick-and-place systems where smooth motion is essential. The stainless steel cage adds extra resistance to corrosion in humid or washdown environments.
