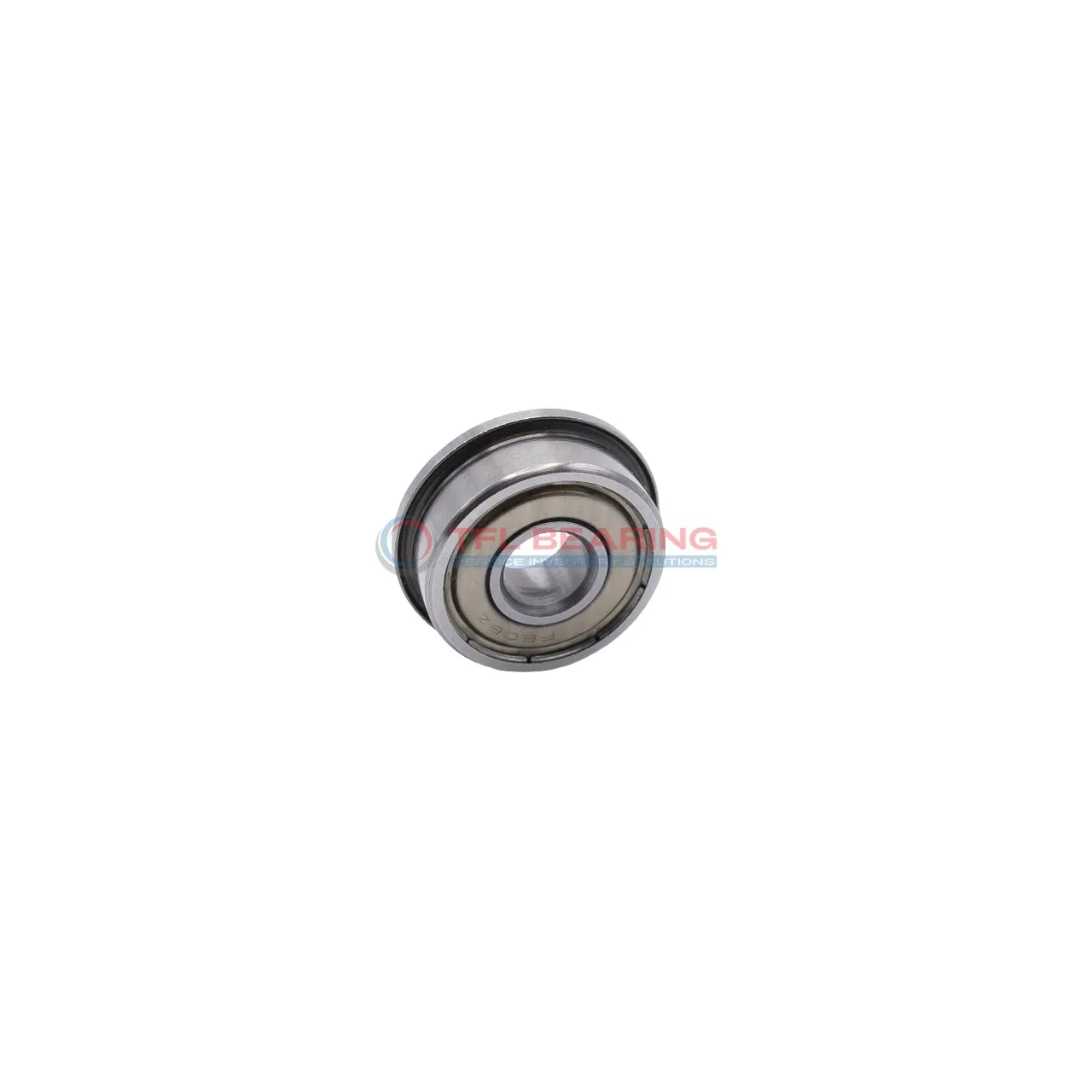

Metric Size Miniature Flanged Ball Bearings SMF137zz

Metric Size Miniature Flanged Ball Bearings SMF137zz

The SMF137zz is a small, shielded ball bearing with a 7mm bore and 13mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 93 lbf and spins at speeds up to 36,000 RPM, making it suitable for high-speed applications.

Its shielded design helps keep dirt out while maintaining smooth operation, and the stainless steel cage ensures long-lasting performance. The bearing requires lubrication for optimal use and works in temperatures from -30°C to 110°C.

With a compact width of just 4mm and a lightweight 2.17g design, it’s ideal for small machinery or precision instruments like dental tools or miniature motors. The flange adds extra stability during installation.

Compliant with RoHS and REACH standards, this bearing is a reliable choice for environments where corrosion resistance and cleanliness are important. Its ABEC1 tolerance ensures consistent performance for everyday industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMF137zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 14.6 mm
  • Flange Thickness 0.8 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 12
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 93 lbf
  • Static Radial Load 45 lbf
  • Max Speed 36000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.17 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SMF137zz dimension drawing
Download DWG Download PDF

Features

How Does SMF137zz Bearing Reduce Friction?

SMF137zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.

The precise radial clearance of 0.002mm to 0.013mm enhances performance in high-speed applications.
With a maximum speed of 36,000 rpm, it delivers reliable efficiency for precision tasks.

SMF137zz Bearing’s stainless steel cage keeps the balls aligned, reducing wear over time.
This design ensures consistent performance even under dynamic radial loads up to 93 lbf.

Application

Common Applications of SMF137zz Bearing
SMF137zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, due to its compact size and shielded design. The stainless steel construction ensures it performs well in environments where corrosion resistance is needed.

In automation systems, SMF137zz Bearing supports precise movements in devices like 3D printers or robotic arms. Its high-speed capability makes it suitable for applications requiring smooth, consistent rotation.

For consumer electronics, SMF137zz Bearing is often found in devices like printers or small household appliances. The lightweight design and reliable performance make it a practical choice for everyday use.

Medical equipment also benefits from SMF137zz Bearing, particularly in portable devices where space and reliability are key. The shielded design helps keep contaminants out, ensuring long-term performance.
