Single Row Deep Groove Ball Bearings 6009-2RS1/C5L

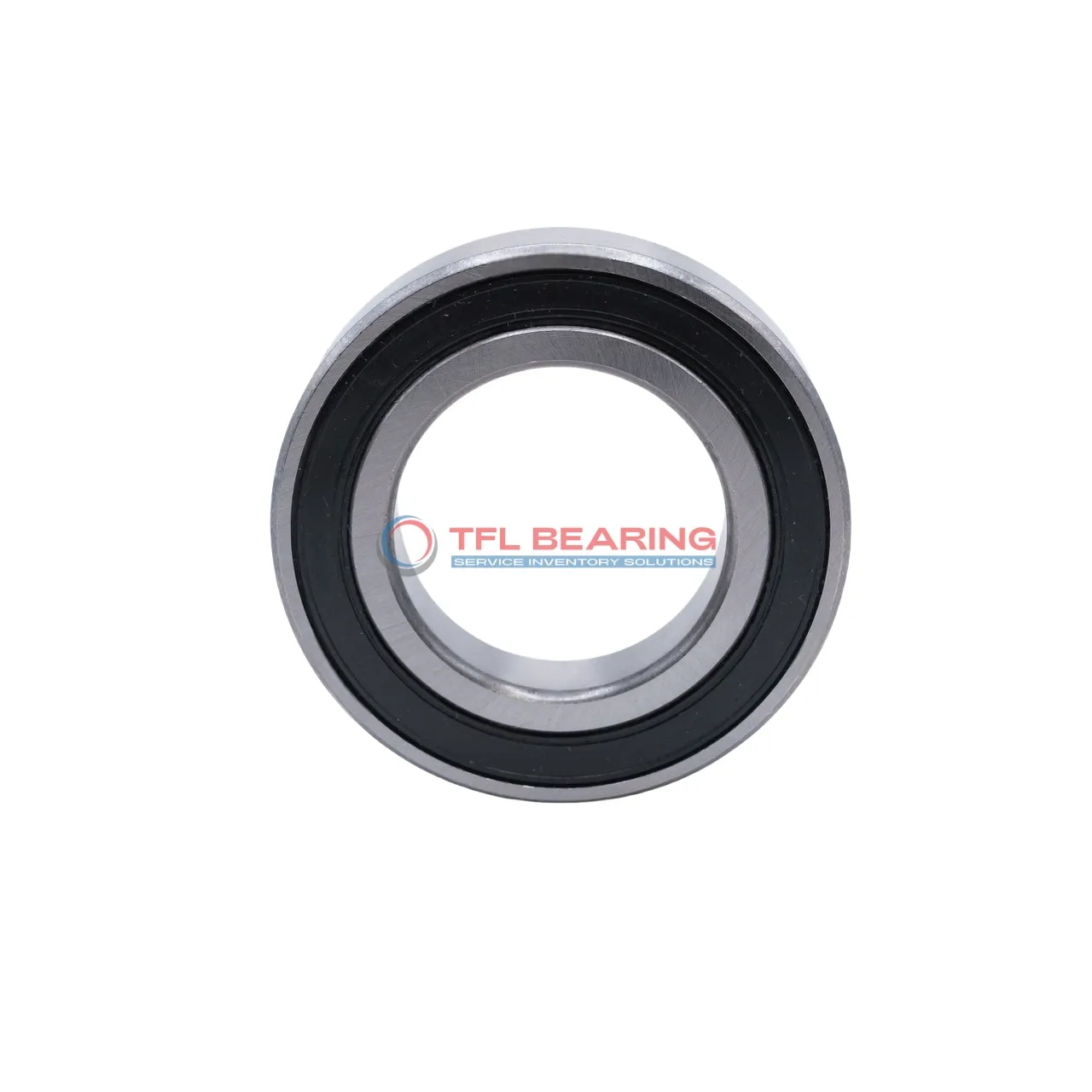

Single Row Deep Groove Ball Bearings 6009-2RS1/C5L

The 6009-2RS1/C5L is a single-row deep groove ball bearing with a 45mm bore and 75mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4721 lbf and spins smoothly at speeds up to 9200 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing 245g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6009-2RS1/C5L
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4721 lbf
  • Static Radial Load 3395 lbf
  • Max Speed 9200 rpm
  • Weight 245 g
  • price（$） 9.09
Single Row Deep Groove Ball Bearings 6009-2RS1/C5L dimension drawing
Download DWG Download PDF

Features

Performance Features of 6009-2RS1/C5L Bearing

6009-2RS1/C5L Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 4721 lbf.

Its sealed design protects against dust and moisture, ensuring smooth operation in various environments.

The C5 radial clearance provides optimal performance, balancing speed and load requirements.

With a maximum speed of 9,200 rpm, it delivers reliable performance in demanding applications.

Application

Key Fields for 6009-2RS1/C5L Bearing
In industrial settings, 6009-2RS1/C5L Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The C5 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6009-2RS1/C5L Bearing Used?
You’ll often find 6009-2RS1/C5L Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load capacity. The chrome steel construction offers good wear resistance for long-lasting performance.

Built for Heavy-Duty Use: 6009-2RS1/C5L Bearing
For household appliances like washing machines, 6009-2RS1/C5L Bearing provides quiet and efficient operation. Its sealed design also makes it low-maintenance, ideal for everyday use.

Automotive vs Industrial: Applications of 6009-2RS1/C5L Bearing
In robotics, 6009-2RS1/C5L Bearing supports precise movements in joints and actuators. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Practical Applications of 6009-2RS1/C5L Bearing
Medical devices like centrifuges benefit from 6009-2RS1/C5L Bearing’s smooth rotation and sealed protection. The temperature range suits both lab environments and sterilisation processes.
