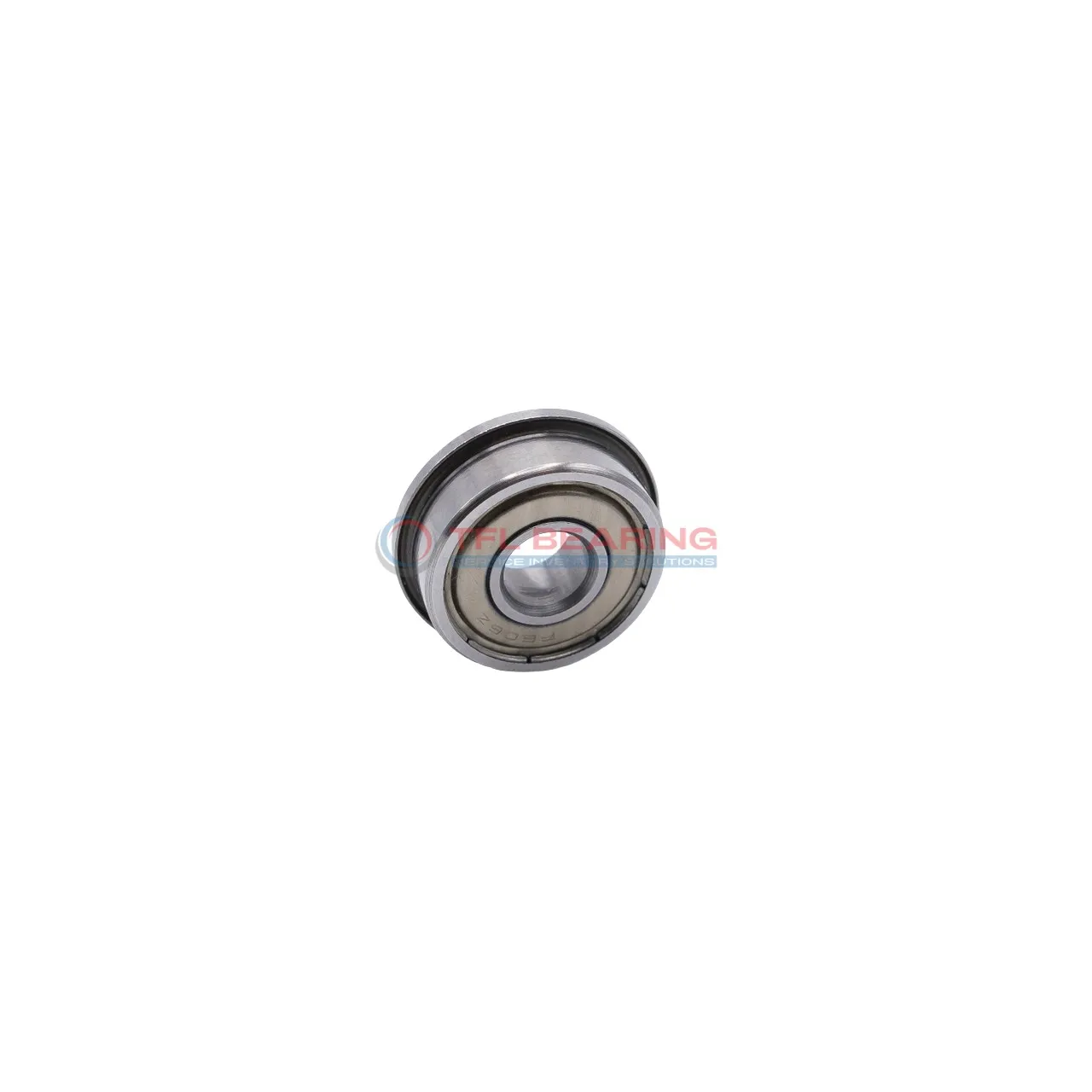

Metric Size Miniature Flanged Ball Bearings SMF106zz

Metric Size Miniature Flanged Ball Bearings SMF106zz

The SMF106zz is a small, shielded ball bearing with a 6mm bore and 10mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 86 lbf and spins at speeds up to 40,500 RPM, making it suitable for high-speed applications.

Its shielded design helps keep out dust and debris, while the stainless steel cage ensures smooth operation. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With a compact width of just 3mm and a lightweight design at 0.79g, it’s ideal for small devices like precision instruments or miniature motors. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial and electronic uses.

The flange adds extra stability, making installation easier in tight spaces. Its ABEC1 tolerance and MC3 radial clearance ensure consistent performance for everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMF106zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 11.2 mm
  • Flange Thickness 0.6 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 10
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 86 lbf
  • Static Radial Load 35 lbf
  • Max Speed 40500 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.79 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SMF106zz dimension drawing
Download DWG Download PDF

Features

How Does SMF106zz Bearing Reduce Friction?

SMF106zz Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.

The precision ball alignment in SMF106zz Bearing reduces energy loss, enhancing efficiency.
With a maximum speed of 40,500 rpm, it delivers reliable performance in high-speed applications.

SMF106zz Bearing’s stainless steel components resist wear, prolonging its service life.
Its compact design makes it suitable for space-constrained environments without sacrificing performance.

Application

Common Applications of SMF106zz Bearing
SMF106zz Bearing is widely used in small electric motors, such as those found in cooling fans or handheld devices, due to its compact size and shielded design. The stainless steel construction ensures durability in humid or corrosive environments.

In automation systems, SMF106zz Bearing supports precise movements in components like miniature robotic arms or 3D printer nozzles. Its high-speed capability makes it suitable for applications requiring rapid, repeated motions.

For consumer electronics, SMF106zz Bearing provides smooth operation in devices like computer hard drives or optical disc mechanisms. The lightweight design and low noise output enhance user experience in everyday gadgets.

Medical equipment like dental handpieces often rely on SMF106zz Bearing for its reliability during high-speed rotations. The shielded design helps maintain cleanliness in sensitive clinical environments.
