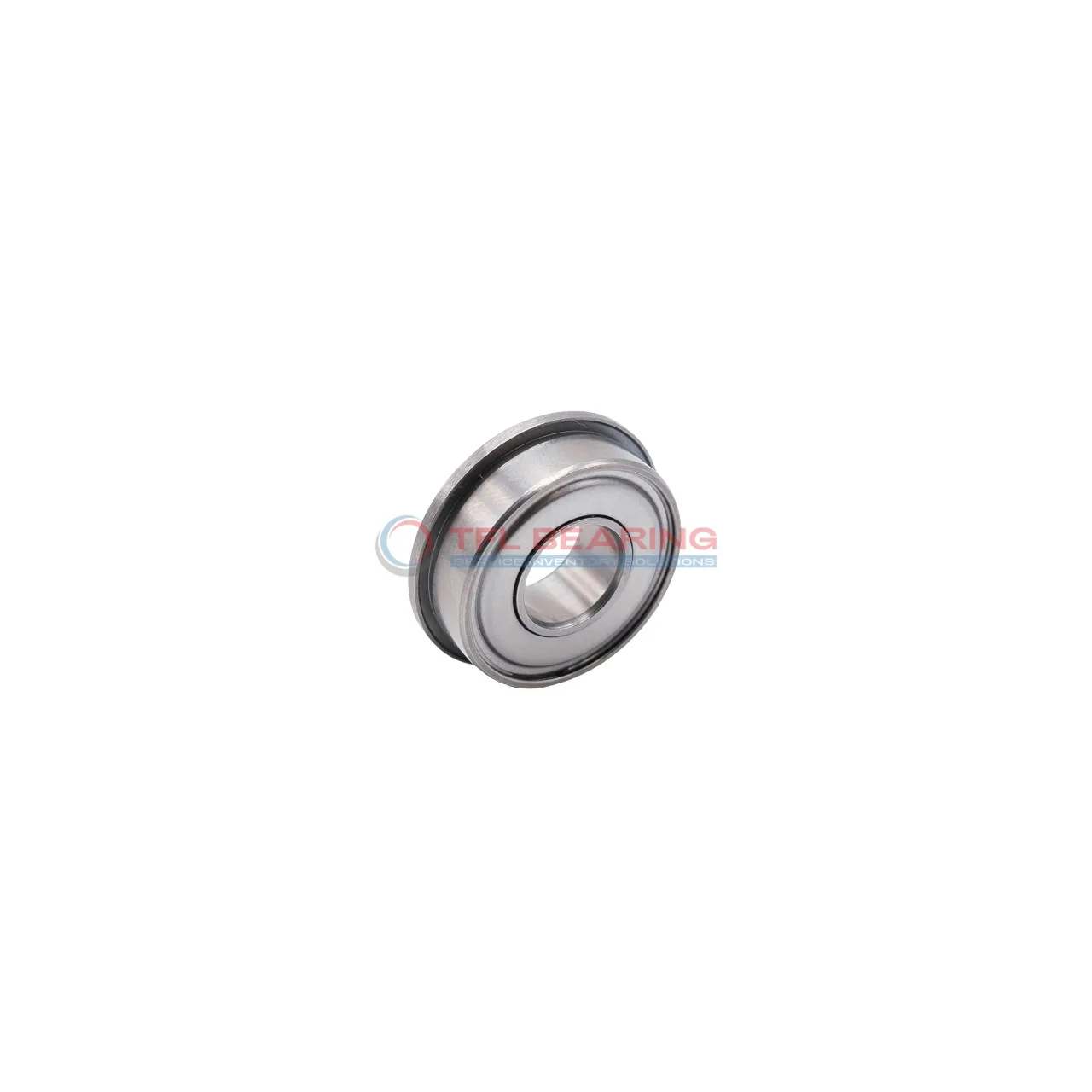

Metric Size Miniature Flanged Ball Bearings F692xzz

Metric Size Miniature Flanged Ball Bearings F692xzz

The F692xzz is a small, shielded ball bearing with a 2.5mm bore and 7mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 74 lbf and spins at speeds up to 63,000 RPM, making it suitable for high-speed applications.

Its stainless steel cage and shielded design help keep dirt out while maintaining smooth operation. The bearing requires lubrication and works in temperatures from -30°C to 110°C.

With a lightweight design at just 0.68g, it’s ideal for compact devices like small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial uses.

The flange adds extra stability, making installation easier in tight spaces. Its ABEC1 tolerance ensures consistent performance for everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F692xzz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 2.5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 7 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3.5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 8.5 mm
  • Flange Thickness 0.9 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 74 lbf
  • Static Radial Load 23 lbf
  • Max Speed 63000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.68 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 2.35
Metric Size Miniature Flanged Ball Bearings F692xzz dimension drawing
Download DWG Download PDF

Features

Performance Features of F692xzz Bearing

F692xzz Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 74 lbf ensures steady performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 63,000 rpm, it is suitable for high-speed operations.

F692xzz Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its shielded design helps keep contaminants out, prolonging service life.

Application

Common Applications of F692xzz Bearing
F692xzz Bearing is widely used in small electric motors, such as those found in cooling fans or miniature appliances, thanks to its compact size and shielded design. The high-speed capability makes it suitable for applications where consistent rotation is key.

In robotics, F692xzz Bearing fits well in lightweight joints or precision mechanisms due to its low radial clearance and smooth operation. The stainless steel cage ensures durability even with frequent movement.

For medical devices like dental tools or handheld diagnostic equipment, F692xzz Bearing offers reliable performance with minimal maintenance. Its chrome steel construction handles repeated use without compromising accuracy.

Consumer electronics, such as miniature drones or compact printers, benefit from F692xzz Bearing’s lightweight design and efficient power transfer. The shielded seals help keep dust out, extending the bearing’s lifespan.

In automation systems, F692xzz Bearing supports small conveyor belts or sensor arms where precision and low friction are essential. The ABEC1 tolerance ensures consistent performance in these delicate setups.
