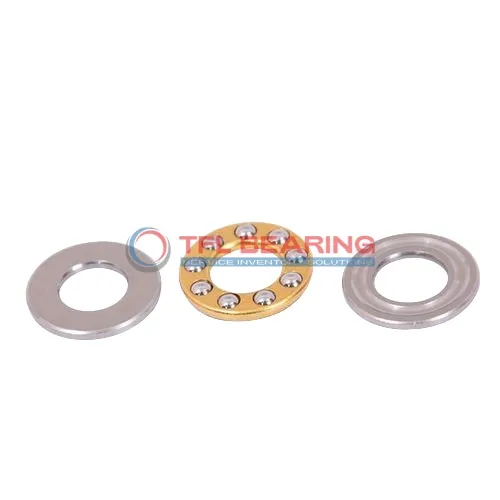

Metric Single Direction Thrust Ball Bearing 53420 M

Metric Single Direction Thrust Ball Bearing 53420 M

The 53420 M is a sturdy single-direction thrust ball bearing with a 100mm bore and 210mm outer diameter, crafted from durable 52100 chrome steel. It manages heavy thrust loads up to 83475 lbf and operates at speeds up to 1300 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.

Weighing 18kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53420 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Outer Dia Shaft Washer 205 mm
  • Width 90 mm
  • Width Tolerance +0.025mm to -0.3mm
  • Inner Dia Housing Washer 103 mm
  • Chamfer Dimension 3 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 83475 lbf
  • Static Thrust Load 238500 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1300 rpm
  • Weight 18 kg
Metric Single Direction Thrust Ball Bearing 53420 M dimension drawing
Download DWG Download PDF

Features

How Does 53420 M Bearing Handle Heavy Loads?

53420 M Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 83475 lbf, making it suitable for heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 1,300 rpm, it ensures stable performance under demanding conditions.

53420 M Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its open seal design allows for easy lubrication, ensuring smooth and reliable operation.

Application

Industrial Uses of 53420 M Bearing
53420 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open design simplifies lubrication and maintenance, ideal for industrial settings.

Where Is 53420 M Bearing Used?
In automotive applications, 53420 M Bearing supports heavy-duty components like truck transmissions and differential systems. Its robust construction ensures reliable performance under significant axial loads.

Built for Heavy-Duty Use: 53420 M Bearing
For wind turbines, 53420 M Bearing handles the axial loads generated by rotor blades, thanks to its durable chrome steel rings. The stainless steel cage adds longevity, even in harsh outdoor conditions.

Automotive vs Aerospace: Applications of 53420 M Bearing
In aerospace, 53420 M Bearing is suited for landing gear systems, where precision and strength are critical. Meanwhile, in automotive, it excels in heavy vehicle transmissions, offering stability under high stress.

Practical Applications of 53420 M Bearing
53420 M Bearing is a reliable choice for industrial pumps, ensuring smooth operation under high-pressure conditions. Its metric sizing makes it compatible with a wide range of European and Asian machinery.
