Metric Single Direction Thrust Ball Bearing 53415 M

Metric Single Direction Thrust Ball Bearing 53415 M

The 53415 M is a single-direction thrust ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 56475 lbf and operates at speeds up to 1800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems where high thrust loads are expected.

Weighing 8.1kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53415 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Outer Dia Shaft Washer 160 mm
  • Width 69 mm
  • Width Tolerance +0.02mm to -0.3mm
  • Inner Dia Housing Washer 78 mm
  • Chamfer Dimension 2 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 56475 lbf
  • Static Thrust Load 137250 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1800 rpm
  • Weight 8.1 kg

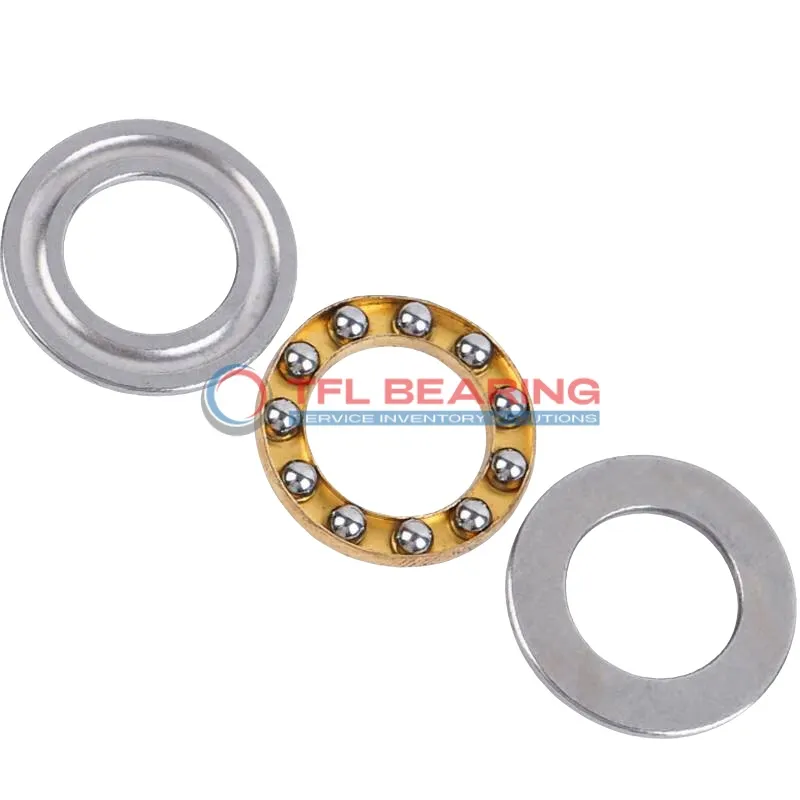

Metric Single Direction Thrust Ball Bearing 53415 M dimension drawing
Download DWG Download PDF

Features

How Does 53415 M Bearing Handle Heavy Loads?

53415 M Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 56475 lbf, making it suitable for heavy-duty applications.
The stainless steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a maximum speed of 1,800 rpm, it delivers reliable performance under demanding conditions.

What Makes 53415 M Bearing Suitable for High-Temperature Applications?

53415 M Bearing operates effectively within a temperature range of -30° to 110 °C, maintaining performance in varied environments.
The chrome steel construction resists thermal deformation, ensuring stability under heat.
Its open design allows for efficient heat dissipation, preventing overheating during prolonged use.
This makes it a dependable choice for industrial applications with fluctuating temperatures.

Engineered for Precision: 53415 M Bearing

53415 M Bearing features precise dimensions with tight tolerances, ensuring accurate alignment in machinery.
The 52100 chrome steel components provide consistent performance and reduced wear over time.
Its design minimises noise, making it ideal for applications requiring quiet operation.
With a static thrust load capacity of 137250 lbf, it excels in high-load scenarios.

Structural Advantages of 53415 M Bearing

53415 M Bearing’s robust construction includes a stainless steel cage for enhanced durability.
The 2 mm chamfer dimension facilitates easier installation and reduces stress concentrations.
Its open seal type allows for versatile lubrication options, adapting to different operational needs.
Weighing 8.1 kg, it balances strength and manageability for industrial use.

Application

Industrial Uses of 53415 M Bearing
53415 M Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open seal design simplifies lubrication, which is handy in dusty industrial settings.

What Makes 53415 M Bearing a Preferred Choice?
In automotive applications, 53415 M Bearing handles heavy axial loads in gearboxes and differential systems. Its chrome steel construction ensures longevity even under constant stress.

Built for Heavy-Duty Use: 53415 M Bearing
For wind turbines, 53415 M Bearing supports the main shaft, coping with both thrust and rotational forces. The stainless steel cage adds durability in outdoor conditions.

Medical vs Industrial: Where 53415 M Bearing Excels
While 53415 M Bearing isn’t typically used in medical devices, it shines in industrial pumps and compressors. Its metric sizing makes it a go-to for European equipment manufacturers.

Automotive vs Aerospace: Applications of 53415 M Bearing
53415 M Bearing is more suited for automotive uses like truck transmissions than aerospace due to its weight. However, its static load capacity makes it reliable for ground-based heavy equipment.
