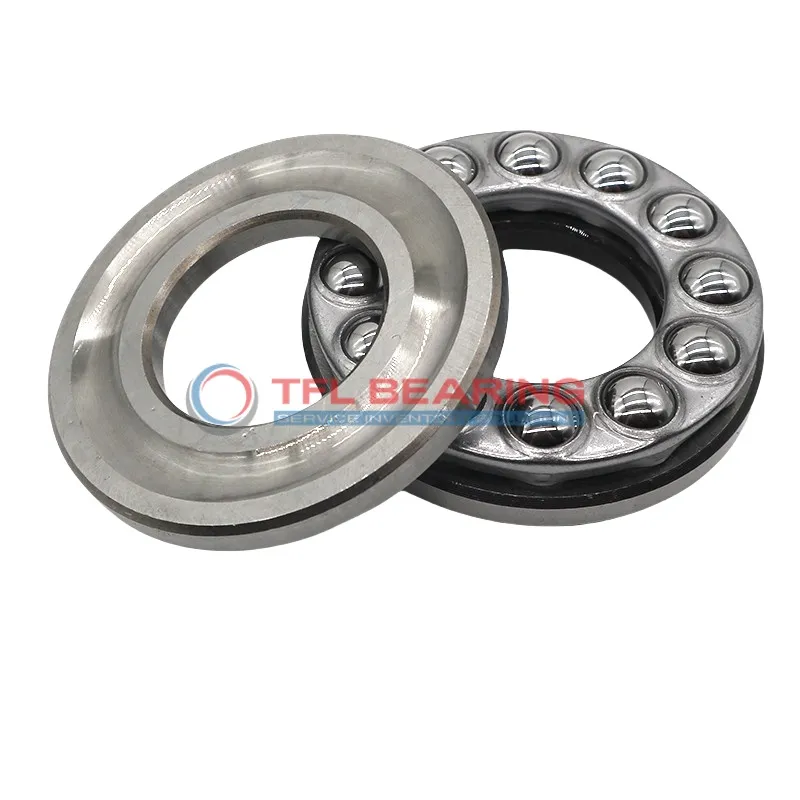

Metric Single Direction Thrust Ball Bearing 53410

Metric Single Direction Thrust Ball Bearing 53410

The 53410 is a single-direction thrust ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 35775 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. It’s well-suited for heavy-duty applications like industrial presses or large gearboxes where high thrust loads are expected.

Weighing 2.31kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53410
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Outer Dia Shaft Washer 110 mm
  • Width 45.6 mm
  • Width Tolerance +0.02mm to -0.25mm
  • Inner Dia Housing Washer 52 mm
  • Chamfer Dimension 1.5 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 35775 lbf
  • Static Thrust Load 76500 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2600 rpm
  • Weight 2.31 kg
Metric Single Direction Thrust Ball Bearing 53410 dimension drawing
Download DWG Download PDF

Features

Why Choose 53410 Bearing for Precision Tasks?

53410 Bearing is crafted with 52100 chrome steel rings and balls, ensuring high precision in thrust applications.
Its dynamic thrust load capacity of 35775 lbf makes it suitable for demanding industrial environments.

The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 2,600 rpm, it offers reliable performance without compromising efficiency.

53410 Bearing operates smoothly in temperatures ranging from -30° to 110°C, adapting to various conditions.
Its open design simplifies maintenance, making it a practical choice for long-term use.

Application

Common Applications of 53410 Bearing
53410 Bearing is widely used in heavy machinery, such as hydraulic presses and large gearboxes, where its high thrust load capacity is essential. The chrome steel construction ensures durability even in demanding industrial environments.

In automotive applications, 53410 Bearing is often found in heavy-duty transmissions and differential systems. Its robust design handles axial loads efficiently, making it a reliable choice for commercial vehicles.

For automation systems, 53410 Bearing supports robotic arms and conveyor belts, providing smooth movement under significant stress. The open seal design simplifies maintenance, which is ideal for high-use production lines.

Medical imaging devices also benefit from 53410 Bearing’s precision and stability. Its stainless steel cage reduces friction, ensuring quiet operation in sensitive equipment like MRI scanners.
