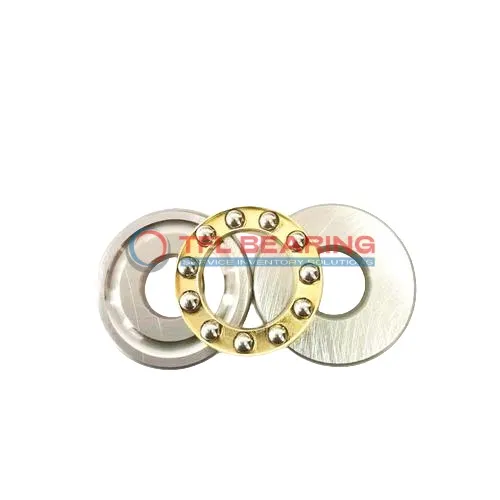

Metric Single Direction Thrust Ball Bearing 51413 M

The 51413 M is a sturdy single-direction thrust ball bearing with a 65mm bore and 140mm outer diameter, crafted from durable 52100 chrome steel. It supports heavy thrust loads up to 48600 lbf and operates smoothly at speeds up to 2200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large gearboxes where high thrust loads are expected.

Weighing 4kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 51413 M
Brand TFL
Interchangeable SKF
System of Measurement Metric
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Bore Dia 65 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 140 mm
Outer Dia Tolerance -0.025mm to 0
Outer Dia Shaft Washer 140 mm
Width 56 mm
Width Tolerance +0.02mm to -0.3mm
Inner Dia Housing Washer 68 mm
Chamfer Dimension 2 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Stainless Steel
Dynamic Thrust Load 48600 lbf
Static Thrust Load 110250 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 2200 rpm
Weight 4 kg

Metric Single Direction Thrust Ball Bearing 51413 M dimension drawing

Download DWG Download PDF

Features

Performance Features of 51413 M Bearing

51413 M Bearing is crafted with 52100 chrome steel rings and balls, offering strong resistance to heavy thrust loads.
Its dynamic thrust load capacity reaches 48,600 lbf, making it suitable for demanding industrial applications.

The stainless steel cage ensures proper ball alignment, reducing friction and extending operational life.
With a maximum speed of 2,200 rpm, it balances performance and durability under high-load conditions.

51413 M Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance, while the precise tolerances ensure consistent performance.

Application

Essential Roles of 51413 M Bearing
51413 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open design simplifies lubrication and inspection, making it suitable for demanding industrial environments.

In automotive applications, 51413 M Bearing handles axial loads in components like heavy-duty gearboxes and differential systems. Its chrome steel construction ensures durability under constant stress, while the metric sizing fits standard European and Asian vehicle designs.

For automation equipment, 51413 M Bearing provides reliable performance in robotic arms and assembly line mechanisms. The stainless steel cage offers added resistance to wear, maintaining smooth operation over extended periods.

Medical imaging devices benefit from 51413 M Bearing’s precision and stability, particularly in CT scanners and MRI machines. The consistent performance and temperature tolerance make it a dependable choice for critical healthcare applications.
