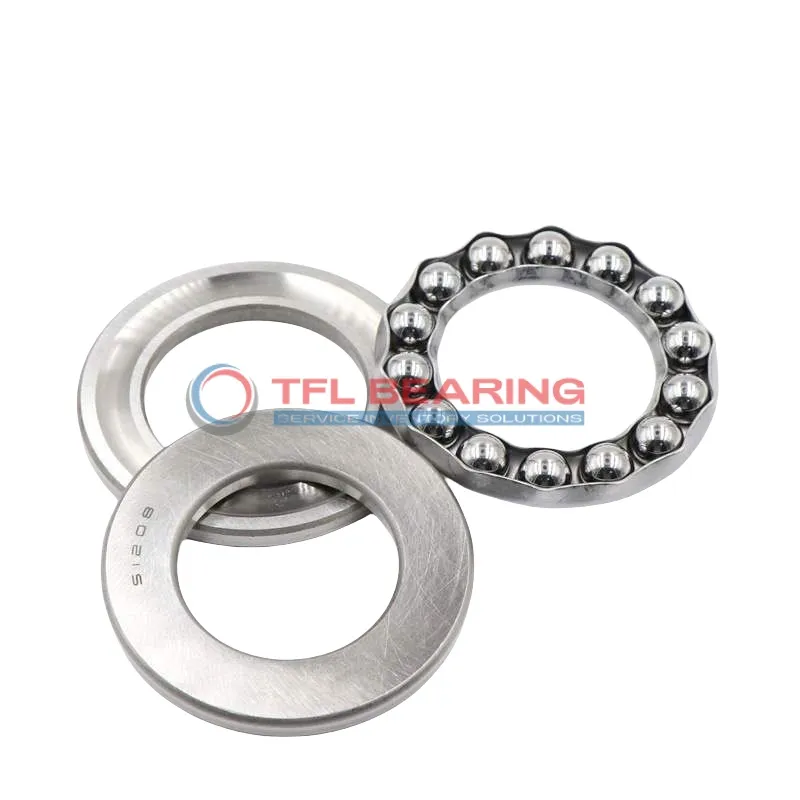

Metric Single Direction Thrust Ball Bearing 51410

The 51410 is a single-direction thrust ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 35775 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems where high thrust loads are present.

Weighing 2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 51410
Brand TFL
Interchangeable SKF
System of Measurement Metric
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.02mm to 0
Outer Dia Shaft Washer 110 mm
Width 43 mm
Width Tolerance +0.02mm to -0.25mm
Inner Dia Housing Washer 52 mm
Chamfer Dimension 1.5 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Stainless Steel
Dynamic Thrust Load 35775 lbf
Static Thrust Load 76500 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 2800 rpm
Weight 2 kg

Metric Single Direction Thrust Ball Bearing 51410 dimension drawing

Download DWG Download PDF

Features

How Does 51410 Bearing Handle Heavy Loads?

51410 Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 35775 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and extending operational life.
With a maximum speed of 2,800 rpm, it provides a balance between durability and performance.

51410 Bearing operates efficiently in temperatures ranging from -30° to 110 °C, ensuring reliability in various conditions.
Its open design simplifies maintenance, while the precise tolerances enhance overall stability.

Application

Industrial Uses of 51410 Bearing
51410 Bearing is commonly used in heavy machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open design allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes 51410 Bearing a Preferred Choice?
In automotive applications, 51410 Bearing handles axial loads in gearboxes and differential systems effectively. Its chrome steel construction provides durability, while the stainless steel cage reduces wear over time.

Perfect Fit for Automation: 51410 Bearing
For robotic arms and automated assembly lines, 51410 Bearing offers reliable performance under continuous operation. The precise tolerances ensure smooth movement, critical for maintaining accuracy in repetitive tasks.

Medical vs Industrial: Where 51410 Bearing Excels
In medical imaging devices, 51410 Bearing’s stability supports precise positioning of components. However, it truly shines in industrial settings like steel mills, where its robust design handles extreme loads effortlessly.
