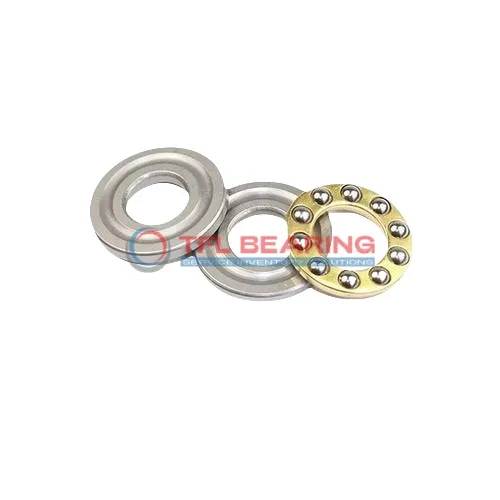

Metric Single Direction Thrust Ball Bearing 51160 M

Metric Single Direction Thrust Ball Bearing 51160 M

The 51160 M is a single-direction thrust ball bearing with a 300mm bore and 380mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 81900 lbf and operates at speeds up to 1200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.

Weighing 17.5kg, it’s built to handle substantial forces while maintaining stability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 51160 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 380 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Outer Dia Shaft Washer 376 mm
  • Width 62 mm
  • Width Tolerance +0.04mm to -0.4mm
  • Inner Dia Housing Washer 304 mm
  • Chamfer Dimension 2 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 81900 lbf
  • Static Thrust Load 396000 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1200 rpm
  • Weight 17.5 kg
Metric Single Direction Thrust Ball Bearing 51160 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 51160 M Bearing

51160 M Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 81,900 lbf, making it suitable for heavy-duty applications.
The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 1,200 rpm, it provides reliable performance in demanding conditions.

How Does 51160 M Bearing Resist Wear?

51160 M Bearing’s chrome steel construction enhances its durability, reducing wear even under heavy loads.
The precision-engineered cage minimises friction, extending the bearing’s service life.
Its static thrust load capacity of 396,000 lbf ensures stability in high-pressure environments.
This makes 51160 M Bearing a dependable choice for industrial applications.

Designed for Durability: 51160 M Bearing

51160 M Bearing features a robust design with chrome steel components for long-lasting performance.
Its wide temperature range of -30° to 110°C allows operation in various environments.
The open seal type simplifies maintenance while ensuring efficient lubrication.
With precise tolerances, it delivers consistent performance in thrust load applications.

Steel vs Ceramic Bearings: Strengths of 51160 M Bearing

51160 M Bearing uses high-quality 52100 chrome steel for superior strength and reliability.
This material choice provides excellent resistance to wear and high thrust loads.
The bearing’s large size (300 mm×380 mm×62 mm) makes it ideal for heavy machinery.
Its compliance with RoHS and REACH standards ensures environmental safety.

Application

Key Fields for 51160 M Bearing
51160 M Bearing is commonly used in heavy industrial machinery, such as large presses and hydraulic systems, where its high thrust load capacity is essential. The open design allows for straightforward lubrication, ensuring longevity in demanding conditions.

In wind turbine applications, 51160 M Bearing handles axial loads in gearboxes, contributing to reliable energy production. Its chrome steel construction provides the necessary strength for continuous operation in variable weather conditions.

For construction equipment like cranes, 51160 M Bearing supports vertical loads in rotating assemblies, ensuring stability and safety. The stainless steel cage adds durability, making it suitable for long-term use in rugged environments.

Where Is 51160 M Bearing Used?
51160 M Bearing plays a key role in marine propulsion systems, managing thrust loads in ship engines and propellers. Its corrosion-resistant materials make it ideal for saltwater environments.

In mining machinery, 51160 M Bearing withstands extreme loads in crushers and conveyors. The large bore diameter accommodates heavy-duty shafts, ensuring smooth operation under stress.
