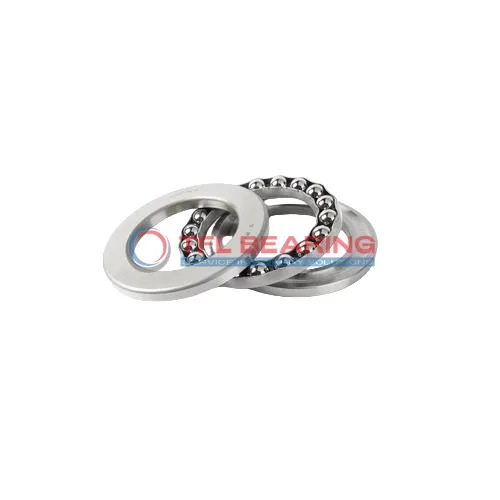

Metric Single Direction Thrust Ball Bearing 510/750 F

The 510/750 F is a large single-direction thrust ball bearing with a 750mm bore and 820mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 81900 lbf and operates at speeds up to 900 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Perfect for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.

Weighing 30kg, it’s built to handle substantial forces while maintaining reliability. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 510/750 F
Brand TFL
Interchangeable SKF
System of Measurement Metric
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Bore Dia 750 mm
Bore Dia Tolerance -0.075mm to 0
Outer Dia 820 mm
Outer Dia Tolerance -0.1mm to 0
Outer Dia Shaft Washer 817.5 mm
Width 53 mm
Width Tolerance +0.07mm to -0.75mm
Inner Dia Housing Washer 752.5 mm
Chamfer Dimension 1.5 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Stainless Steel
Dynamic Thrust Load 81900 lbf
Static Thrust Load 686250 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 900 rpm
Weight 30 kg

Metric Single Direction Thrust Ball Bearing 510/750 F dimension drawing

Download DWG Download PDF

Features

How Does 510/750 F Bearing Handle Heavy Loads?

510/750 F Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to extreme thrust loads.
Its dynamic thrust load capacity reaches 81900 lbf, making it suitable for heavy-duty industrial applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear during operation.
With a maximum speed of 900 rpm, it delivers reliable performance under high-load conditions.

510/750 F Bearing operates efficiently within a temperature range of -30° to 110°C.
Its durable construction and precise tolerances ensure long service life with minimal maintenance.

Application

Industrial Uses of 510/750 F Bearing
This large-sized bearing is commonly used in heavy machinery like hydraulic presses and rolling mills, where its high thrust load capacity handles intense axial forces. The open design simplifies lubrication access, extending service life in demanding conditions.

Where Is 510/750 F Bearing Used?
You’ll often spot 510/750 F Bearing in wind turbine gearboxes, where its chrome steel construction withstands constant rotational stress. The metric dimensions make it a straightforward replacement for European-manufactured equipment.

Built for Heavy-Duty Use: 510/750 F Bearing
In steel production plants, 510/750 F Bearing reliably supports conveyor systems moving molten materials. Its stainless steel cage prevents deformation under extreme temperatures common in foundries.

Automotive vs Aerospace: Applications of 510/750 F Bearing
While too large for most vehicles, 510/750 F Bearing suits aircraft landing gear mechanisms requiring massive thrust support. The precise tolerances ensure smooth operation despite frequent high-impact loads.

Essential Roles of 510/750 F Bearing
For bridge turntables and rotating platforms, 510/750 F Bearing provides stable axial rotation over decades. The 30kg weight indicates robust construction ideal for infrastructure projects with minimal maintenance access.
