Metric Single Direction Thrust Ball Bearing 1028

Metric Single Direction Thrust Ball Bearing 1028

The 1028 is a single-direction thrust ball bearing with a 140mm bore and 185mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 6385 lbf and operates at speeds up to 2000 RPM.

Its open design requires regular lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.

Weighing 2.32kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1028
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 185 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 31 mm
  • Width Tolerance +0.025mm to -0.4mm
  • Inner Dia Housing Washer 140.2 mm
  • Chamfer Dimension 0.5 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 6385 lbf
  • Static Thrust Load 67391 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 2.32 kg

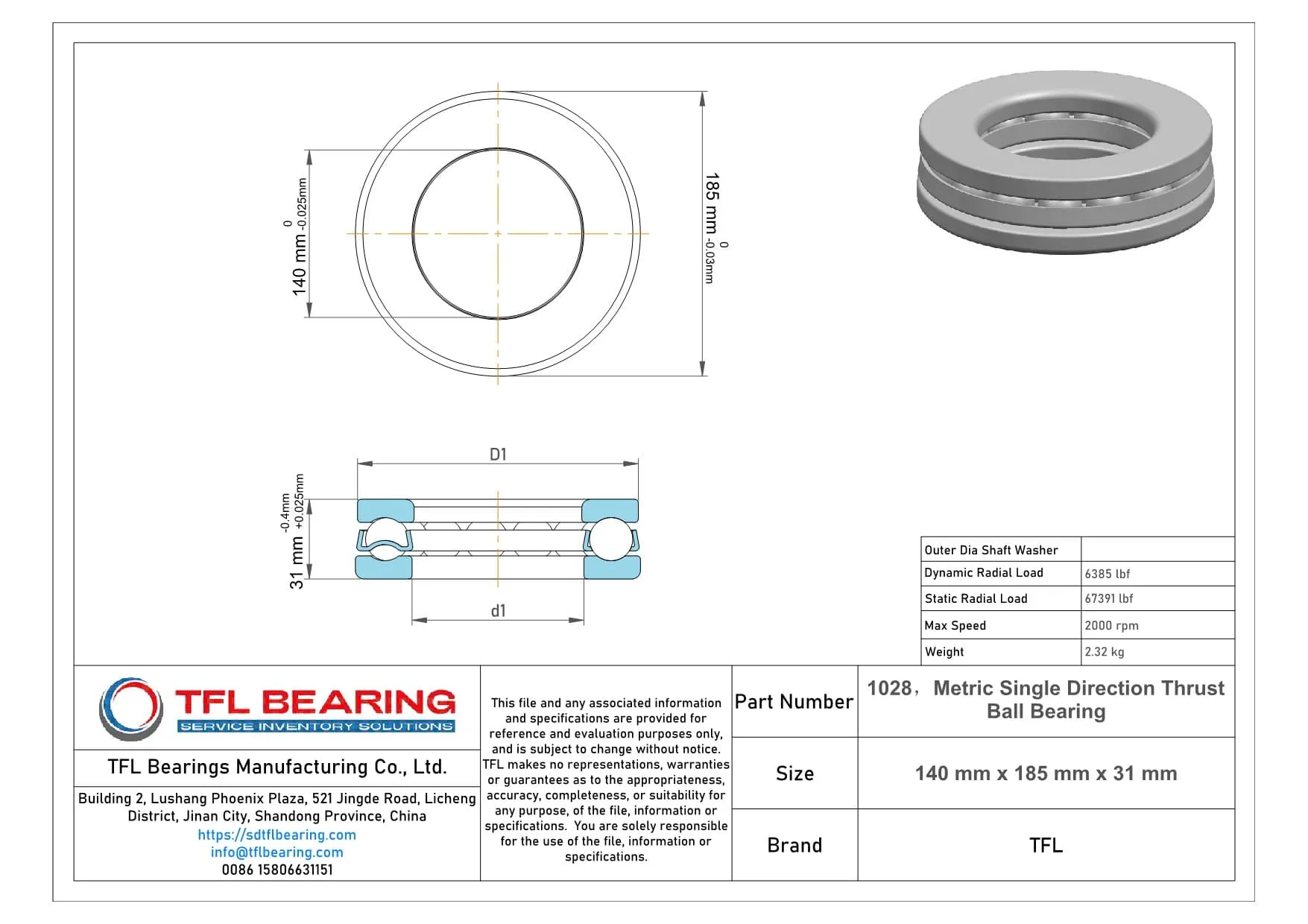

Metric Single Direction Thrust Ball Bearing 1028 dimension drawing
Download DWG Download PDF

Features

Why Choose 1028 Bearing for Precision Tasks?

1028 Bearing is crafted from 52100 chrome steel, offering reliable performance in thrust applications.
Its dynamic thrust load capacity of 6385 lbf ensures stability under pressure.

The chrome steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 2,000 rpm, it balances precision and durability.

1028 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 1028 Bearing
1028 Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its high static thrust load capacity handles substantial axial forces.
The open design simplifies lubrication, ensuring smooth operation in demanding environments.

Where Is 1028 Bearing Used?
In automotive applications, 1028 Bearing fits well in clutch mechanisms and transmission systems, thanks to its durable chrome steel construction.
Its metric sizing makes it a reliable choice for European and Asian vehicle manufacturers.

Built for Heavy-Duty Use: 1028 Bearing
1028 Bearing excels in construction equipment, such as crane turntables, where its 31 mm width provides stability under heavy loads.
The temperature range of -30° to 110°C ensures performance in varying weather conditions.

Automotive vs Aerospace: Applications of 1028 Bearing
While 1028 Bearing is popular in automotive transmissions, its high load capacity also suits aerospace landing gear mechanisms.
The chrome steel rings and balls offer long-lasting performance in both industries.

Essential Roles of 1028 Bearing
In medical imaging devices, 1028 Bearing’s precision ensures smooth rotation for accurate scans.
Its compliance with RoHS and REACH standards makes it safe for sensitive environments.
