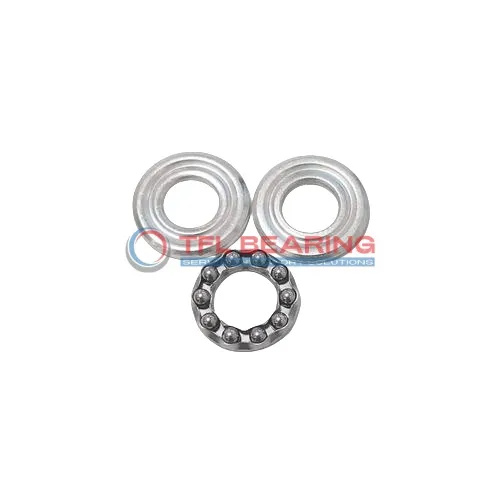

Metric Single Direction Thrust Ball Bearing 1024

Brand: TFL Bearing Interchangeable: SKF 1024 120 mm × 160 mm × 27 mm Metric Open
Part number: 1024
Metric Single Direction Thrust Ball Bearing 1024
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width27 mm
Width Tolerance+0.025mm to -0.3mm
Inner Dia Housing Washer120.2 mm
Chamfer Dimension0.5 mm
Performance
Dynamic Thrust Load5,630 lbf
Static Thrust Load58,751 lbf
Temperature Range-30° to 110 °C
Max Speed2,220 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionThrust
Seal TypeOpen
LubricationRequired
Weight1.59 kg
Material
Ring Material52100 Chrome Steel
Ball Material52100 Chrome Steel
Cage MaterialChrome Steel
Compliance
RoHSCompliant
REACHCompliant

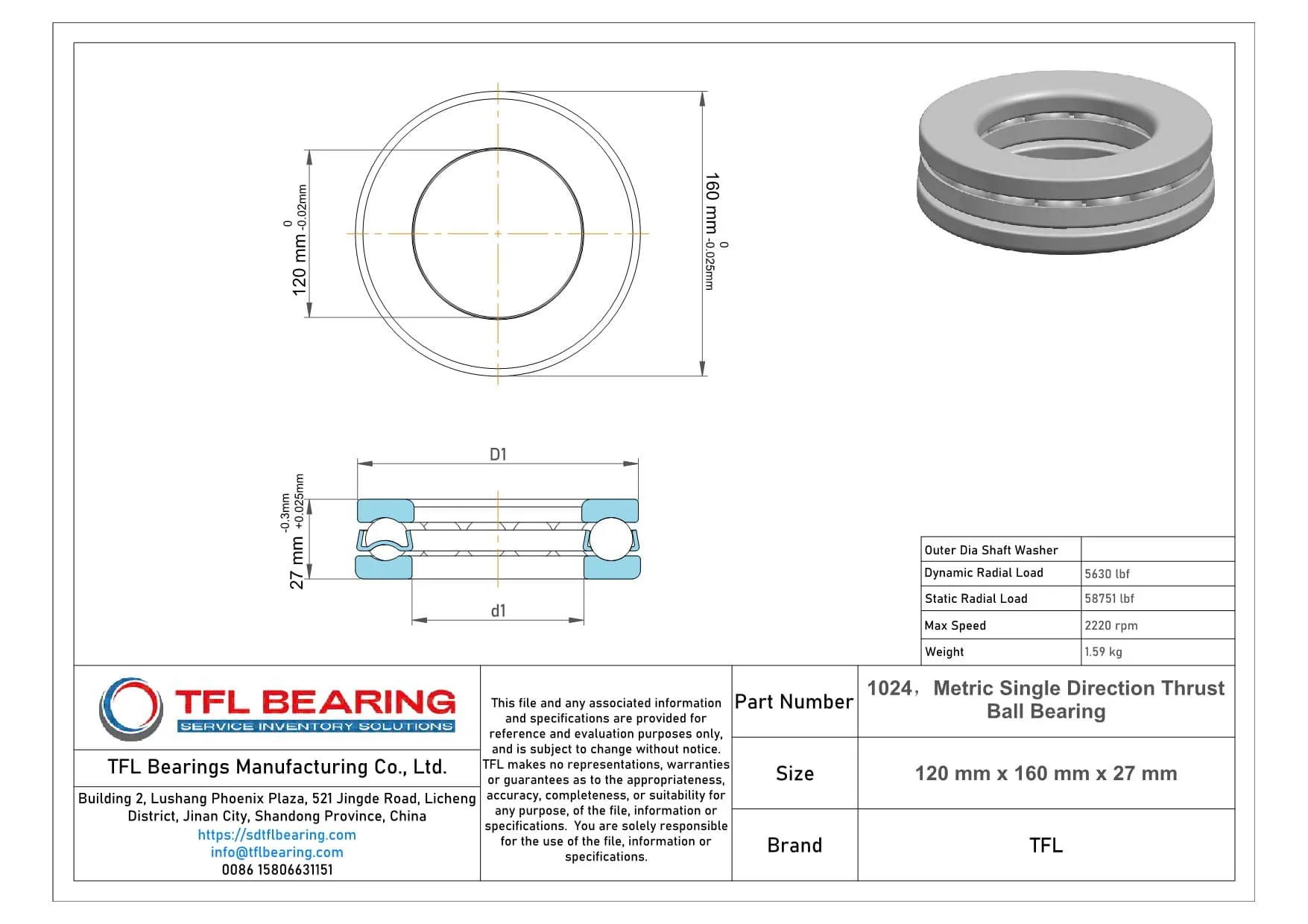

Dimension drawing · click to enlarge

Description

The 1024 is a single-direction thrust ball bearing with a 120mm bore and 160mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 5630 lbf and operates at speeds up to 2220 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for heavy-duty applications like industrial presses or lifting equipment where high thrust loads are expected.

Weighing 1.59kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

Performance Features of 1024 Bearing

1024 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and corrosion.
Its dynamic thrust load capacity of 5630 lbf ensures reliable performance in heavy-duty applications.

The chrome steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 2,220 rpm, it balances efficiency and durability.

1024 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1024 Bearing
1024 Bearing is commonly used in heavy machinery like hydraulic presses and industrial pumps, where its high static thrust load capacity handles substantial axial forces. The open design simplifies lubrication, ensuring long service life in demanding conditions.

What Makes 1024 Bearing a Preferred Choice?
In automotive applications, 1024 Bearing fits well in clutch release mechanisms and gearbox supports, thanks to its precise metric dimensions. Its chrome steel construction offers durability, even under frequent load changes.

Built for Heavy-Duty Use: 1024 Bearing
For conveyor systems in mining or manufacturing, 1024 Bearing provides reliable performance with its robust design. The wide temperature range makes it suitable for environments with fluctuating thermal conditions.

Automotive vs Aerospace: Applications of 1024 Bearing
While 1024 Bearing is popular in car transmissions, its precision also suits aerospace components like actuator systems. The balance between load capacity and speed tolerance ensures versatility across industries.

Perfect Fit for Automation: 1024 Bearing
In robotic assembly lines, 1024 Bearing supports linear motion modules with smooth operation. The stainless steel cage reduces friction, making it ideal for repetitive, high-precision tasks.
