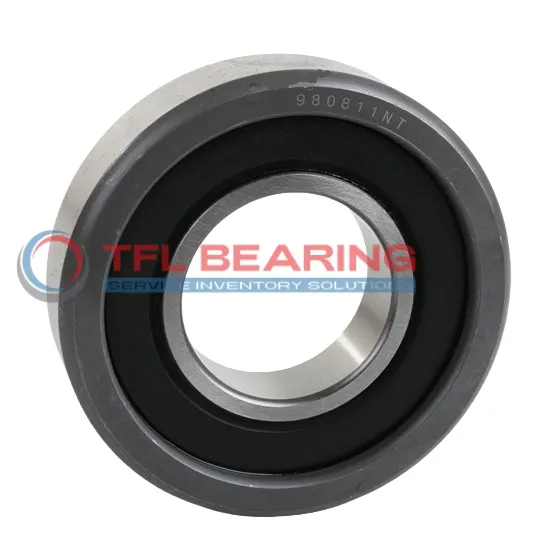

Mast Guide Bearings MG 85mm‑6

Mast Guide Bearings MG 85mm‑6

The MG 85mm-6 mast guide bearing is a sturdy unit with a 150mm inner diameter and 175.35mm outer diameter, designed for heavy-duty applications. Its robust construction supports dynamic loads up to 192,000 N and static loads up to 258,000 N.

With an inner ring width of 59.05mm and outer ring width of 78.09mm, it offers a balanced design for stability. The chamfered edges ensure smooth installation and reduced stress points.

Weighing 8.1873kg, this bearing is built to last in demanding environments. Ideal for use in construction equipment or industrial machinery where high load capacity is essential.

Its durable materials and precise dimensions make it a reliable choice for long-term performance. Suitable for applications requiring consistent strength and reliability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 85mm‑6
  • Brand TFL & OEM
  • Inner Diameter (d) 150.000 mm
  • Outer Diameter (D) 175.35 mm
  • Inner Ring Width (b) 59.05 mm
  • Outer Ring Width (B) 78.090 mm
  • Radius (R) chamfer
  • Dynamic Capacity (Cr.) 192,000 N
  • Static Capacity (Cor.) 258,000 N
  • Weight 8.1873 Kg
Mast Guide Bearings MG 85mm‑6 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 85mm‑6 Bearing

MG 85mm‑6 Bearing is built to handle high dynamic loads, with a capacity of 192,000 N, ensuring reliable performance.
Its static capacity of 258,000 N makes it suitable for heavy-duty applications where stability is crucial.

The dimensions of 150.000 mm x 175.35 mm x 78.090 mm provide a robust fit for industrial machinery.
With a weight of 8.1873 Kg, it balances strength and practicality for easy integration.

The chamfered edges reduce stress concentrations, enhancing durability.
This design ensures smooth operation even under demanding conditions.

Application

Industrial Uses of MG 85mm‑6 Bearing
MG 85mm‑6 Bearing is commonly used in heavy machinery, such as cranes and lifts, where its high dynamic capacity ensures reliable performance under substantial loads. The robust design makes it suitable for demanding industrial environments.

In construction equipment, MG 85mm‑6 Bearing provides stability for mast guide systems, thanks to its precise dimensions and durable construction. Its static capacity ensures it can handle sudden loads without compromising performance.

For marine applications, MG 85mm‑6 Bearing’s resistance to heavy loads and wear makes it ideal for ship cranes and hoisting systems. The chamfered edges also help reduce stress concentrations during operation.

What Makes MG 85mm‑6 Bearing a Preferred Choice?
MG 85mm‑6 Bearing is often chosen for wind turbine yaw systems due to its ability to handle both dynamic and static loads efficiently. The large inner diameter accommodates heavy shafts commonly found in renewable energy setups.

In mining equipment, MG 85mm‑6 Bearing’s high load capacity and durability make it a reliable option for conveyor systems and drilling rigs. The weight distribution ensures even wear over extended periods of use.

Built for Heavy-Duty Use: MG 85mm‑6 Bearing
MG 85mm‑6 Bearing excels in agricultural machinery, particularly in combines and tractors, where its strength and precision are essential. The outer ring width provides additional support for high-stress applications.

For material handling systems, MG 85mm‑6 Bearing’s static capacity ensures it can support heavy loads without deformation. The chamfer design also simplifies installation and maintenance in tight spaces.
