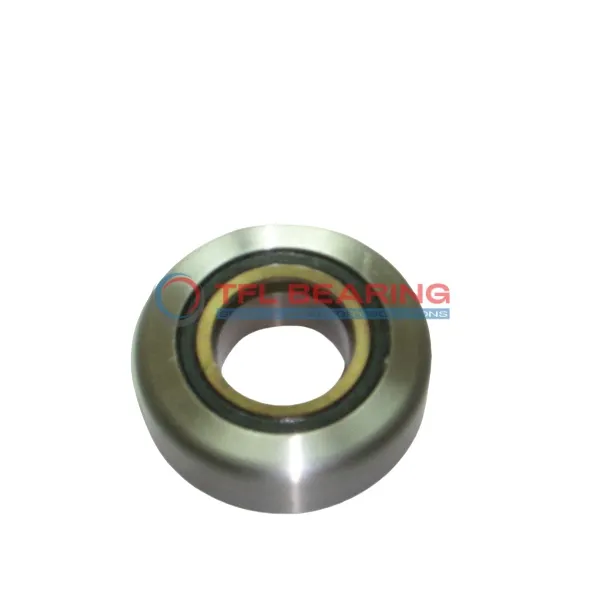

Mast Guide Bearings MG 75mm‑2

Mast Guide Bearings MG 75mm‑2

The MG 75mm‑2 is a robust mast guide bearing with a 75mm inner diameter and 180mm outer diameter, designed for heavy-duty use. Its compact width of 45mm makes it suitable for tight spaces while maintaining strength.

With a dynamic load capacity of 122,940 N and static load capacity of 86,500 N, it handles significant forces without compromising performance. The 10mm radius ensures smooth operation and reduces stress on the bearing.

Made from durable materials, this bearing is built to last in demanding environments. Its design allows for easy installation and maintenance, saving time and effort.

Ideal for applications like marine equipment or construction machinery, where reliability is key. Weighing 5.0349 kg, it offers a solid balance of strength and manageability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 75mm‑2
  • Brand TFL & OEM
  • Inner Diameter (d) 75.000 mm
  • Outer Diameter (D) 180.00 mm
  • Inner Ring Width (b) 37 mm
  • Outer Ring Width (B) 45.000 mm
  • Radius (R) 10 mm
  • Dynamic Capacity (Cr.) 122,940 N
  • Static Capacity (Cor.) 86,500 N
  • Weight 5.0349 Kg
Mast Guide Bearings MG 75mm‑2 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 75mm‑2 Bearing

MG 75mm‑2 Bearing is built with a robust design, featuring an inner diameter of 75.000 mm and an outer diameter of 180.00 mm.
Its dynamic capacity of 122,940 N ensures reliable performance under heavy loads.
The bearing’s outer ring width of 45.000 mm provides stability, while the 10 mm radius enhances durability.
Weighing 5.0349 kg, it balances strength and practicality for industrial applications.

Application

Industrial Uses of MG 75mm‑2 Bearing
MG 75mm‑2 Bearing is commonly used in heavy machinery, such as cranes and lifts, where its high dynamic capacity ensures reliable performance under substantial loads. The robust design makes it suitable for demanding environments like construction sites.

In automation systems, MG 75mm‑2 Bearing provides smooth guidance for linear motion components, such as robotic arms and conveyor belts. Its precise dimensions help maintain accuracy in repetitive tasks.

For wind turbine applications, MG 75mm‑2 Bearing’s durability and static capacity make it ideal for mast guidance systems. The large outer diameter distributes loads evenly, enhancing longevity in harsh weather conditions.
