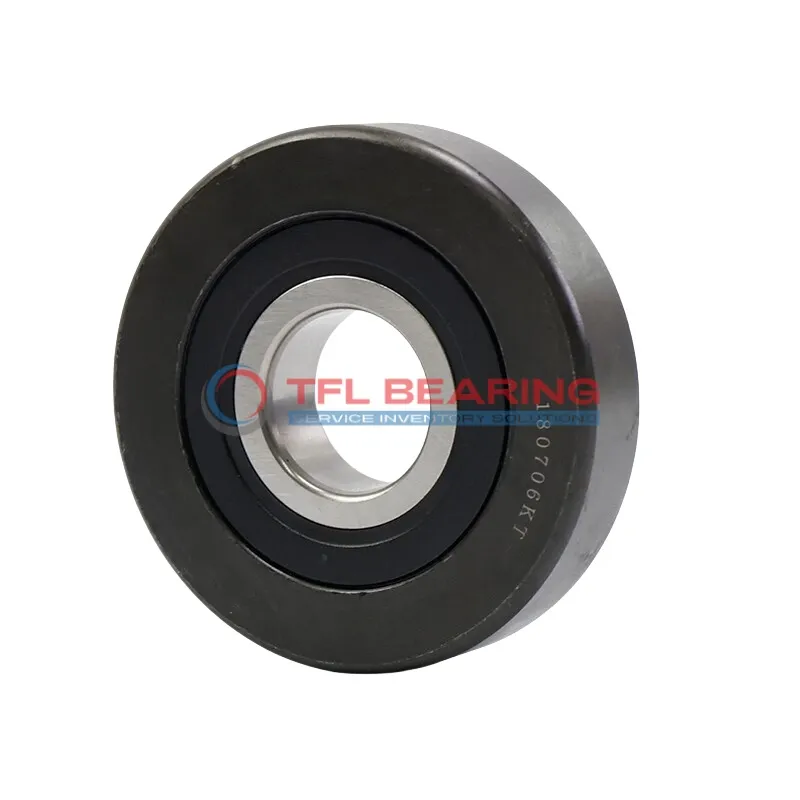

Mast Guide Bearings MG 308 HD‑1

Mast Guide Bearings MG 308 HD‑1

The MG 308 HD‑1 is a sturdy mast guide bearing with a 40mm inner diameter and 116.9mm outer diameter, designed for heavy-duty use. It can handle dynamic loads up to 40,760 N and static loads up to 24,020 N, making it reliable for demanding applications.

With an inner ring width of 23mm and outer ring width of 28mm, it offers a balanced design for stability. The 6.75mm radius ensures smooth operation and reduces stress during use.

Weighing 1.6964 kg, it’s robust yet manageable for installation. Ideal for construction equipment or industrial machinery where high load capacity is essential. Its durable build ensures long service life even in tough conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 HD‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 116.90 mm
  • Inner Ring Width (b) 23 mm
  • Outer Ring Width (B) 28.000 mm
  • Radius (R) 6.75 mm
  • Dynamic Capacity (Cr.) 40,760 N
  • Static Capacity (Cor.) 24,020 N
  • Weight 1.6964 Kg
Mast Guide Bearings MG 308 HD‑1 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 HD‑1 Bearing

MG 308 HD‑1 Bearing is built with a robust design, featuring an inner diameter of 40.000 mm and an outer diameter of 116.90 mm.
Its dynamic capacity of 40,760 N ensures reliable performance under heavy loads.

The bearing’s inner ring width of 23 mm and outer ring width of 28.000 mm provide stability in various applications.
With a static capacity of 24,020 N, it offers durability and long service life.

MG 308 HD‑1 Bearing’s radius of 6.75 mm enhances its ability to handle misalignment.
Weighing 1.6964 Kg, it balances strength and ease of installation.

Application

Common Applications of MG 308 HD‑1 Bearing
MG 308 HD‑1 Bearing is widely used in industrial machinery, especially in mast guide systems where stability and load capacity are key. Its robust design handles heavy loads effortlessly, making it suitable for construction equipment.

In automotive applications, MG 308 HD‑1 Bearing ensures smooth operation in steering columns and suspension systems. The precise dimensions and high dynamic capacity make it a reliable choice for vehicle manufacturers.

For automation systems, MG 308 HD‑1 Bearing supports robotic arms and conveyor belts, where consistent performance is essential. The durable construction ensures long service life even in demanding environments.

In household appliances like washing machines, MG 308 HD‑1 Bearing provides quiet and efficient operation. Its balanced design reduces vibration, enhancing overall user experience.
