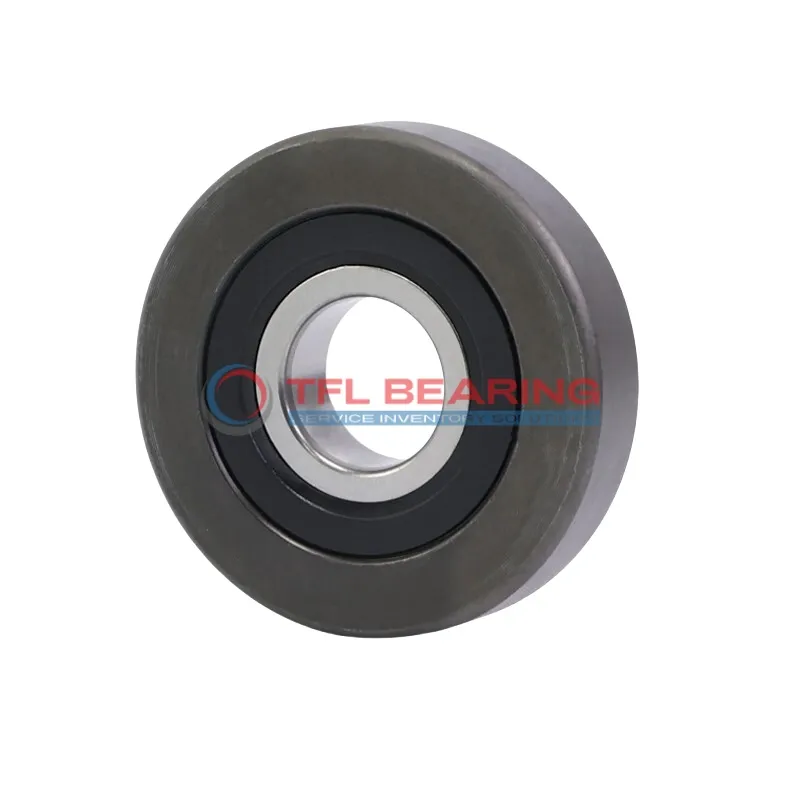

Mast Guide Bearings MG 308 DDL‑7

Mast Guide Bearings MG 308 DDL‑7

The MG 308 DDL‑7 mast guide bearing is a sturdy unit measuring 40mm in inner diameter and 89.9mm in outer diameter, with a width of 29mm. Its compact design makes it suitable for tight spaces while maintaining strength.

With a dynamic load capacity of 29,520 N and a static load capacity of 18,140 N, it handles heavy loads with ease. The bearing’s durable construction ensures reliable performance in demanding conditions.

Its 6mm radius allows for smooth operation, reducing stress on adjacent components. Weighing just under 1kg, it’s lightweight yet robust for its size.

Ideal for mast guide applications, this bearing is a dependable choice for industrial machinery and equipment where precision and durability are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 DDL‑7
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 89.90 mm
  • Inner Ring Width (b) 23.8 mm
  • Outer Ring Width (B) 29.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 29,520 N
  • Static Capacity (Cor.) 18,140 N
  • Weight 0.9525 Kg
Mast Guide Bearings MG 308 DDL‑7 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 308 DDL‑7 Bearing

MG 308 DDL‑7 Bearing is built with precise dimensions of 40.000 mm x 89.90 mm x 29.000 mm, ensuring a perfect fit for various applications.
Its dynamic capacity of 29,520 N allows it to handle significant loads while maintaining smooth operation.

The bearing’s static capacity of 18,140 N ensures reliability even under heavy-duty conditions.
With a weight of 0.9525 Kg, it offers a balance between strength and ease of handling.

The 6 mm radius design enhances durability and reduces stress concentrations.
This makes MG 308 DDL‑7 Bearing suitable for demanding industrial environments.

Application

Industrial Uses of MG 308 DDL‑7 Bearing
MG 308 DDL‑7 Bearing is commonly used in heavy machinery, such as construction equipment and cranes, where its robust design handles significant radial loads. The 40mm bore size makes it suitable for various shaft configurations.

In automotive applications, MG 308 DDL‑7 Bearing fits well in steering systems and suspension components, offering reliable performance under constant movement. Its 89.9mm outer diameter ensures stability in tight spaces.

For automation systems, MG 308 DDL‑7 Bearing supports robotic arms and conveyor belts, thanks to its high dynamic capacity of 29,520 N. The 29mm outer ring width provides added durability in repetitive motion scenarios.

Where Is MG 308 DDL‑7 Bearing Used?
MG 308 DDL‑7 Bearing is ideal for agricultural machinery, like tractors and harvesters, where its 23.8mm inner ring width withstands harsh conditions. The 6mm radius also helps reduce stress concentrations.

In material handling equipment, MG 308 DDL‑7 Bearing ensures smooth operation in forklifts and pallet jacks. Its 0.9525 kg weight strikes a balance between strength and ease of installation.
