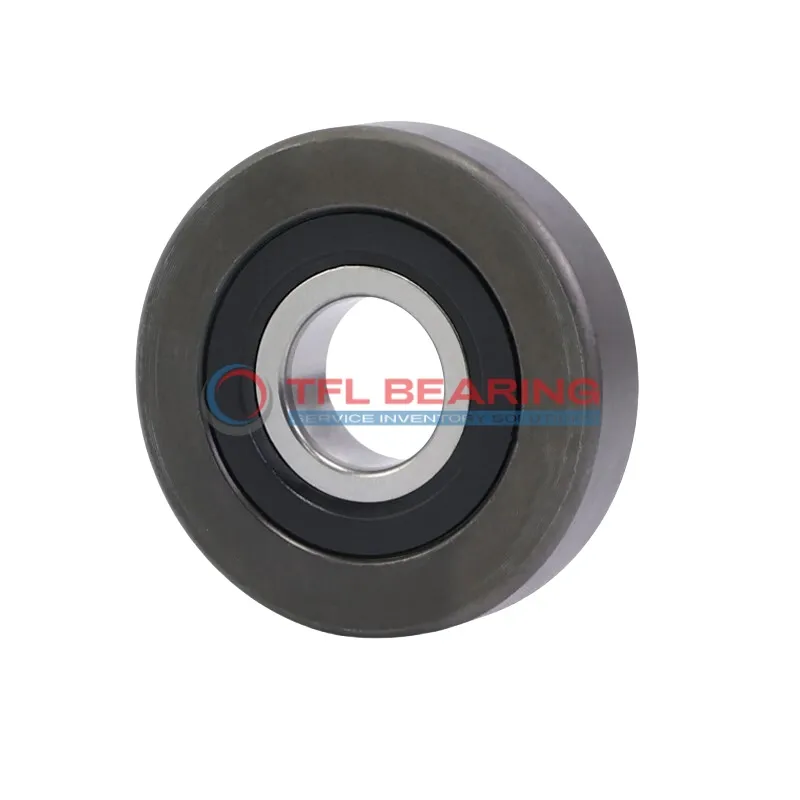

Mast Guide Bearings MG 308 DDL‑1

Mast Guide Bearings MG 308 DDL‑1

The MG 308 DDL‑1 is a mast guide bearing with a 40mm inner diameter and 89.9mm outer diameter, crafted for durability and precision. Its compact design, at 29mm wide, makes it suitable for tight spaces while handling dynamic loads up to 33,980 N.

The bearing’s robust construction ensures reliable performance under static loads of 25,740 N, ideal for heavy-duty applications. Its 6.35mm radius provides smooth operation, reducing friction and wear over time.

Weighing just 0.9072kg, it’s lightweight yet sturdy, perfect for mast guidance systems or industrial machinery. The dimensions and load capacity make it a versatile choice for engineers and maintenance teams.

This model is interchangeable with OEM parts, offering a cost-effective solution for replacements. It’s well-suited for applications requiring precise alignment and long-lasting performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 308 DDL‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 40.000 mm
  • Outer Diameter (D) 89.90 mm
  • Inner Ring Width (b) 28.77 mm
  • Outer Ring Width (B) 29.000 mm
  • Radius (R) 6.35 mm
  • Dynamic Capacity (Cr.) 33,980 N
  • Static Capacity (Cor.) 25,740 N
  • Weight 0.9072 Kg
Mast Guide Bearings MG 308 DDL‑1 dimension drawing
Download DWG Download PDF

Features

How Is MG 308 DDL‑1 Bearing Engineered for Reliability?

MG 308 DDL‑1 Bearing features a robust design with a dynamic capacity of 33,980 N, ensuring reliable performance under heavy loads.
The precise dimensions of 40.000 mm x 89.90 mm x 29.000 mm make it suitable for applications requiring exact fits.
Its static capacity of 25,740 N provides stability and durability in various operating conditions.
With a weight of 0.9072 kg, it balances strength and ease of handling.

Application

Industrial Uses of MG 308 DDL‑1 Bearing
MG 308 DDL‑1 Bearing is commonly used in heavy machinery, such as construction equipment and industrial presses, where its high dynamic capacity ensures reliable performance under load. The robust design makes it suitable for environments with frequent shock and vibration.

In automotive applications, MG 308 DDL‑1 Bearing can be found in steering systems and suspension components, providing smooth operation and long service life. Its precise dimensions and weight distribution contribute to better handling and stability.

For automation systems, MG 308 DDL‑1 Bearing is a solid choice for robotic arms and conveyor belts, thanks to its durability and consistent performance. The bearing’s design allows for easy integration into various automated setups.

Where Is MG 308 DDL‑1 Bearing Used?
MG 308 DDL‑1 Bearing is often seen in agricultural machinery, like tractors and harvesters, where it handles heavy loads and harsh conditions. Its static capacity ensures it can withstand prolonged use without failure.

In material handling equipment, MG 308 DDL‑1 Bearing supports smooth movement in cranes and forklifts. The bearing’s dimensions and weight make it a practical option for lifting and transporting heavy goods.

Built for Heavy-Duty Use: MG 308 DDL‑1 Bearing
MG 308 DDL‑1 Bearing excels in mining equipment, where its high load capacity and resistance to wear are essential. The bearing’s construction materials ensure it can endure abrasive environments.

For wind turbines, MG 308 DDL‑1 Bearing provides reliable performance in rotor assemblies, contributing to efficient energy generation. Its design minimizes friction, enhancing overall turbine efficiency.
