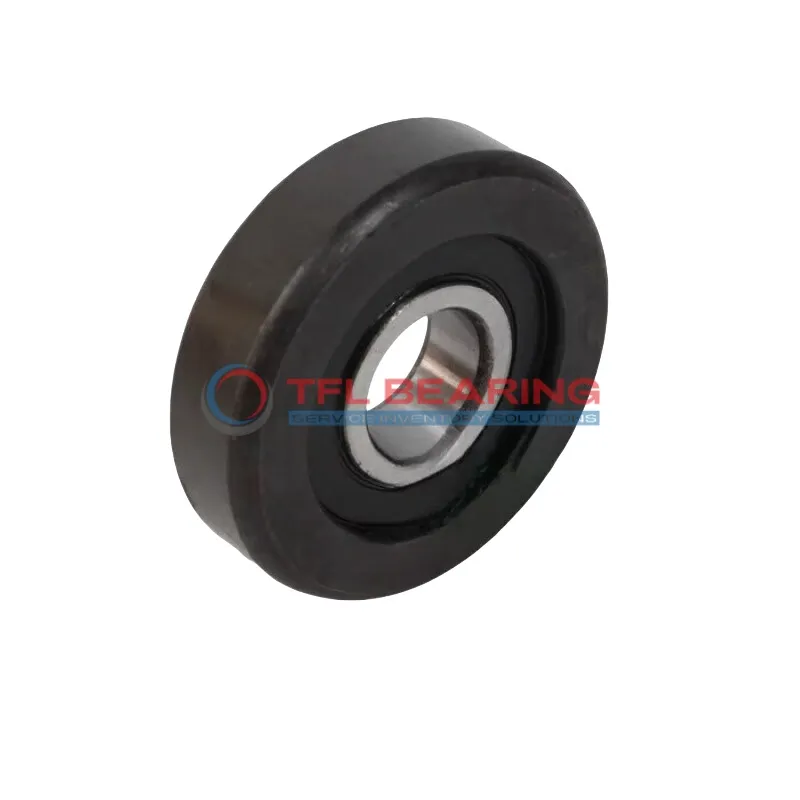

Mast Guide Bearings MG 307 M‑1

Mast Guide Bearings MG 307 M‑1

The MG 307 M-1 is a mast guide bearing with a 35mm inner diameter and 88.2mm outer diameter, designed for sturdy performance. Its compact size (31.5mm width) and 4mm radius make it easy to fit into tight spaces.

This bearing handles dynamic loads up to 100,000 N and static loads up to 135,000 N, offering reliable strength for heavy-duty use. The chrome steel construction ensures durability in demanding conditions.

Its design includes a smooth inner and outer ring, reducing friction and wear over time. Weighing 1.134kg, it’s robust yet manageable for installation.

Ideal for mast guidance systems or industrial machinery, this bearing is a practical choice for engineers and maintenance teams. It’s also compatible with OEM replacements, ensuring easy sourcing.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 M‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 88.20 mm
  • Inner Ring Width (b) 26 mm
  • Outer Ring Width (B) 31.500 mm
  • Radius (R) 4 mm
  • Dynamic Capacity (Cr.) 100,000 N
  • Static Capacity (Cor.) 135,000 N
  • Weight 1.134 Kg
Mast Guide Bearings MG 307 M‑1 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 307 M‑1 Bearing

MG 307 M‑1 Bearing is built with a robust design, handling dynamic loads up to 100,000 N and static loads up to 135,000 N.
Its dimensions (35.000 mm x 88.20 mm x 31.500 mm) make it suitable for various industrial applications.
The bearing’s 4 mm radius ensures smooth operation and reduces stress concentration.
With a weight of 1.134 Kg, it offers a balance between strength and ease of handling.

Application

Industrial Uses of MG 307 M‑1 Bearing
MG 307 M‑1 Bearing is commonly used in construction equipment, particularly in mast guide systems where stability and load capacity are key. Its robust design handles dynamic loads up to 100,000 N, making it suitable for heavy lifting applications.

In automation systems, MG 307 M‑1 Bearing ensures smooth movement in robotic arms and conveyor belts. The precise dimensions (35.000 mm x 88.20 mm x 31.500 mm) allow for seamless integration into various machinery setups.

For industrial fans and blowers, MG 307 M‑1 Bearing’s high static capacity (135,000 N) provides reliable performance under constant stress. The 4 mm radius also reduces friction, extending the bearing’s lifespan in high-speed environments.
