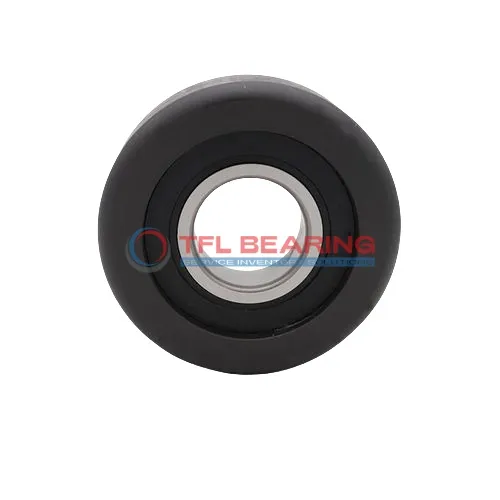

Mast Guide Bearings MG 307 DDL‑3

Mast Guide Bearings MG 307 DDL‑3

The MG 307 DDL‑3 is a mast guide bearing measuring 35mm in inner diameter and 81.5mm in outer diameter, with a width of 26mm. Its compact yet sturdy design makes it suitable for various industrial applications.

This bearing can handle dynamic loads up to 25,800 N and static loads up to 21,070 N, ensuring reliable performance under pressure. The 6mm radius provides smooth operation and reduces stress on the bearing.

Made from durable materials, it weighs just 0.567kg, offering a good balance between strength and lightness. Its dimensions and load capacity make it ideal for use in mast guidance systems and similar machinery.

The bearing’s design ensures easy installation and maintenance, making it a practical choice for engineers and maintenance teams. It’s well-suited for environments where precision and durability are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 DDL‑3
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 81.50 mm
  • Inner Ring Width (b) 25.8 mm
  • Outer Ring Width (B) 26.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 25,800 N
  • Static Capacity (Cor.) 21,070 N
  • Weight 0.567 Kg
Mast Guide Bearings MG 307 DDL‑3 dimension drawing
Download DWG Download PDF

Features

How Is MG 307 DDL-3 Bearing Engineered for Reliability?

MG 307 DDL-3 Bearing features a robust design with a dynamic capacity of 25,800 N, ensuring reliable performance under heavy loads.
Its static capacity of 21,070 N further enhances its durability in demanding applications.
The precise dimensions (35.000 mm x 81.50 mm x 26.000 mm) ensure a perfect fit for various machinery.
With a weight of 0.567 Kg, it balances strength and ease of installation.

Application

Industrial Uses of MG 307 DDL‑3 Bearing
MG 307 DDL‑3 Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining smooth movement, essential for safety and efficiency.

Where Is MG 307 DDL‑3 Bearing Used?
You’ll find MG 307 DDL‑3 Bearing in agricultural machinery, where its durability withstands harsh conditions like dust and vibrations. The high dynamic capacity ensures reliable performance in tractors and harvesters.

Built for Heavy-Duty Use: MG 307 DDL‑3 Bearing
MG 307 DDL‑3 Bearing excels in mining equipment, supporting operations like drilling and material handling. The stainless steel construction resists corrosion, making it suitable for challenging environments.

Automotive vs Aerospace: Applications of MG 307 DDL‑3 Bearing
In automotive applications, MG 307 DDL‑3 Bearing is used in steering systems, providing precise control. For aerospace, its lightweight yet strong design suits auxiliary equipment like landing gear mechanisms.

Key Fields for MG 307 DDL‑3 Bearing
MG 307 DDL‑3 Bearing is ideal for industrial robots, where its high load capacity and smooth operation enhance precision. The compact size fits well in automated assembly lines.
