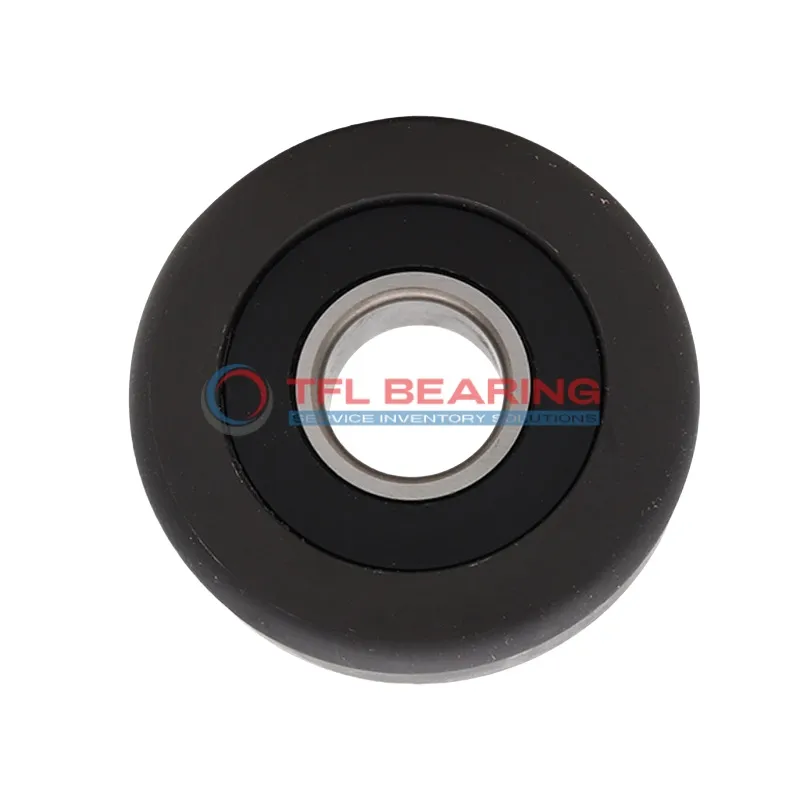

Mast Guide Bearings MG 306 DDL‑2

Mast Guide Bearings MG 306 DDL‑2

The MG 306 DDL‑2 mast guide bearing is a sturdy unit measuring 30mm in inner diameter and 75.7mm in outer diameter, with a width of 24mm. It’s built to handle dynamic loads up to 57,100 N and static loads up to 67,100 N.

Its compact design includes a 6mm radius, making it suitable for tight spaces. The bearing’s durable construction ensures reliable performance in demanding conditions.

Weighing just 0.59kg, it’s lightweight yet robust for its size. Ideal for mast guide applications or other heavy-duty machinery where precision and strength are key.

The bearing’s dimensions and load capacity make it a practical choice for industrial use. Its balanced design offers smooth operation and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 306 DDL‑2
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 75.70 mm
  • Inner Ring Width (b) 16 mm
  • Outer Ring Width (B) 24.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 57,100 N
  • Static Capacity (Cor.) 67,100 N
  • Weight 0.5897 Kg
Mast Guide Bearings MG 306 DDL‑2 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 306 DDL‑2 Bearing

MG 306 DDL‑2 Bearing is built with precise dimensions of 30.000 mm x 75.70 mm x 24.000 mm, ensuring a perfect fit for specific applications.
Its dynamic capacity of 57,100 N allows it to handle significant loads with ease.

The bearing’s static capacity reaches 67,100 N, providing reliable performance even under heavy stress.
With a weight of 0.5897 Kg, it balances durability and ease of handling.

The 6 mm radius design enhances load distribution, reducing wear and tear.
This makes MG 306 DDL‑2 Bearing suitable for demanding industrial environments.

Application

Industrial Uses of MG 306 DDL‑2 Bearing
MG 306 DDL‑2 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high dynamic capacity handles substantial loads. The robust design ensures longevity even in demanding environments.

What Makes MG 306 DDL‑2 Bearing a Preferred Choice?
With a static capacity of 67,100 N, MG 306 DDL‑2 Bearing is ideal for applications like mast guides in lifting systems, providing stability and reliability. Its precise dimensions make it easy to integrate into existing setups.

Built for Heavy-Duty Use: MG 306 DDL‑2 Bearing
MG 306 DDL‑2 Bearing excels in industrial settings, particularly in conveyor systems and material handling equipment. The 6 mm radius design reduces stress concentrations, enhancing durability.

Automotive vs Aerospace: Applications of MG 306 DDL‑2 Bearing
In automotive systems, MG 306 DDL‑2 Bearing supports components like steering columns, while in aerospace, it aids in landing gear mechanisms. Its lightweight yet strong construction suits both fields.

Perfect Fit for Automation: MG 306 DDL‑2 Bearing
MG 306 DDL‑2 Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and load capacity are critical. The stainless steel components resist wear in high-cycle operations.
