Mast Guide Bearings MG 306 DDCR

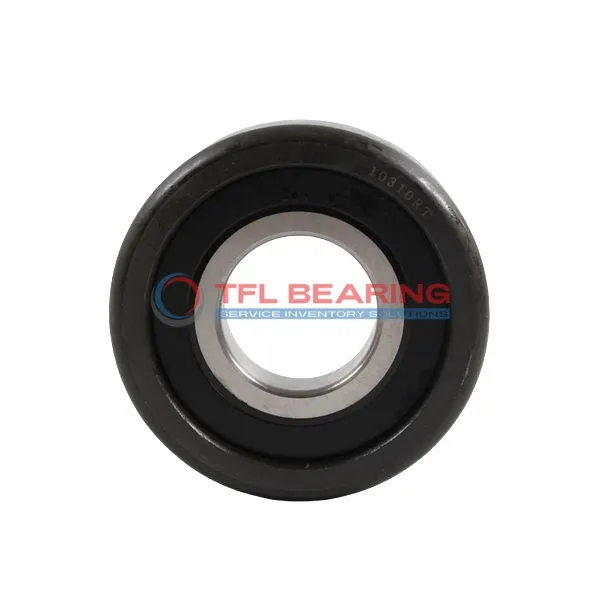

Mast Guide Bearings MG 306 DDCR

The MG 306 DDCR is a mast guide bearing measuring 30mm in inner diameter and 69mm in outer diameter, with a width of 25.4mm. Built for durability, it handles dynamic loads up to 62,700 N and static loads up to 81,536 N.

Its compact design includes a 1.5mm radius, making it suitable for tight spaces. The bearing’s robust construction ensures reliable performance in demanding conditions.

Weighing just under 1kg, it’s easy to handle while offering strong load support. Ideal for mast guidance systems or other applications requiring precise movement under heavy loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 306 DDCR
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 69.00 mm
  • Inner Ring Width (b) 25.4 mm
  • Outer Ring Width (B) 25.400 mm
  • Radius (R) 1.5 mm
  • Dynamic Capacity (Cr.) 62,700 N
  • Static Capacity (Cor.) 81,536 N
  • Weight 0.9979 Kg
Mast Guide Bearings MG 306 DDCR dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 306 DDCR Bearing

MG 306 DDCR Bearing is built with precise dimensions of 30.000 mm x 69.00 mm x 25.400 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 62,700 N and static capacity of 81,536 N make it suitable for heavy-duty operations.
The bearing’s design includes a 1.5 mm radius, enhancing its durability and load distribution.
Weighing just 0.9979 Kg, it offers a balance of strength and lightweight performance.

Application

Industrial Uses of MG 306 DDCR Bearing
MG 306 DDCR Bearing is commonly used in heavy machinery, such as construction equipment and industrial presses, where its high dynamic capacity handles substantial loads. The robust design ensures reliable performance in demanding environments.

Where Is MG 306 DDCR Bearing Used?
You’ll often find MG 306 DDCR Bearing in agricultural machinery, like harvesters and tractors, where its durability and load-bearing capacity are essential. Its precise dimensions make it a dependable choice for consistent operation.

Built for Heavy-Duty Use: MG 306 DDCR Bearing
MG 306 DDCR Bearing excels in applications like conveyor systems and material handling equipment, thanks to its high static capacity. The smooth operation and long lifespan make it a practical option for continuous use.

Automotive vs Aerospace: Applications of MG 306 DDCR Bearing
In automotive systems, MG 306 DDCR Bearing supports components like steering columns and transmissions, offering stability under load. For aerospace, its precision and reliability are valued in landing gear mechanisms.

Perfect Fit for Automation: MG 306 DDCR Bearing
MG 306 DDCR Bearing is ideal for robotic arms and automated assembly lines, where its high load capacity and smooth movement are crucial. The compact design fits seamlessly into tight spaces without compromising performance.
