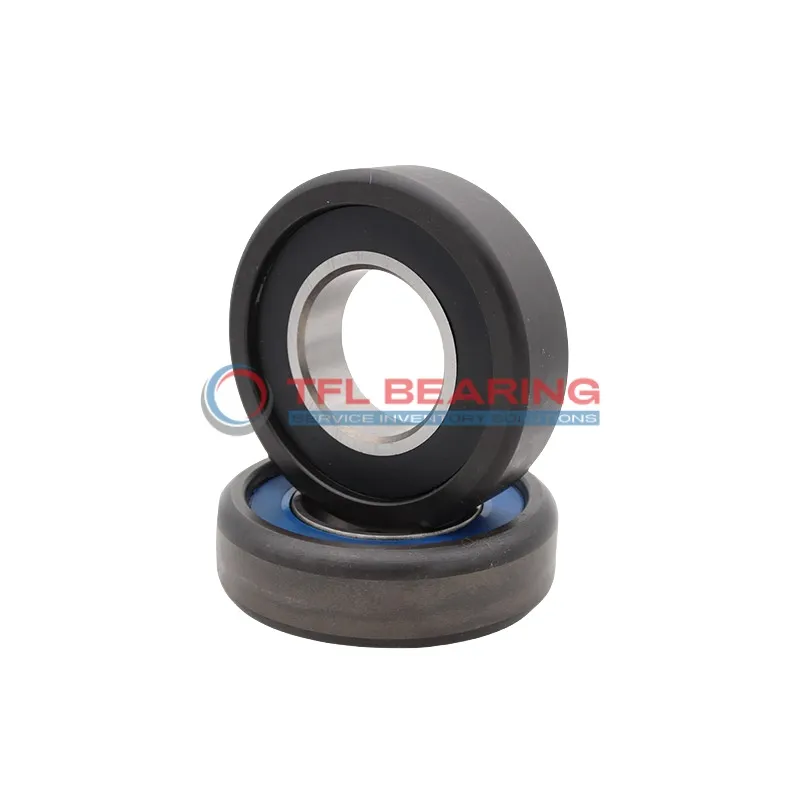

Mast Guide Bearings MG 305 T‑7

Mast Guide Bearings MG 305 T‑7

The MG 305 T-7 mast guide bearing is a compact unit measuring 25mm in inner diameter and 62mm in outer diameter, with a width of 18mm. Made from robust materials, it’s designed to handle dynamic loads up to 36,400 N and static loads up to 36,700 N.

Its sturdy construction ensures reliable performance in demanding conditions, while the 2mm radius provides smooth operation. The bearing’s design makes it easy to install and maintain.

Weighing just 0.3175 kg, it’s lightweight yet durable. Ideal for use in mast guide systems or other applications requiring precise movement and load handling. Its balanced dimensions and capacity make it a versatile choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 305 T‑7
  • Brand TFL & OEM
  • Inner Diameter (d) 25.000 mm
  • Outer Diameter (D) 62.00 mm
  • Inner Ring Width (b) 19.5 mm
  • Outer Ring Width (B) 18.000 mm
  • Radius (R) 2 mm
  • Dynamic Capacity (Cr.) 36,400 N
  • Static Capacity (Cor.) 36,700 N
  • Weight 0.3175 Kg
Mast Guide Bearings MG 305 T‑7 dimension drawing
Download DWG Download PDF

Features

How Does MG 305 T‑7 Bearing Handle Heavy Loads?

MG 305 T‑7 Bearing is built to manage significant loads with its dynamic capacity of 36,400 N.
Its robust design ensures reliable performance in demanding applications, making it a solid choice for heavy-duty use.
The bearing’s dimensions (25.000 mm x 62.00 mm x 18.000 mm) provide a compact yet sturdy solution for various mechanical setups.
With a static capacity of 36,700 N, it offers dependable stability under high-pressure conditions.

Application

Industrial Uses of MG 305 T‑7 Bearing
MG 305 T‑7 Bearing is commonly used in construction equipment, such as mast guides for forklifts, where its robust design handles heavy loads with ease. The 25mm bore size makes it a versatile fit for various machinery components.

In automation systems, MG 305 T‑7 Bearing ensures smooth linear motion in robotic arms and assembly lines. Its 62mm outer diameter provides stability, while the 18mm width saves space in compact setups.

For material handling applications, MG 305 T‑7 Bearing’s dynamic capacity of 36,400 N makes it reliable for conveyor systems. The 2mm radius edge reduces stress concentrations, prolonging service life in demanding environments.
