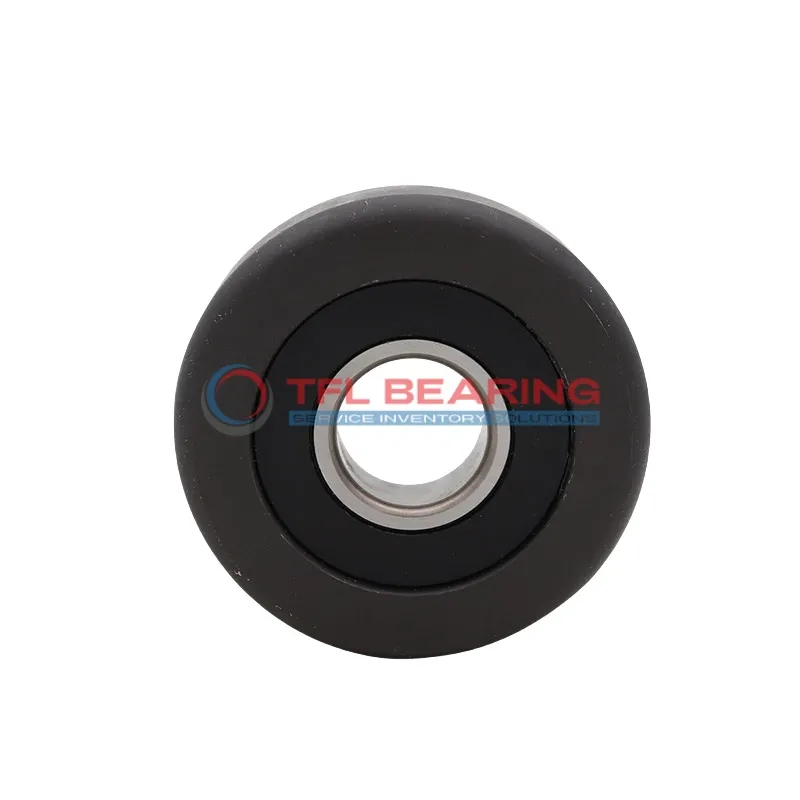

Mast Guide Bearings MG 305 DDH

Mast Guide Bearings MG 305 DDH

The MG 305 DDH is a mast guide bearing measuring 25mm in inner diameter and 72mm in outer diameter, with a width of 28mm. Its compact yet sturdy design makes it suitable for various industrial applications.

With a dynamic load capacity of 61,240 N and a static load capacity of 65,950 N, it handles heavy loads with ease. The bearing operates smoothly under demanding conditions, ensuring reliable performance.

The bearing features a 2mm radius, providing a secure fit and reducing stress on surrounding components. Its balanced weight of 0.6577 kg makes it easy to handle during installation.

Ideal for use in mast guide systems and other heavy machinery, this bearing offers durability and precision. It’s a practical choice for engineers and maintenance teams looking for long-lasting solutions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 305 DDH
  • Brand TFL & OEM
  • Inner Diameter (d) 25.000 mm
  • Outer Diameter (D) 72.00 mm
  • Inner Ring Width (b) 28 mm
  • Outer Ring Width (B) 28.000 mm
  • Radius (R) 2 mm
  • Dynamic Capacity (Cr.) 61,240 N
  • Static Capacity (Cor.) 65,950 N
  • Weight 0.6577 Kg
Mast Guide Bearings MG 305 DDH dimension drawing
Download DWG Download PDF

Features

Core Advantages of MG 305 DDH Bearing

MG 305 DDH Bearing is built with precise dimensions of 25.000 mm x 72.00 mm x 28.000 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 61,240 N allows it to handle significant loads with ease.
The balanced design and uniform width of 28 mm across both rings provide stability during operation.
With a static capacity of 65,950 N, it offers reliable performance in various conditions.

Application

Industrial Uses of MG 305 DDH Bearing
MG 305 DDH Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining smooth movement.

The bearing’s high dynamic capacity makes it suitable for repetitive lifting operations, ensuring reliability over time. The precise dimensions also allow for easy integration into existing machinery setups.

Where Is MG 305 DDH Bearing Used?
You’ll often find MG 305 DDH Bearing in agricultural machinery, such as combine harvesters and tractors. Its durability stands up to tough field conditions and constant vibration.

The bearing’s static capacity ensures stability when equipment is idle, preventing unnecessary wear. This makes it a practical choice for farmers and machinery operators.

Built for Heavy-Duty Use: MG 305 DDH Bearing
MG 305 DDH Bearing excels in mining equipment, where dust and debris are common challenges. Its sealed design helps protect against contaminants.

The bearing’s weight distribution balances heavy loads, reducing strain on other components. This makes it a reliable option for long shifts in demanding environments.

Automotive vs Aerospace: Applications of MG 305 DDH Bearing
In automotive settings, MG 305 DDH Bearing supports steering columns and suspension systems. Its precision ensures smooth handling and driver comfort.

For aerospace applications, the bearing’s lightweight yet strong construction meets strict industry standards. It’s often used in landing gear mechanisms.
