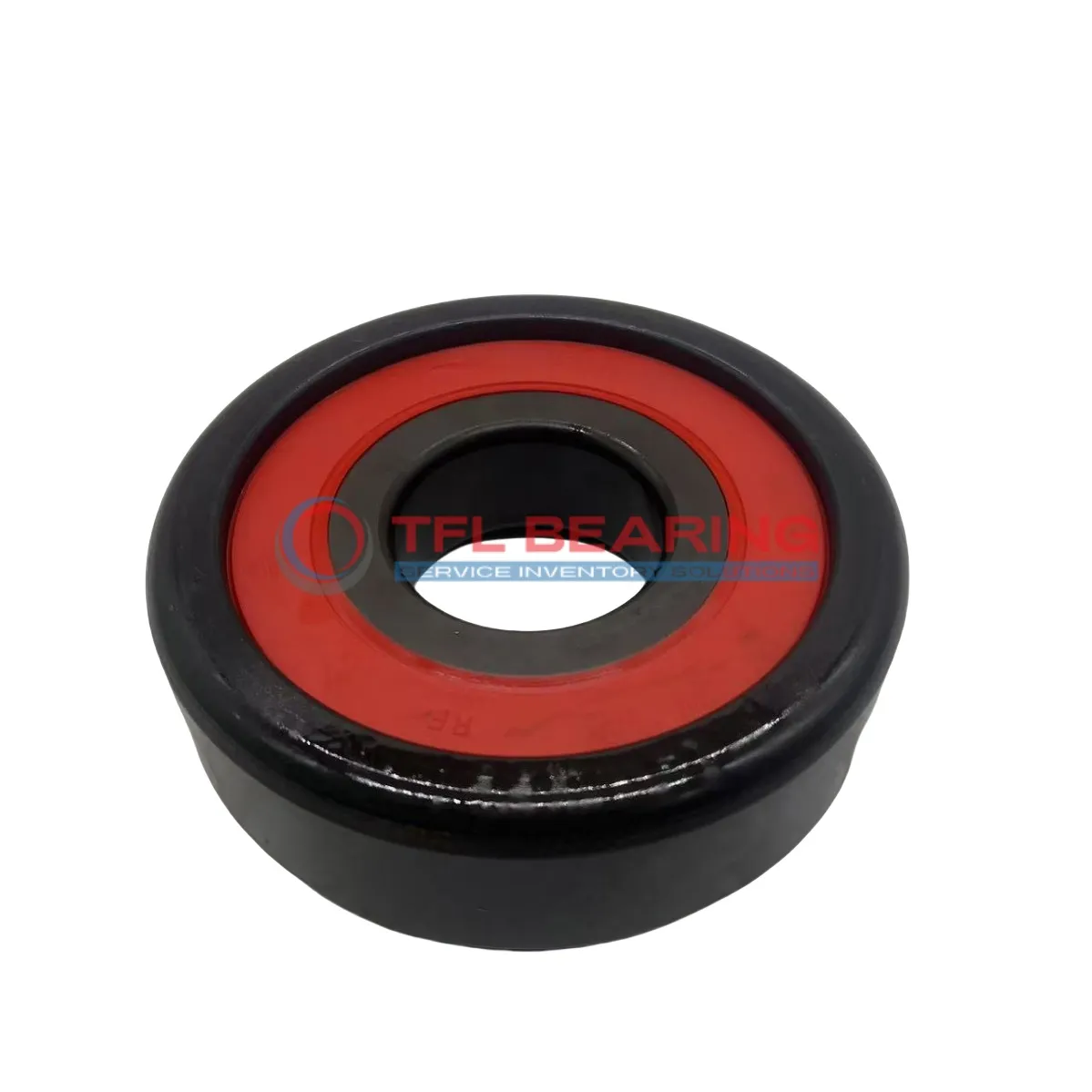

Mast Guide Bearings MG 209 DD‑R

Mast Guide Bearings MG 209 DD‑R

The MG 209 DD‑R is a mast guide bearing with a 45mm inner diameter and 101.32mm outer diameter, designed for heavy-duty use. Its compact width of 28.35mm makes it suitable for tight spaces while maintaining strength.

With a dynamic load capacity of 75,300 N and static load capacity of 89,200 N, it handles significant forces without compromising performance. The bearing’s durable construction ensures reliability in demanding conditions.

Featuring an 8mm radius, it fits smoothly into assemblies, reducing stress on adjacent components. The stainless steel build offers corrosion resistance for long-term use.

Ideal for industrial machinery, construction equipment, or marine applications where robust guidance is needed. Weighing 1.134kg, it balances sturdiness with manageable handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 209 DD‑R
  • Brand TFL & OEM
  • Inner Diameter (d) 45.000 mm
  • Outer Diameter (D) 101.32 mm
  • Inner Ring Width (b) 19 mm
  • Outer Ring Width (B) 28.350 mm
  • Radius (R) 8 mm
  • Dynamic Capacity (Cr.) 75,300 N
  • Static Capacity (Cor.) 89,200 N
  • Weight 1.134 Kg
Mast Guide Bearings MG 209 DD‑R dimension drawing
Download DWG Download PDF

Features

How Is MG 209 DD‑R Bearing Engineered for Reliability?

MG 209 DD‑R Bearing features a robust design with an inner diameter of 45.000 mm and an outer diameter of 101.32 mm, ensuring stability under heavy loads.
Its dynamic capacity of 75,300 N and static capacity of 89,200 N make it suitable for demanding applications.
The bearing’s inner ring width of 19 mm and outer ring width of 28.350 mm provide balanced support.
With a weight of 1.134 kg, it offers a sturdy yet manageable solution for various industrial needs.

Application

Industrial Uses of MG 209 DD‑R Bearing
MG 209 DD‑R Bearing is commonly used in heavy machinery, such as construction equipment and industrial presses, where its high dynamic capacity handles significant loads. The robust design ensures longevity even in demanding environments.

Where Is MG 209 DD‑R Bearing Used?
You’ll often find MG 209 DD‑R Bearing in agricultural machinery, like harvesters and tractors, where its static capacity supports steady performance. Its precise dimensions make it a reliable fit for various mechanical systems.

Built for Heavy-Duty Use: MG 209 DD‑R Bearing
MG 209 DD‑R Bearing excels in applications like mining equipment, where durability and load-bearing capacity are critical. The stainless steel construction adds resistance to corrosion in harsh conditions.

Automotive vs Aerospace: Applications of MG 209 DD‑R Bearing
In automotive systems, MG 209 DD‑R Bearing is used in gearboxes and drivetrains, offering smooth operation under high stress. For aerospace, its lightweight yet sturdy design suits auxiliary aircraft components.

Essential Roles of MG 209 DD‑R Bearing
MG 209 DD‑R Bearing plays a key role in wind turbines, supporting rotor shafts with its high load capacity. The precise tolerances ensure minimal friction, enhancing energy efficiency.
