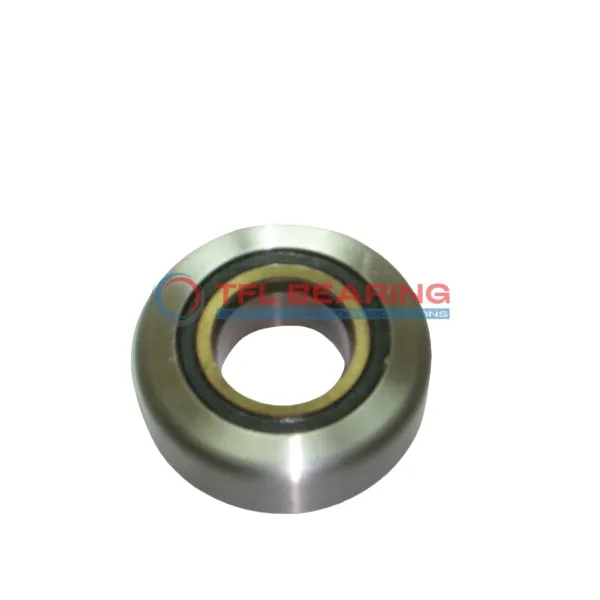

Mast Guide Bearings MG 207 HH‑1

Mast Guide Bearings MG 207 HH‑1

The MG 207 HH‑1 mast guide bearing is a sturdy unit measuring 35mm in inner diameter and 126.3mm in outer diameter, with a width of 30.15mm. Built to handle dynamic loads up to 30,530 N, it’s designed for demanding applications.

Its chamfered edges ensure smooth installation, while the robust construction offers reliable performance under heavy use. The bearing weighs 2.0865 kg, balancing strength and manageability.

Ideal for mast guidance systems or industrial machinery, this model provides steady support where precision and durability are key. Its interchangeable design makes it a practical choice for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 207 HH‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 126.30 mm
  • Inner Ring Width (b) 20 mm
  • Outer Ring Width (B) 30.150 mm
  • Radius (R) chamfer
  • Dynamic Capacity (Cr.) 30,530 N
  • Static Capacity (Cor.) 25,490 N
  • Weight 2.0865 Kg
Mast Guide Bearings MG 207 HH‑1 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 207 HH‑1 Bearing

MG 207 HH‑1 Bearing is built with precise dimensions of 35.000 mm x 126.30 mm x 30.150 mm, ensuring a perfect fit for guide applications.
Its dynamic capacity of 30,530 N allows it to handle significant loads with ease.
The bearing’s static capacity of 25,490 N ensures stability even under heavy pressure.
Weighing just 2.0865 Kg, it offers a balance of strength and lightweight design.

Application

Industrial Uses of MG 207 HH‑1 Bearing
MG 207 HH‑1 Bearing is commonly used in heavy machinery like cranes and construction equipment, where its high dynamic capacity handles significant radial loads. The robust design ensures reliable performance in demanding environments.

What Makes MG 207 HH‑1 Bearing a Preferred Choice?
With its precise dimensions and durable construction, MG 207 HH‑1 Bearing is ideal for industrial automation systems, such as conveyor belts and robotic arms. The chamfered edges reduce stress concentrations, extending service life.

Built for Heavy-Duty Use: MG 207 HH‑1 Bearing
In automotive applications, MG 207 HH‑1 Bearing supports components like steering columns and suspension systems, offering stability under varying loads. Its static capacity makes it suitable for both moving and stationary parts.

Medical vs Industrial: Where MG 207 HH‑1 Bearing Excels
While MG 207 HH‑1 Bearing isn’t typically used in medical devices, it shines in industrial settings like printing presses and packaging machines. The stainless steel components resist corrosion, ensuring longevity in harsh conditions.

Where to Use MG 207 HH‑1 Bearing
MG 207 HH‑1 Bearing fits well in agricultural machinery, such as tractors and harvesters, where its weight and strength handle rough terrain. The balanced design minimizes vibration, improving overall efficiency.
