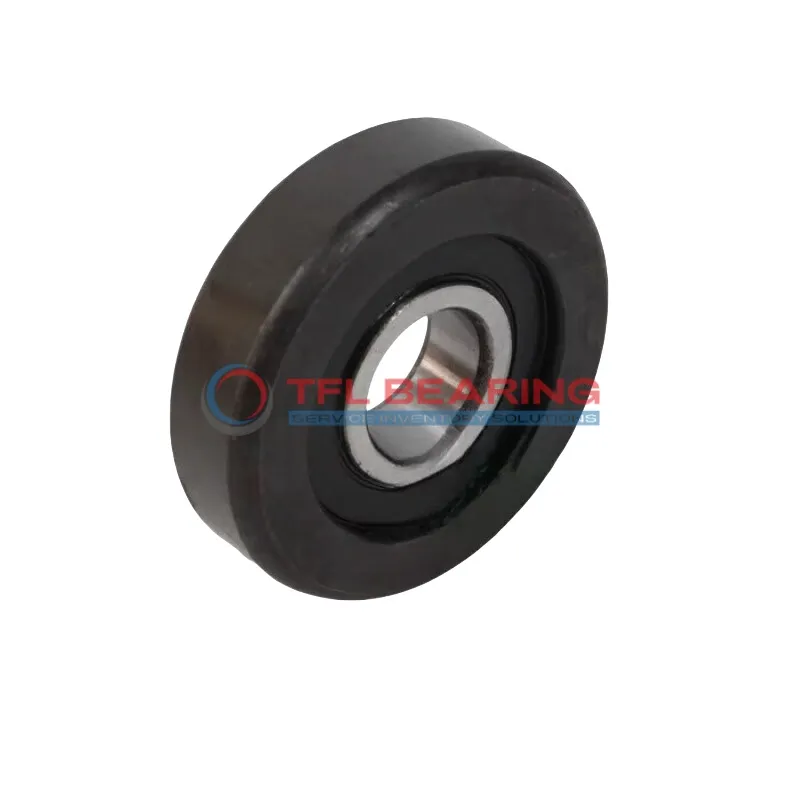

Mast Guide Bearings MG 207 FFA

Mast Guide Bearings MG 207 FFA

The MG 207 FFA mast guide bearing is a sturdy unit measuring 35mm in inner diameter and 81.86mm in outer diameter, with a width of 27.1mm. Made for heavy-duty use, it supports dynamic loads up to 25,700 N and static loads of 15,420 N.

Its compact design features a 3mm radius for smooth operation, while the chrome steel construction ensures durability. The bearing weighs just 0.59kg, making it easy to handle during installation.

This model is ideal for mast guidance systems in construction equipment or industrial machinery. Its balanced load capacity and robust build make it a reliable choice for demanding applications.

The simple design allows for easy maintenance, and its standard dimensions ensure compatibility with various setups. A practical option for both new installations and replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 207 FFA
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 81.86 mm
  • Inner Ring Width (b) 17 mm
  • Outer Ring Width (B) 27.100 mm
  • Radius (R) 3 mm
  • Dynamic Capacity (Cr.) 25,700 N
  • Static Capacity (Cor.) 15,420 N
  • Weight 0.5897 Kg
Mast Guide Bearings MG 207 FFA dimension drawing
Download DWG Download PDF

Features

How Is MG 207 FFA Bearing Engineered for Reliability?

MG 207 FFA Bearing features a robust design with an inner diameter of 35.000 mm and an outer diameter of 81.86 mm, ensuring stability in various applications.
Its dynamic capacity of 25,700 N allows it to handle significant loads while maintaining performance.
The bearing’s inner ring width of 17 mm and outer ring width of 27.100 mm provide a balanced structure for smooth operation.
With a static capacity of 15,420 N, MG 207 FFA Bearing offers reliable support even under heavy-duty conditions.

Application

Industrial Uses of MG 207 FFA Bearing
MG 207 FFA Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining stability.

In automotive applications, MG 207 FFA Bearing supports steering columns and suspension components. The high dynamic capacity ensures reliable performance even under constant stress.

For automation systems, MG 207 FFA Bearing fits well in robotic arms and conveyor guides. The precise dimensions and weight make it suitable for repetitive, high-precision movements.

Where Is MG 207 FFA Bearing Used?
MG 207 FFA Bearing is ideal for industrial fans and blowers, where its static capacity prevents deformation under pressure. The smooth operation reduces noise and vibration.

Built for Heavy-Duty Use: MG 207 FFA Bearing
MG 207 FFA Bearing works well in agricultural machinery, such as harvesters and tractors. Its durability withstands harsh conditions like dust and moisture.

Light-Duty vs Heavy-Duty: Best Uses for MG 207 FFA Bearing
In light-duty applications, MG 207 FFA Bearing is found in office machinery like printers. For heavy-duty tasks, it excels in mining equipment, thanks to its high load capacity.
