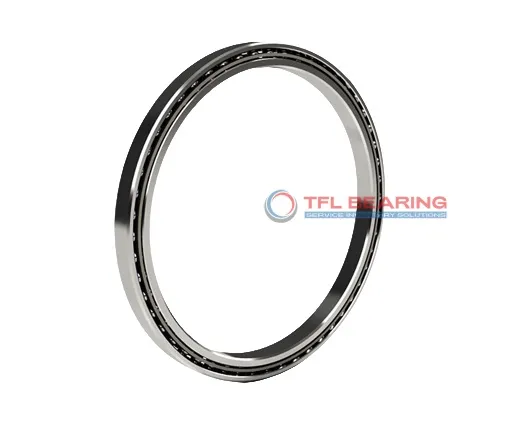

Constant Section (CS) Bearings SB050XP0

Constant Section (CS) Bearings SB050XP0

The SB050XP0 is a slim stainless steel bearing measuring 5″ in bore and 5.625″ in outer diameter, with a compact width of just 0.3125″. Made from durable stainless steel, it’s designed for four-point contact loads and handles radial loads up to 1236 lbf.

Its open design and brass cage ensure smooth operation, while the thin section construction saves space in tight applications. The bearing can handle temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications like robotics or precision machinery where space and weight (0.38 lbs) are critical factors.

Compliant with RoHS standards, it’s a practical choice for engineers needing a lightweight yet sturdy bearing. The ABEC-1 tolerance ensures consistent performance without overcomplicating the design.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SB050XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"- 0"
  • Outer Dia 5.625"
  • Outer Dia Tolerance -0.0008"- 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.231"
  • Internal Diameter On Outer Ring (Small Side Face) 5.393"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 1236 lbf
  • Static Radial Load 2150 lbf
  • Static Thrust Load 5380 lbf
  • Static Moment 5720 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 2 lbf
  • Dynamic Thrust Load 1980 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.38 lbs
  • price（$） 233.93
Constant Section (CS) Bearings SB050XP0 dimension drawing
Download DWG Download PDF

Features

How Does SB050XP0 Bearing Handle Heavy Loads?

SB050XP0 Bearing is crafted with stainless steel rings and balls, offering strong resistance to heavy loads.
Its static thrust load capacity reaches 5380 lbf, ensuring reliable performance in demanding applications.

The brass cage maintains ball alignment, reducing wear and extending service life.
With a temperature range of -30°C to 110°C, it performs well in various conditions.

SB050XP0 Bearing’s thin-section design makes it ideal for space-constrained applications.
Its ABEC-1 tolerance ensures smooth operation without compromising durability.

Application

Industrial Uses of SB050XP0 Bearing
SB050XP0 Bearing is commonly used in robotics and automation systems, where its thin section design saves space without compromising load capacity. The stainless steel construction ensures durability in environments where corrosion resistance is key.

Where Is SB050XP0 Bearing Used?
You’ll often find SB050XP0 Bearing in medical imaging devices, where its precision and smooth operation are essential. The brass cage adds stability, making it reliable for high-precision applications.

Built for Heavy-Duty Use: SB050XP0 Bearing
SB050XP0 Bearing handles heavy loads in industrial machinery like conveyor systems, thanks to its four-point contact design. Its inch sizing makes it a versatile choice for various equipment.

Automotive vs Aerospace: Applications of SB050XP0 Bearing
In automotive systems, SB050XP0 Bearing supports steering mechanisms, offering smooth performance under thrust loads. For aerospace, its lightweight design and reliability make it suitable for control systems.

Perfect Fit for Automation: SB050XP0 Bearing
SB050XP0 Bearing works well in 3D printers and robotic arms, where its thin profile and precision are advantageous. The open seal type allows for easy maintenance in high-use scenarios.
