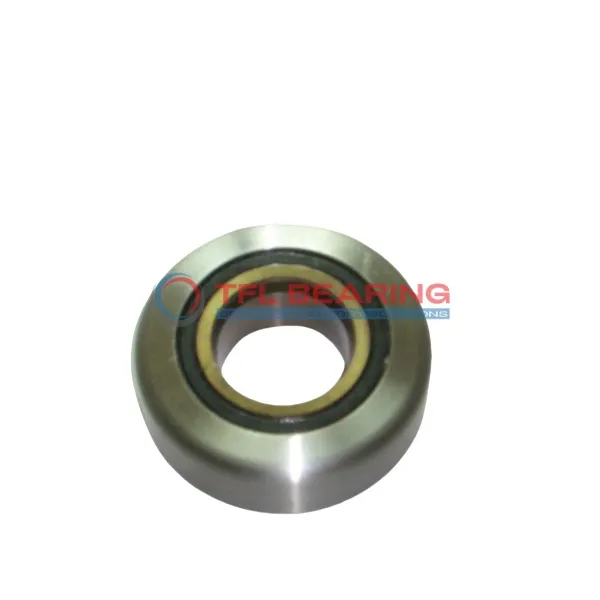

Mast Guide Bearings MG 206 FFZA

Mast Guide Bearings MG 206 FFZA

The MG 206 FFZA is a mast guide bearing with a 30mm inner diameter and 80.49mm outer diameter, designed for sturdy performance. Its compact width of 28.5mm makes it suitable for tight spaces, while the 4.826mm radius ensures smooth movement.

With a dynamic load capacity of 27,360N and static load capacity of 18,860N, it handles heavy loads with ease. The bearing’s durable construction ensures reliable operation in demanding conditions.

Weighing just 0.7484kg, it’s lightweight yet robust. Ideal for applications like construction equipment or industrial machinery where precise guidance is needed. Its design balances strength and efficiency for long-term use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 206 FFZA
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 80.49 mm
  • Inner Ring Width (b) 16.58 mm
  • Outer Ring Width (B) 28.500 mm
  • Radius (R) 4.826 mm
  • Dynamic Capacity (Cr.) 27,360 N
  • Static Capacity (Cor.) 18,860 N
  • Weight 0.7484 Kg
Mast Guide Bearings MG 206 FFZA dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 206 FFZA Bearing

MG 206 FFZA Bearing is built to handle dynamic loads up to 27,360 N, making it suitable for demanding applications.
Its static capacity of 18,860 N ensures stability even under heavy loads.

The compact design with dimensions of 30.000 mm x 80.49 mm x 28.500 mm allows for easy integration into various systems.
With a weight of 0.7484 Kg, it balances strength and portability.

The smooth radius of 4.826 mm reduces stress concentration, enhancing durability.
Its precise inner and outer ring widths ensure reliable alignment during operation.

Application

Industrial Uses of MG 206 FFZA Bearing
MG 206 FFZA Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles significant radial loads. The precise dimensions ensure a snug fit in complex assemblies.

What Makes MG 206 FFZA Bearing a Preferred Choice?
With its high dynamic capacity, MG 206 FFZA Bearing excels in applications like conveyor systems and material handling equipment. The durable construction minimises wear, even in demanding environments.

Built for Heavy-Duty Use: MG 206 FFZA Bearing
MG 206 FFZA Bearing is ideal for industrial fans and pumps, thanks to its static load capacity and resistance to harsh conditions. The smooth operation reduces vibration, enhancing overall efficiency.

Automotive vs Aerospace: Applications of MG 206 FFZA Bearing
In automotive settings, MG 206 FFZA Bearing supports components like steering systems, while in aerospace, it aids in auxiliary equipment. Its lightweight design balances performance and durability.
