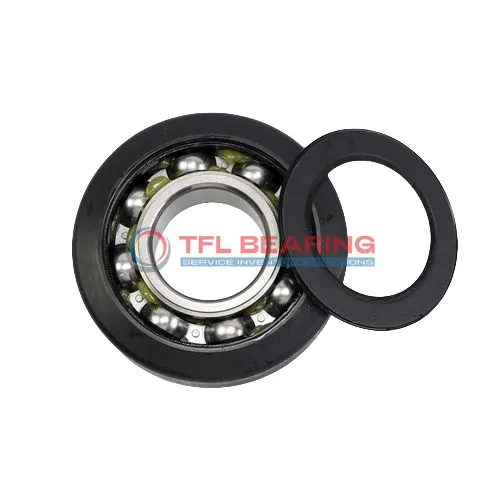

Mast Guide Bearings MG 206 FFZ

Mast Guide Bearings MG 206 FFZ

The MG 206 FFZ is a mast guide bearing measuring 30mm in inner diameter and 79.63mm in outer diameter, with a compact width of 28.58mm. Built for durability, it handles dynamic loads up to 19,460 N and static loads up to 11,310 N.

Its sturdy design includes a 4.4mm radius, providing smooth operation under stress. The bearing’s chrome steel construction ensures reliable performance in demanding conditions.

Weighing just 0.7257kg, it’s lightweight yet robust. Ideal for mast guidance systems or industrial machinery where precision and load capacity are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 206 FFZ
  • Brand TFL & OEM
  • Inner Diameter (d) 30.000 mm
  • Outer Diameter (D) 79.63 mm
  • Inner Ring Width (b) 16.58 mm
  • Outer Ring Width (B) 28.580 mm
  • Radius (R) 4.4 mm
  • Dynamic Capacity (Cr.) 19,460 N
  • Static Capacity (Cor.) 11,310 N
  • Weight 0.7257 Kg
Mast Guide Bearings MG 206 FFZ dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 206 FFZ Bearing

MG 206 FFZ Bearing is built with precise dimensions of 30.000 mm x 79.63 mm x 28.580 mm, ensuring a perfect fit for guide applications.
Its dynamic capacity of 19,460 N allows it to handle significant loads with ease.

The bearing’s static capacity of 11,310 N ensures stability even under heavy pressure.
With a weight of 0.7257 Kg, it offers a balance between strength and portability.

The 4.4 mm radius design enhances durability and reduces stress concentrations.
MG 206 FFZ Bearing is ideal for applications requiring reliable performance and long service life.

Application

Industrial Uses of MG 206 FFZ Bearing
MG 206 FFZ Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads. The 30mm bore size makes it suitable for various shaft configurations.

In automotive applications, MG 206 FFZ Bearing fits well in steering systems and suspension components, offering reliable performance under stress. Its 79.63mm outer diameter ensures compatibility with standard housings.

For automation systems, MG 206 FFZ Bearing provides smooth operation in robotic arms and conveyor belts. The 28.580mm width balances space efficiency with load-bearing capacity.

Where Is MG 206 FFZ Bearing Used?
MG 206 FFZ Bearing is ideal for wind turbines, where its dynamic capacity of 19,460 N supports consistent rotation. The stainless steel construction resists corrosion in outdoor environments.

In printing machinery, MG 206 FFZ Bearing ensures precise paper handling due to its tight tolerances. The 4.4mm radius allows for easy installation in compact designs.

Built for Heavy-Duty Use: MG 206 FFZ Bearing
MG 206 FFZ Bearing excels in mining equipment, enduring harsh conditions with its high static capacity of 11,310 N. The 0.7257 Kg weight makes it manageable for maintenance.

For packaging machines, MG 206 FFZ Bearing’s durability reduces downtime in high-speed operations. The 16.58mm inner ring width provides stability under lateral forces.
