M241510 Single Cups (Imperial)

M241510 Single Cups (Imperial)

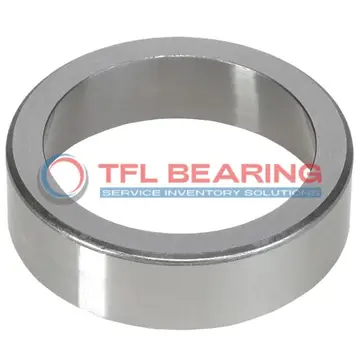

The M241510 is a single cup tapered roller bearing with an 11.5-inch outer diameter and a width of 1.8125 inches, crafted from durable chrome steel. It fits well in imperial-sized applications and operates smoothly in temperatures from -30°C to 110°C.

Its standard cup design ensures easy installation and compatibility with Timken bearings, making it a practical choice for replacements. The ABEC-1 rating provides reliable precision for general industrial use.

This model is part of the M241500 series, known for its robust construction. Ideal for machinery requiring tapered roller bearings, such as heavy-duty equipment or automotive systems.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial needs. The cup’s design allows for efficient load handling and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M241510
  • Brand TFL
  • Interchangeable Timken
  • Size 10.71" x 11.5" x 1.8125"
  • Outer Dia 11.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 11.02"
  • Cup Backface Backing Diameter 10.71"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number M241542-M241510 , M241543-M241510 , M241545-M241510 , M241547-M241510 , M241547A-M241510 , M241547V-M241510 , M241549-M241510
  • Cups Type Standard
  • Series M241500
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is M241510 Bearing Engineered for Reliability?

M241510 Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.
The standard cup type and ABEC-1 rating provide consistent precision for industrial use.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

Application

Industrial Uses of M241510 Bearing
M241510 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered design handles radial and axial loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is M241510 Bearing Used?
You’ll often find M241510 Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a good fit for older or non-metric systems.

Built for Heavy-Duty Use: M241510 Bearing
M241510 Bearing works well in industrial fans and conveyor systems, thanks to its robust design. The standard cup type simplifies replacement and maintenance.

Automotive vs Aerospace: Applications of M241510 Bearing
In automotive settings, M241510 Bearing supports axle assemblies, while in aerospace, it’s used in auxiliary systems. The ABEC-1 rating ensures reliable performance for general applications.

Perfect Fit for Automation: M241510 Bearing
M241510 Bearing is suitable for automated production lines, where consistent load handling is key. Its compatibility with Timken models adds to its versatility.
