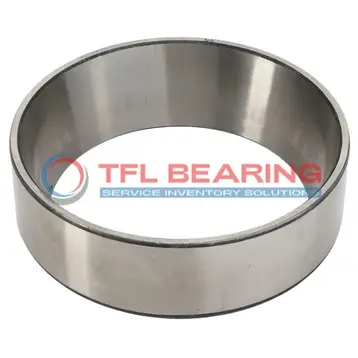

L435010 Single Cups (Imperial)

L435010 Single Cups (Imperial)

The L435010 is a single cup bearing with imperial measurements, sized at 8.31″ x 8.75″ x 0.75″. Made from chrome steel, it offers durability and reliable performance in various conditions.

Its tapered roller design ensures smooth operation, suitable for handling moderate loads. The cup’s standard series makes it a versatile choice for many applications.

With an ABEC-1 rating, it provides good precision for general industrial use. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical option for replacements. Ideal for machinery where tapered roller bearings are needed, such as in automotive or construction equipment.

Compliant with RoHS and REACH standards, it ensures safe and environmentally friendly use. Its robust construction and standard design make it a dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L435010
  • Brand TFL
  • Interchangeable Timken
  • Size 8.31" x 8.75" x 0.75"
  • Outer Dia 8.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 8.50"
  • Cup Backface Backing Diameter 8.31"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number L435049-L435010
  • Cups Type Standard
  • Series L435000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose L435010 for Precision Tasks?

L435010 is crafted from chrome steel, offering durability and resistance to wear in tapered roller bearing applications.
Its precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit, enhancing performance.

The standard cup design simplifies installation, making it compatible with Timken equivalents.
With a temperature range of -30° to 110°C, L435010 performs reliably in varied conditions.

The ABEC-1 rating confirms its consistent quality for general industrial use.
Its dimensions (8.31″ x 8.75″ x 0.75″) provide versatility in different machinery setups.

Application

Industrial Uses of L435010 Bearing
L435010 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is L435010 Bearing Used?
You’ll often find L435010 Bearing in conveyor systems and industrial gearboxes, thanks to its reliable performance and compatibility with Timken equivalents. Its inch sizing makes it a go-to choice for machinery using imperial measurements.

Built for Heavy-Duty Use: L435010 Bearing
L435010 Bearing excels in applications like mining equipment and large-scale manufacturing tools, where its robust design withstands constant stress. The standard cup type simplifies installation and maintenance.

Automotive vs Aerospace: Applications of L435010 Bearing
In automotive settings, L435010 Bearing supports wheel hubs and drivetrains, while in aerospace, it’s used in auxiliary systems requiring precise load management. Its temperature range suits both environments well.

Essential Roles of L435010 Bearing
L435010 Bearing plays a key part in railway and marine applications, where its tapered rollers manage heavy loads and vibrations. The ABEC-1 rating ensures consistent performance without over-engineering.
